Need to order a harness for my lows..

Do i want the "generic" H11 relay harness, or the Mopar specific?

And i'm assuming the Mopar specific one means i dont need error code elims?

Low Beam: H8/H9/H11 - Relay Harnesses from The Retrofit Source Inc

Mopar Specific Relay Wire Harness - Relay Harnesses from The Retrofit Source Inc



[Westwind1124a]

I'm not sure... But you can get the same one through Jeremy at RetroShop for the same price(I think). He can answer any of those questions



[DatacomGuy]

Yes, i'd rather support a forum partner..



[0212353]

They actually don't have the ones that you need on the site. LOL

The H11s on the 2013s require more than just a capacitor. They require resistors as well.

I do have these on my site, and my pricing includes shipping

Mopar Specific HID Relay Harness

You'll want the H11 13+ for yours



[DatacomGuy]

Order placed. Thank you sir!



[0212353]

rockin

thx!



[DatacomGuy]

Got the harness. YAY!

Anyone know how these parts are installed?



[0212353]

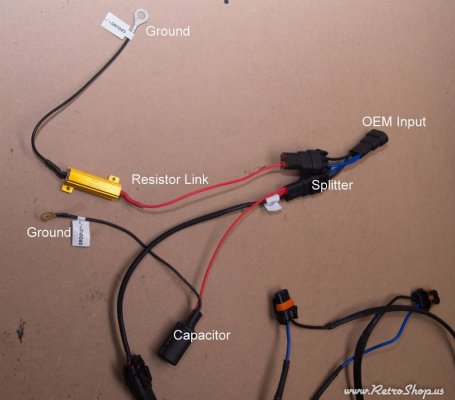

I missed a pic of the full 2013 harness setup, so bear with me here.....the 2013 basically uses a 09-12 quad light harness, with a splitter and resistor link added in. So.......lets start with the 09+ Quad harness here:



add in the closeup shot of where the resistor and splitter stuff is:

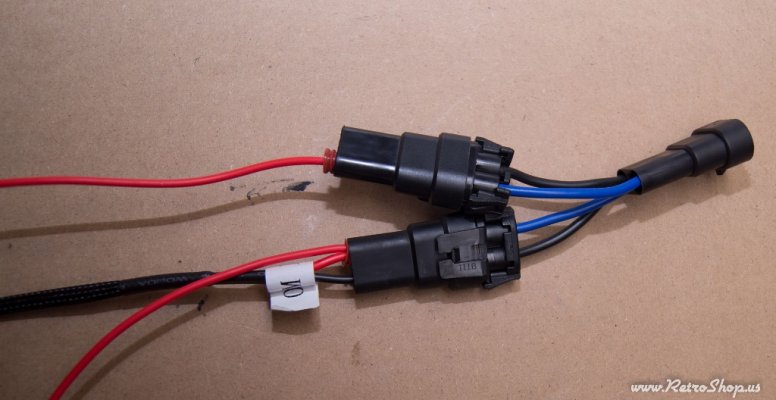

close up of the splitter



So.....basically.......what you have here? From the back of the headlight when we put in the grommet with the wires coming out, you have 3 connectors. 1 has 2 wires going to it. That plug on the DRIVERS side goes to the splitter. That is your "input". Mount the gold resistors ON METAL, they will get REALLY freakin' hot. They will melt plastic FAST. Ground the other end. Ground the capacitor link, and the ballast. Yes, they can all go to the same ground, and no - I don't recommend using a factory ground. Make your own! Its easy........drill a hole, sand the paint off, self taping screw to ground it all.

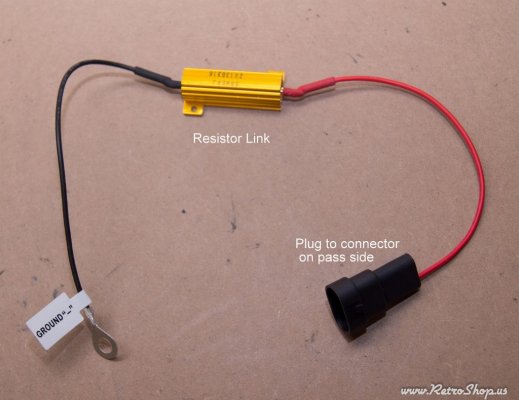

On the PASSENGER side of the 2013 headlights, remember we have that same plug coming out (the one with 2 wires). This gets plugged in there:



And ground it.



[DatacomGuy]

Awesome. What connector on the pass side? Pass OEM input conn?



[0212353]

your existing HID bulbs should have a connection just like the driver's. so, a plug there - and out to the resistor.



[DatacomGuy]

Maybe im brain dead.. or maybe just really tired.. But not seeing it. So forgive my stupidity..

Here i have everything setup. Driver side on the right. Pass on the left. I only have one connection, yet i have two plugs. So am i missing another y?



[0212353]

you have them on the truck, your current HID bulbs.

They have wires next to them.



that one next to the HID wires, thats what plugs to the connections on the harnss. plug the other side to the white plug inside the light (H11 plug)



[DatacomGuy]

I'm clear now..whew! Thanks Jeremy!

Do I still need my error code elims.. Or can I ditch those?



[0212353]

np!

no, those error things, shouldn't need them anymore bud



[DatacomGuy]

Last question.. THe plug connection on the driver side on the bulb..where d oes it go?



[0212353]

splitter.



[DatacomGuy]

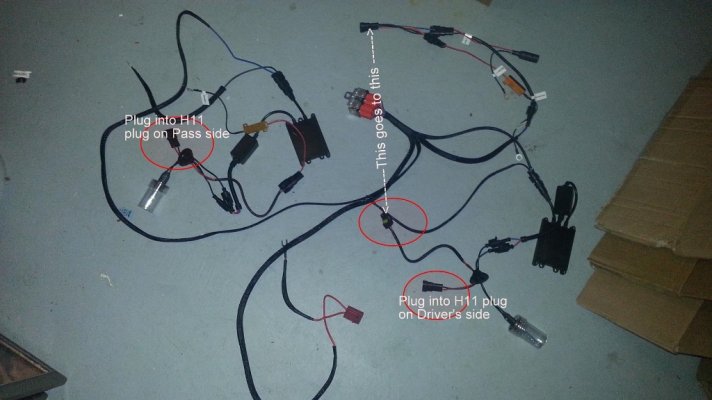

These are the connections im still not clear on..



[0212353]

Where you plug in the halogen bulb inside the light - thats the white H11 plug I am referencing in the pic.
