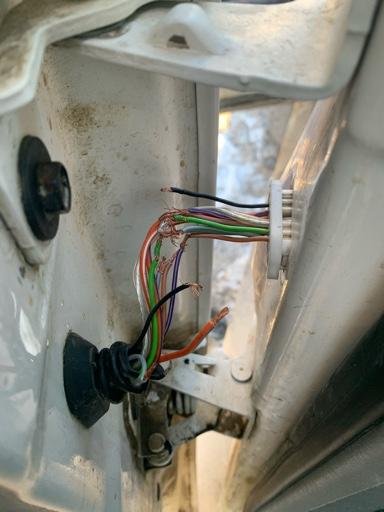

Anyone know what each wire is supposed to do. Can’t find the info i want from google. The other side was the same. I repaired all wires and now about to do this side. ‘08 quad cab.



Sent from my iPhone using Tapatalk

OP
OP
IJW84

IJW84

Senior Member
Joined
Feb 19, 2016
Posts
106
Reaction score
7
Ram Year
2008
Engine
Hemi 5.7
The orange ones r for the window controls, the black, brown, green, and purple r for the door locks and grey ones for speaker.
There u go the guy who was asking


Sent from my iPhone using Tapatalk

OP
OP
IJW84

IJW84

Senior Member
Joined
Feb 19, 2016
Posts
106
Reaction score
7
Ram Year
2008
Engine
Hemi 5.7
The orange ones r for the window controls, the black, brown, green, and purple r for the door locks and grey ones for speaker.
There u go the guy who was asking


Sent from my iPhone using Tapatalk

Thanks


Sent from my iPhone using Tapatalk


Mpgrimm2

Senior Member
Supporting Vendor Navy Badge
Joined
Mar 30, 2014
Posts
6,569
Reaction score
5,156
Location
SC
Ram Year
2022 Ram 1500 (5th Gen)
Engine
5.7L
Google
DCCtools connector

And enter your truck info. Then search for 'door' in the search box.
http://connectors.dcctools.com/results.htm

And get a subscription to AllData for your truck to identify the connector name/schematic.

This first one may be it...c4328a5b87721c7dedaabdafe6a3d09a.jpgb4ab9ccb959ef8689d02501c212b8aba.jpg
