Light bar help

[2013sport]

Hello
I finally got my 42 inch bar mounted in the bumper. I got a wiring harness with the bar and it comes with a cheap switch with only 3 pins.

My question is I want a illuminated rocker switch but what I see is they have 5 pins.
I'm not wiring inclined whatsoever, so I Ned some help how to wire the switch up?

Thanks for the help.



[SilverStreak88]

You want a switch like this?

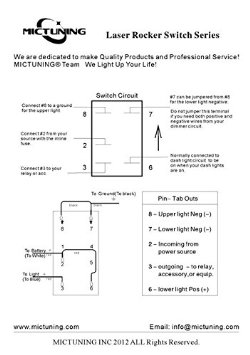

Here's the diagram



[2013sport]

Yeah just like that. I just need wiring for dummies to hook it up.



[SilverStreak88]

https://www.youtube.com/watch?v=yAnjVFjuJUc

Here's a video to help.

Do you want the light to come on only when the key is "ON" or be able to turn it on regardless?

You said that you have the relay harness, is it mounted up?



[2013sport]

Yeah prefer if it only could be turned on when key is on.
Yeah the harness has an in line fuse then to the relay then a pig tail to the switch in the cab.
I have all hooked up I just have everything zip tied under the hood I haven't permanently mounted the relay yet. I'm working afternoons this week so once I get time I'm going to mount it and route everything properly.

Thanks for the link once I have time I'll take another crack at it.



[SilverStreak88]

No problem, get you a good test light so you can find "hot" wires. Depending on where you mount the switch you can (using wire taps) get your (switchable hot), (illumination hot) and ground all in the same place so you're not stringing wires everywhere.
