Under the hood lamp plug

[R.L.K.]

Is this the under the hood lamp plug in location ? Thanks in advance !



[shmedley]

Yes that's the plug. There is a dummy plug in it to keep crap out of it.
Did the light install in my 14, quick and super easy



[darthdzl]

Yes that's the plug. There is a dummy plug in it to keep crap out of it.
Did the light install in my 14, quick and super easy

Seconded on all counts.



[R.L.K.]

Works like a champ ! Crazy they don't come with this ..



[Indaram]

What type of bulb goes in there? I'm going to get one and want to get an LED to go along with it. Thanks!



[R.L.K.]

Unused harness connectors? ? Can anyone tell me what they are used for ?

PLEASE SKIP TO POST #3 BELOW FOR PHOTOS OF UNUSED CONNECTORS IN QUESTION. .............

I just posted this same title above in "Tech " info with lots of pictures and questions about the unused connectors I found while looking behind the radio bezel in preparation for an RA1 3.0 TO THE RA2 5.0 Upgrade , i know this is a very basic upgrade but audio & electronics is not my strong point, don't get me wrong I can strip , solder , crimp tie wrap heat shrink and run wires with guidance BUT I'm the mechanical type all the way !.

I'm thinking I should've posted my Qs HERE instead , I'd really appreciate anyone that can go to Tech info and and spred you knowledge and answer some of my Qs , I sure would like to know what my truck is prewired for ! Thanks in advance for any response !!



[R.L.K.]

I hope you guys can find my original post in tech information, I sure can't , it's not on my subscribed list anymore either , it had like 5 or 6 pictures with detailed Qs for each and other info . I think it got Deleted or some thing ???



[R.L.K.]

I never could find my original post in Tech info so I'll post the pics here , any explanation would be greatly appreciated ! I sure would like to know what my truck is wired for ...

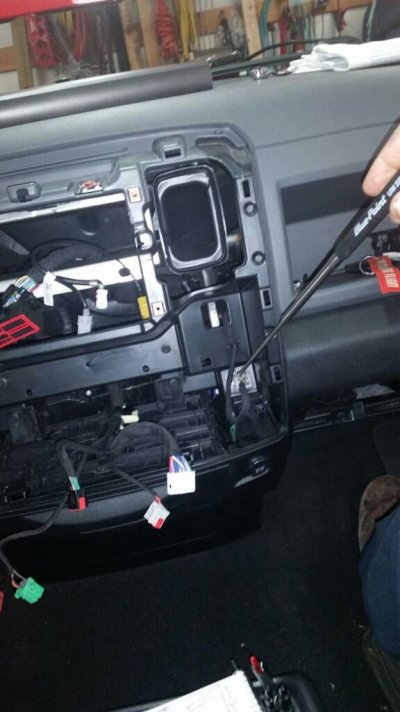

Photo #1

This is a 2.wire connector unsecured , just laying under the lower glove box ?? Maybe glove box light??

Photo #2 &3

This connector is secured in a dummy plug , has 7 wires , located behind the bezel on lower R/S .???

Photo #4 & 5 &6

This connector is secured in a dummy plug in the backside of the bezel , has 9 wires and located just under the airspeed blower knob ???
Thanks in advance !



[CuylerTech]

So 1st one is for the footwell lighting, second is the 110 Plug, 3rd is for trailer brake controller.



[R.L.K.]

Wow ! Thanks



[MADDOG]

Threads merged.



[SitKneelBend]

What type of bulb goes in there? I'm going to get one and want to get an LED to go along with it. Thanks!

I used two of these back to back for mine (replaces the one bulb).

http://www.amazon.com/gp/product/B00KYQQM5M?psc=1&redirect=true&ref_=oh_aui_search_detailpage



[SitKneelBend]

So 1st one is for the footwell lighting, second is the 110 Plug, 3rd is for trailer brake controller.

When you say 110 plug that is for the one in the dash as it relates to my other post? If so, I really need to find out if it has the other end somewhere tucked away for the invertor...



[CuylerTech]

When you say 110 plug that is for the one in the dash as it relates to my other post? If so, I really need to find out if it has the other end somewhere tucked away for the invertor...

Yes the one for the plug.


Sent from my iPhone using Tapatalk



[spEdfrEk]

the plug near the glove box is actually for the Pass. Dash Speaker, the second plug (7-wire) is for the 120V AC dash outlet, and 3rd is for Trailer Brake Dash Controls



[CuylerTech]

the plug near the glove box is actually for the Pass. Dash Speaker, the second plug (7-wire) is for the 120V AC dash outlet, and 3rd is for Trailer Brake Dash Controls

I'm pretty sure it's the footwell lights as I have the same cable and plug plugged into my footwell lights.


Sent from my iPhone using Tapatalk



[Jmhm17]

If its not the foot well plug its for the light in the cubby. the footwell one I thought was under the dash, that looks like its inside where the glovebox is. They look similar..
