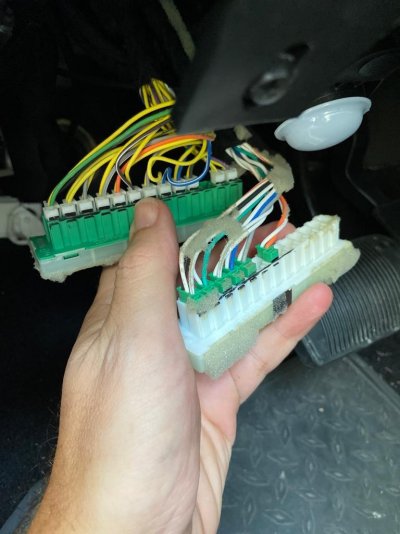

Looking to install an aftermarket brake controller in my 2015 Ram 1500, everything indicated there would be a brake controller harness connector wrapped in grey foam under the dash. I had grey foam wrapped under the dash, but it doesn’t look anything like the harness plugs I’m seeing online. What are these things?f7ce3febd12c4fd05cc5d9ce9c3aafe6.jpg


Sent from my iPhone using Tapatalk


crash68

ACME product engineer
Staff member
Administrator Moderator Supporting Member
Joined
Mar 20, 2016
Posts
12,332
Reaction score
21,423
Ram Year
2015
Engine
3.0 EcoDiesel
Those are your CANbus connectors, if you want your truck to function as normal don't pull any of those wires out..

There should be a four pin connector you need for the aftermarket brake controller to connect to.

OP
OP
D

Dondo

Junior Member
Joined
Jun 12, 2017
Posts
19
Reaction score
23
Ram Year
2015
Engine
Hemi 5.7
I wrapped them back up and reattached them where I found them, although I pulled the foam off. Guess they were wrapped in foam for a reason, eh? The truck has the class 3 hitch and the 4 and 7 pin connections on the bumper, but for the life of me I can’t find a brake controller connector under the dash. Would they build out a truck with those options and NOT install a connector?


Sent from my iPhone using Tapatalk


indept

Senior Member
Joined
Sep 10, 2017
Posts
3,244
Reaction score
4,845
Location
South Jersey
Ram Year
2017
Engine
Hemi 5.7L
The brake connector is right above the gas pedal close to the dash wrapped in foam


Jtblackram

Senior Member
Joined
Dec 27, 2018
Posts
194
Reaction score
233
Location
Long Island
Ram Year
2018
Engine
5.7 Hemi

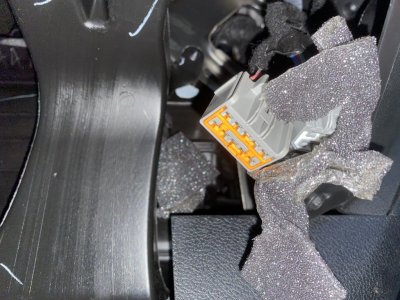

pretty sure it should look just like this, where the foam is in the second picture is where its tucked away

OP
OP
D

Dondo

Junior Member
Joined
Jun 12, 2017
Posts
19
Reaction score
23
Ram Year
2015
Engine
Hemi 5.7
The brake connector is right above the gas pedal close to the dash wrapped in foam

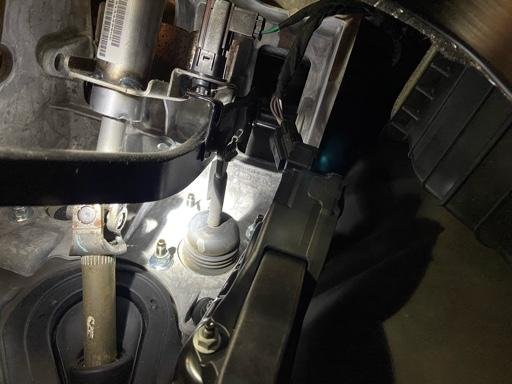

Damn, I wish you were right...literally nothing above the gas pedal. ba317a674102ea5c687ae5dd689d740e.jpg


Sent from my iPhone using Tapatalk

OP
OP
D

Dondo

Junior Member
Joined
Jun 12, 2017
Posts
19
Reaction score
23
Ram Year
2015
Engine
Hemi 5.7
Damn, I wish you were right...literally nothing above the gas pedal. ba317a674102ea5c687ae5dd689d740e.jpg


Sent from my iPhone using Tapatalk

Haha...nevermind.....when you say way up under the dash...yeah, they were tucked up behind ignition.

Thanks guys...[emoji17]


Sent from my iPhone using Tapatalk


indept

Senior Member
Joined
Sep 10, 2017
Posts
3,244
Reaction score
4,845
Location
South Jersey
Ram Year
2017
Engine
Hemi 5.7L
Haha...nevermind.....when you say way up under the dash...yeah, they were tucked up behind ignition.

Thanks guys...[emoji17]


Sent from my iPhone using Tapatalk
Plug away
:cheers:


Jendsley06

Senior Member
Joined
Sep 22, 2018
Posts
160
Reaction score
126
Location
Southern Illinois
Ram Year
2018
Engine
Hemi 5.7
I recommend the OE trailer brake controller personally. I installed mine and programmed with AlfaOBD. Works with the trucks computers and it's out of the way of your knees while driving. A little pricier than a cheap aftermarket unit and cheaper than a high end one from what I remember. Just my 2 cents though
