wiring harness/under passenger seat

[ZJARCHER]

Hey all
Does anyone have the under seat( YELLOW) harness pin assignments for 2019 Ram 2500 Laramie trucks(assuming 19 classic as well). Looking for pin assignments. To my surprise, the driver and passenger differ and they re NOT the same as 13-18 trucks. Threw me for a loop.

Thanks!



[SitKneelBend]

Hey all
Does anyone have the under seat( YELLOW) harness pin assignments for 2019 Ram 2500 Laramie trucks(assuming 19 classic as well). Looking for pin assignments. To my surprise, the driver and passenger differ and they re NOT the same as 13-18 trucks. Threw me for a loop.

Thanks!

You can search this site for them...

connectors.dcctools.com/home.htm

Sent from my HTC U11 using Tapatalk



[GTyankee]

You might want to look at this site
I know that it used to in other years, have the wiring & technical information

https://www.fcausfleet.com/ramtrucks/body-builders-guide.html



[ZJARCHER]

Thanks guys- ended up finding it. Stupid thing couldn't be named anything like "passenger seat harness" or
"passenger power seat plug" like the
driver's side plugs.
Instead,XY412A seems more fitting to FCA haha



[remytherumor]

Thanks guys- ended up finding it. Stupid thing couldn't be named anything like "passenger seat harness" or
"passenger power seat plug" like the
driver's side plugs.
Instead,XY412A seems more fitting to FCA haha

are you able to send me this pinout. ive replaced my seats with same model same year truck and im getting airbag light on and code B0028-13.

im at a complete loss.. the connectors i have fit from the seat to the body harness but i can see one of the pins from the seat is in an empty pin on the body



[Wild one]

are you able to send me this pinout. ive replaced my seats with same model same year truck and im getting airbag light on and code B0028-13.

im at a complete loss.. the connectors i have fit from the seat to the body harness but i can see one of the pins from the seat is in an empty pin on the body

The OP hasn't been here in close to 3.5 years.



[RamDiver]

are you able to send me this pinout. ive replaced my seats with same model same year truck and im getting airbag light on and code B0028-13.

im at a complete loss.. the connectors i have fit from the seat to the body harness but i can see one of the pins from the seat is in an empty pin on the body

Is there also a free pin on the mating side of the other side of the connector?

The connectors.dctools link is very detailed and easy to use, at least when it connects. I'm not familiar with using the link GT posted.

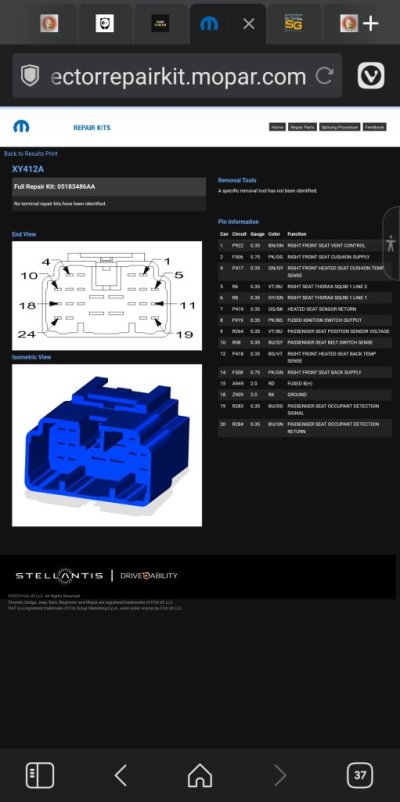

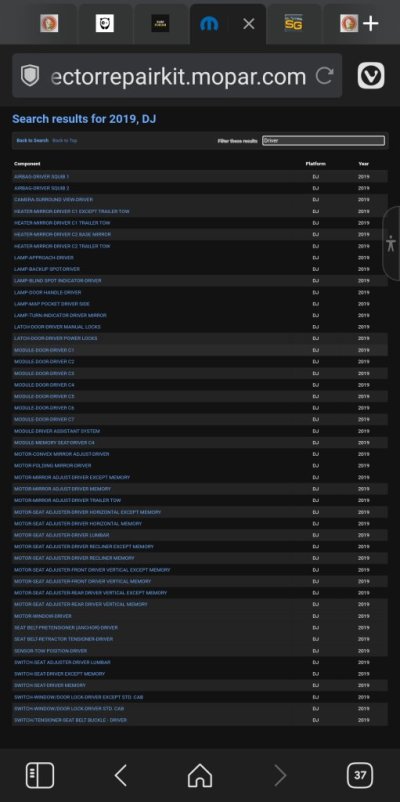

Try the following link.

Mopar Connection Repair Kit

connectorrepairkit.mopar.com

And, to Ram Forum.

.



[MoosenAround59]

I am posting for future reference for anyone looking for a replacement pin on this connector. I had a wire pulled out and it took me hours to figure out the connector P/N and the pin P/N. There are a lot of cross-references to these numbers, but this connector appears to be a Tokia Rika 4G2410-000 with 2.3II and 4.8 Terminals. Cross references below:
Connector
Yazaki Series 090II+187U-24P Hybrid Unsealed (7282-1248)

Terminals
Yazaki 090IIU-PIN2 (7114-4021) for 20 Smaller Sockets
Yazaki 187U-PIN2 (7114-4031) 4 Larger Sockets
These Terminals P/N are for 20-16 AWG Wires and I did not verify what wire the larger sockets had, but that will at least point you in the right direction.



[MoosenAround59]

Updating my post above:

the 090IIU-PIN2 did not fit in the socket I needed, I ended up having to get the 090IIU-PIN1. Check your wire size on the Mopar connector site above for your specific pin*
