2015 Retroshop HID Kit Install

[dodgehemi0]

Install pics on a 2015 ecodiesel which had quads that I upgraded to a projector.

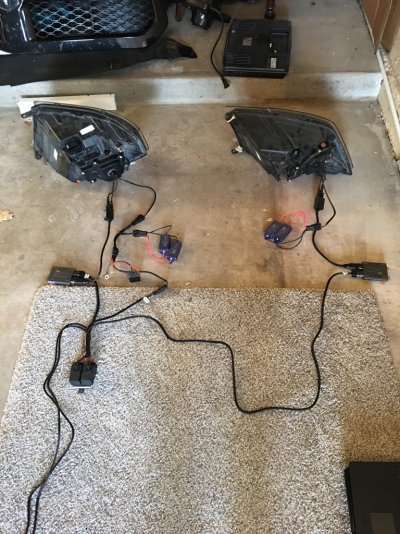

Here is the correct layout for the Retroshop HID KIT for a 2015

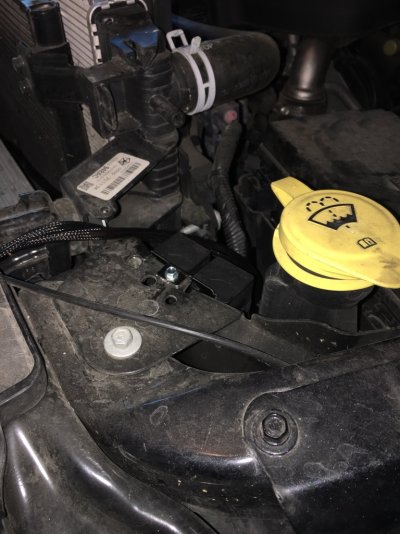

Here is a bracket I made for the HID resistors

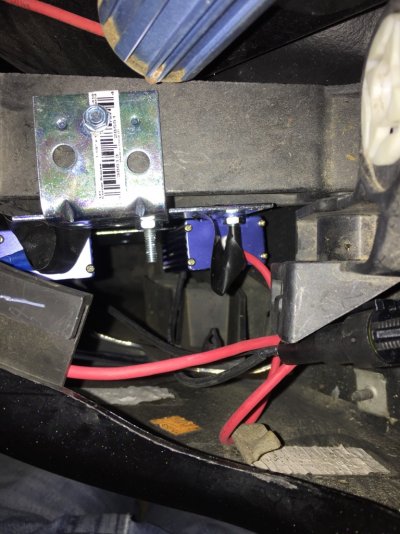

Here is where I put the brackets on both sides

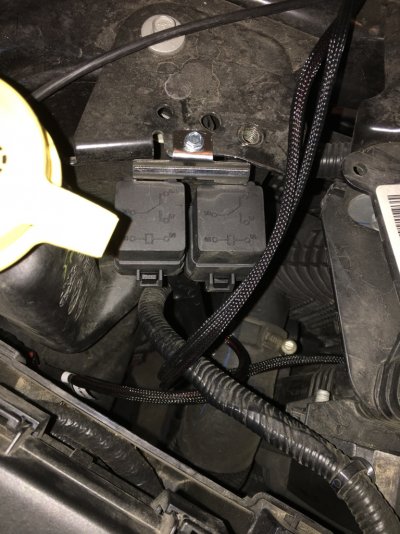

Here is the HID Ballast for the passenger side

HID ballast for driver side

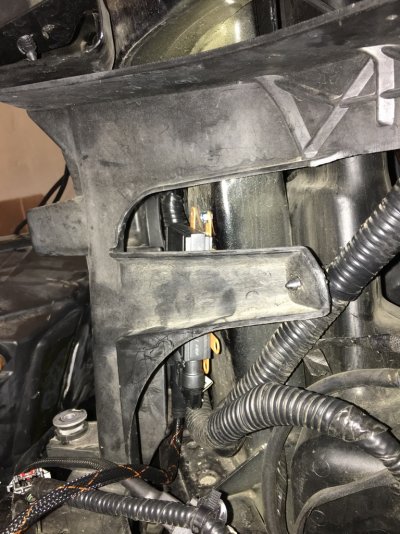

Here is where I put the wiring harness


Here is where I ran the passenger cable from the wire harness



[Sir John]

Wow....that's a BIG difference between my 14 Sport HID install and your install. The HID kit requirement for the 15+ trucks sucks



[dodgehemi0]

Wow....that's a BIG difference between my 14 Sport HID install and your install. The HID kit requirement for the 15+ trucks sucks

Yea plus my truck was originally a quad headlight so I had to convert it to projectors. So now I have 4 resistors per headlight.


Sent from my iPhone using Tapatalk



[eagle11401]

Thanks for the pics and ideas for the brackets. Did you do the taillights too? I've had all my stuff sitting for about a year because when I got all of it together there were EIGHT of those resistor packs and mounting 6 under the hood and 2 for the taillights seemed like a monumental pain in the ass.



[Bigdaddy]

Wow, thank you for those pics.



[dodgehemi0]

Thanks I was hoping someone would benefit from my install/idea.


Sent from my iPhone using Tapatalk



[dodgehemi0]

Thanks for the pics and ideas for the brackets. Did you do the taillights too? I've had all my stuff sitting for about a year because when I got all of it together there were EIGHT of those resistor packs and mounting 6 under the hood and 2 for the taillights seemed like a monumental pain in the ass.

No did not do the tail lights. I have 8 total resistors for just my headlights though.


Sent from my iPhone using Tapatalk
