2018 Ram 1500 7 pin Wiring diagram???

[Ratket]

I looked in the owners manual and searched on line.

Does anyone have a wiring diagram showing what pins are what on our 4th Gen Rams for the 7 Pin Connection?

Thanks All.



[Ratket]

Turns out the cover is Labeled....

LOL



[crash68]

Turns out the cover is Labeled....

Even if it wasn't on the cover, the plug wiring is a standard so that any trailer using that plug will work correctly


The four pin is the same way but some people don't realize that a four and five pin are interchangeable. The extra wire on a five pin is the reverse terminal.

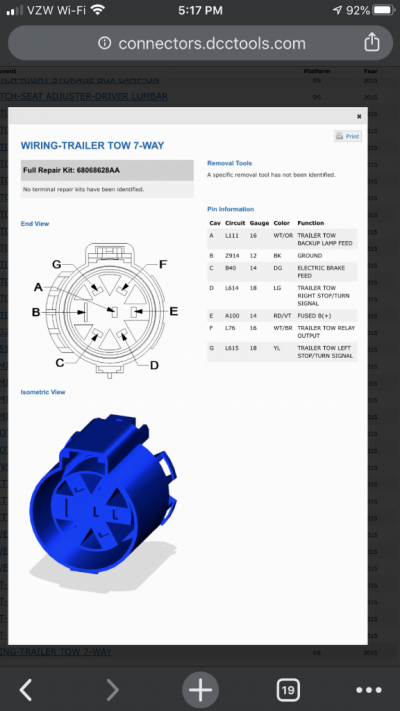

[1500ram12]

Sent from my iPhone using Tapatalk



[2003F350]

Yeah these have been a standard for a LONG time. Generally speaking if you google '7-pin round plug wiring diagram' or some variation of it, you'll get the correct diagram.



[Ratket]

Just needed to confirm the truck and then the boat trailer to know what to splice to what, Thanks for all the input guys.



[Gixxer750]

Turns out the cover is Labeled....

LOL

Right! I was just going to send the picture of it. I found out a few days ago....4th 4th gen ram owner to lol
