Aux Switch Location Suggestions

[JB1]

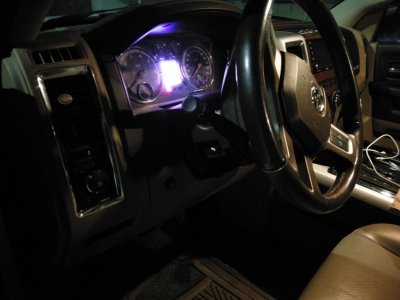

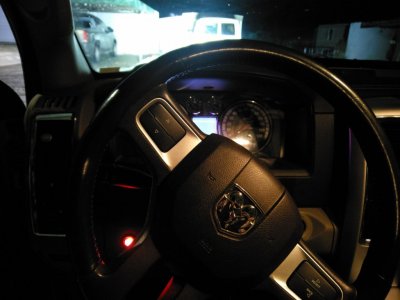

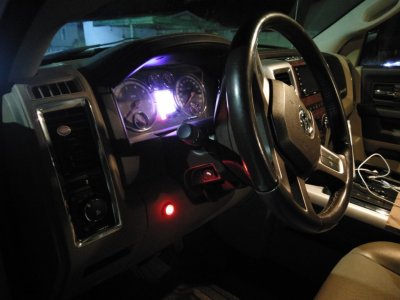

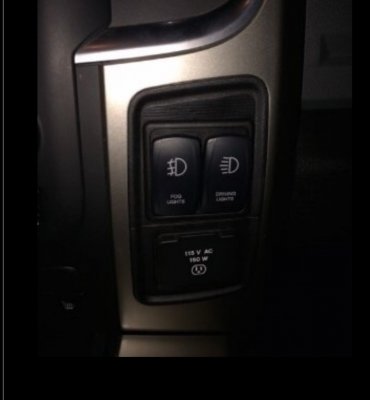

I bought the switches from OTRATTW. Check their site for pricing on the switches you'd want. I had 3 of them installed in the panel above the parking brake release, and 2 installed in the knee panel below the steering wheel. They're Contura V switches; AEV recommends Contura II and I can see why: the V switches are a bit wider and rub on the framework of the panel. It's a tight fit but all switches work fine, just a bit tight is all. The switch bodies for Contura 2/5 are the same, it's just the rocker that's different.

The switches trigger a relay panel I bought a couple years ago, one of the waterproof Bussman boxes. Here's a link on how to make one yourself if you're so inclined: http://www.bodenzord.com/archives/473. The switches are rated for 15a or so, but I don't want that much current coming inside the cab so I kept the wiring simpler and only used relay triggers.

As far as wiring, AEV recommends quick disconnects for the switch wiring and I 1000% agree with this. IF you don't put a quick disconnect up at the panel, you'll have to disconnect each switch to remove your dash bezel. I used some two 8-pin EPS computer cable extensions and spliced my switch wiring to that. Here's a cheap cable on Amazon as an example: https://www.amazon.com/StarTech-com...&qid=1515604467&sr=8-4&keywords=eps+extension

Can go crazy with other colors too if you wanted: https://www.amazon.com/BitFenix-Alc...qid=1515604467&sr=8-16&keywords=eps+extension


All in all, the process was fairly simple. I just had to extend the wiring from my existing switch locations to the new panel. I spent a couple hours in the house making the new wiring harness, and spent about an hour in the cab running the new harness and making the connections. The physical panel install took all of 5-10 minutes. AEV's instructions are good, but I've also removed my dash bezel a few times doing the RA4 swap and such.

I really like how you wired this up, thanks for all the links.



[JRam5.7]

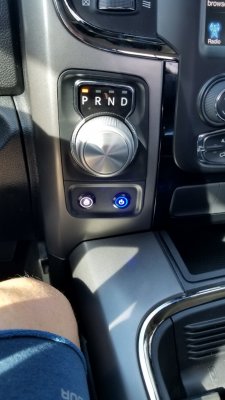

White for LED lightbar, blue for front camera.



[MarshRam]

White for LED lightbar, blue for front camera.

That looks great!



[JRam5.7]

https://www.ebay.com/itm/152672580597



[shadowhawk]

White for LED lightbar, blue for front camera.

View attachment 119742

I like it, but that's where the 4wd controls are on those equipped with 4wd.



[sbarron]

I've posted this before, but... Photobucket.



[shadowhawk]

I've posted this before, but... Photobucket.

View attachment 119761

I like that option. the silly little cubby hole thing is wasted space IMO. Where did you find the switch plate?



[sbarron]

Switch plate is a combo of a two-switch holder from OTTRATTW, and the little curved black triangle on top is cut from a black plastic notebook cover and hot-glued to the back of the switch holder. The whole assembly then just press-fits into the cubby. Other than the invisible hole in the very back of the cubby to run wire, there's no other modification/cutting on the truck itself.



[shadowhawk]

very clean mod. Nice work



[sbarron]

Thanks. I've since modified it with DPDT switches. With a little creative wiring, I can control 5 different light sets with only 2 switches.



[shadowhawk]

Really clever



[JB1]

isn’t there a screw in that cubby hole?



[sbarron]

isn’t there a screw in that cubby hole?

yes there is. If I need to pull the console, the switch pops out and I can access the screw.



[JB1]

yes there is. If I need to pull the console, the switch pops out and I can access the screw.

That’s nice



[Deepc6]

I've posted this before, but... Photobucket.

View attachment 119761

Great idea, I have been searching for a place to mount my switches and I really didn’t want to make various holes in my console.


Sent from my iPhone using Tapatalk



[MT Hillbilly]



[Bo Daggart]

I like this idea.

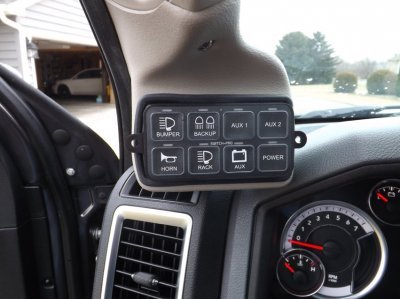

https://edgeproducts.com/shop/2010-2018-dodge-ram-6-7l-cummins-pillar-pod-comes-with-cts2-adaptor
But I would need a 3 way switch for my backup lights



[MarshRam]

Until I get my switch pod to hook up all my other goodies, this will do for the lightbar. Switch snapped in there like it was made for it!



[sbarron]

Until I get my switch pod to hook up all my other goodies, this will do for the lightbar. Switch snapped in there like it was made for it!

View attachment 120765


View attachment 120766

Lol! i love it!



[S0CAL]

Until I get my switch pod to hook up all my other goodies, this will do for the lightbar. Switch snapped in there like it was made for it!

View attachment 120765


View attachment 120766

That is so 007!
