Headlight Revolution V.3 High Beam Kit

[Witch]

Here is a review I did on the Headlight Revolution V.3 low Beam Kit

Sorry the pics were Photo Bucket and the site edit feature is not on the thread anymore for me to put them via site tools

http://www.ramforum.com/threads/headlight-revolution-v-3-led-kit.103637/


At that time they did not offer a high beam kit.

The most awesome wife of all time got me Black Quads and the new Headlight Revolution V.3 High Beam Kit for Christmas, however the weather has sucked so bad I did not get to install them until last night.

I wish I could say it went as smooth as the low beam install, they were just plug them in and they work flawless. The high beam has the same components with LED's that are advertised to have 600 more LUX than the low beam kit. However the components don't simply fit into the housing so you have to drill holes in the caps and use the provided grommet, while this sounds easy you soon discover the plugs do not fit through the hole. and you cannot drill it larger without risk of moisture. Needless to say I do not having pinning tools so I had to try to get the pins out with a screw driver. Not only did I put a hole in my hand I destroyed the pins to the point they could not be used. After going to 4 auto parts stores I finally found replacement pins at Pep Boys , LOL they did not even know they had them. had to blow the dust off the package and pay 5 bucks for three cents worth of aluminum pins.



I cannot recommend this product unless you have legit repining tools. if you choose to blow off this disclaimer please have your wife on stand by too run you to the emergency room for stitches after you jam your screw drive though your palm ..... it hurts ......

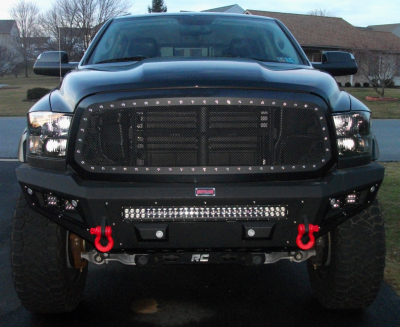

So after literally going through the gates of hell on this supposedly easy quick install I finally got them in the housings and in to the truck. All I can say is wow, what a difference they make, the light is simply off the chain, the beam pattern is pretty tight as well. unfortunately I forgot to get before pictures like I did in the low beam thread. But here are a few after shot including the new black housings

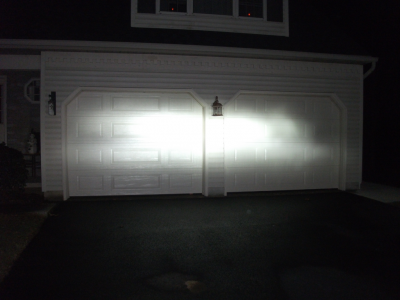

Here are the V.3 low beams



Here are the V.3 High Beams




I also installed the the GTR switch back turn signals so all the bulbs come from Headlight revolution



They have been bullet proof as well other than a hyper blinking problem as I had a wire crossed, changed it around and they are perfect.
I am sure this comes off as headlight revolution commercial. Let me assure you it is not. After seeing the multitude of threads of poor performance to poor beam pasterns actually blinding other drivers to flickering and flat out not working. Here is a product that simply works as advertised with no BS

Imagine that

https://headlightrevolution.com/200...d-9005-high-beam-bulbs-upgrade-supernova-v-3/

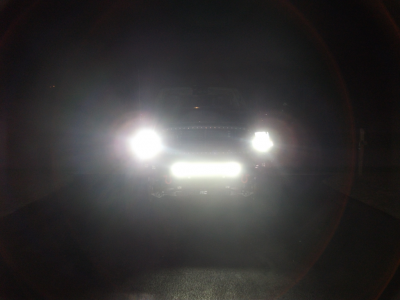

Highs and light bar



[Graygoose]

Nice write up, but the low beams, simple and worth it?



[Witch]

They rock , no issue what so ever

Even the high beams are pretty simple if you have the pin tools



[JB1]

where's the pics shining down the road?



[Witch]

I will have to get some

They light up the world



[bpa88]

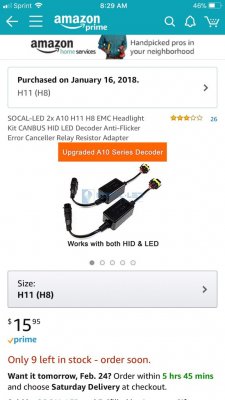

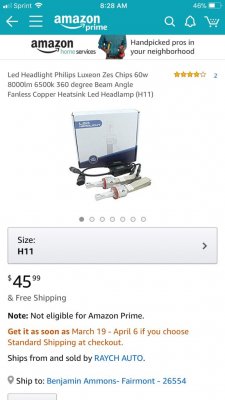

Save yourself money and piece together your own kit..same bulbs but no where near the ludicrous price HR charges for led bulbs.. also the anti flicker pwm harness. I did this exact setup and it works wonderfully for a fraction of the price.



Sent from my iPhone using Tapatalk



[Witch]

How cool is that

May want to see if they also have the pass through harness for the High beams 4


Also if you call Anthony at HLR he typically gives you a discount
