Help - Need measurements

[MCMLXIX]

I am looking for measurements on some upper control arm bushings for a project. I know they're not serviceable. My hope is that someone has an arm off the truck that they can measure ...

1. How wide is the bushing?

2. What diameter bolt is used? (or diameter of the sleeve opening)

…



[1SloRam]

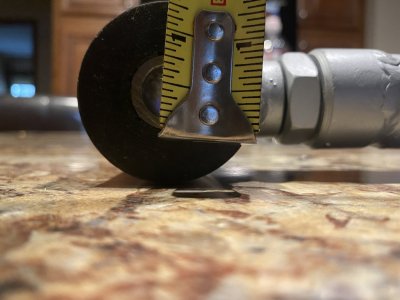

I have a set of IHC I can measure after work, idk how close they are to OEM but they’re from the 4/6 kit that I haven’t gotten a round to installing at the moment.



[MCMLXIX]

I have a set of IHC I can measure after work, idk how close they are to OEM but they’re from the 4/6 kit that I haven’t gotten a round to installing at the moment.

That should give me the same info I need...
Thanks



[1SloRam]



[MCMLXIX]

I was looking at the ballistic joints for some custom upper control arms I'm having built ... so it looks like a 2" ballistic should work with a 1/2" bolt...

https://www.ballisticfabrication.com/products/forged-chromoly-2-0-ballistic-joint
