Need help with DDM HID and RS projector harness

[2010 Infantry Vet]

Went to install my DDM tuning HID's and retro shop projector harness last night, and didnt have much luck. Anyone have pics of installing them?



[1500ram12]

Can you post some picks of how you have/had them. Everything is pretty straight forward


2018 2500 6.4L



[Dmopar74]

You don't need the harness with the ddm hids



[2010 Infantry Vet]

You don't need the harness with the ddm hids

I had factory halogen headlights, and bought factory projectors. I will post pics tonight.
I had everything hooked up, turn signals work...but no low or high beams.



[1500ram12]

Double check the low/high connection. It's possible that the pins on the adapter harness are bent or not seated properly.


2018 2500 6.4L



[2010 Infantry Vet]

I'm just hoping the retro shop projector adaptors are working



[1500ram12]

It's not uncommon for the pins to bent just enough to not be seated


2018 2500 6.4L



[smoothee]

What happened to the other projector adapter harnesses you had?

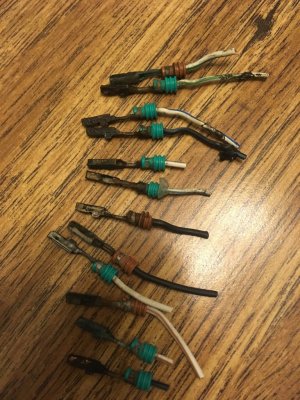

Even though your quads worked fine check your factory connectors, I had to change all mine out due to corrosion (I'm in the salt belt too). I'd try seeing if they work without the Hids first, if you have the stock bulbs.



[2010 Infantry Vet]

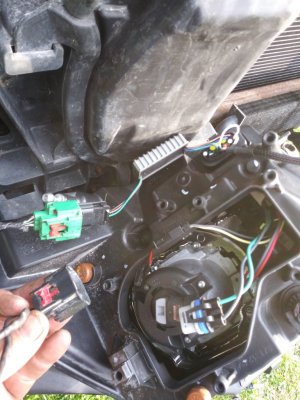

This is what I currently have hooked up. Suggestions please. Is green plug turn signals, is is black factory halogen plug turn signals?



[2010 Infantry Vet]

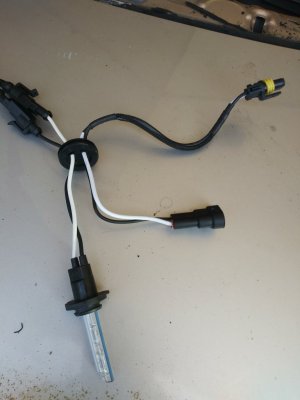

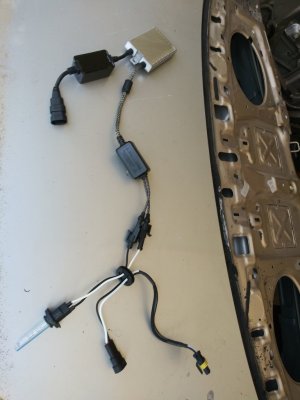

This is my ddm tuning HID kit.
Does the yellow rubber grommet plug plug into projector high beams, or low beams?



[1500ram12]

Looks like green is your high/low and black should be turn/park


2018 2500 6.4L



[1500ram12]

2018 2500 6.4L



[IRSmart]

2018 2500 6.4L

This is only true if you will be stashing the ballast inside the headlight housing btw. If not, that jumper is how the wire passes through the grommet.



[1500ram12]

This is only true if you will be stashing the ballast inside the headlight housing btw. If not, that jumper is how the wire passes through the grommet.

He's using oem projectors so he wouldn't need that connector


2018 2500 6.4L



[2010 Infantry Vet]

Ddm tuning plug only has two pins, factory has 3 pins.



[1500ram12]

Ddm tuning plug only has two pins, factory has 3 pins.

View attachment 170594

You should have 2 connectors off of the retro shop adapters. One goes to the turn/park and the other goes to the high/low. The ddm connector goes to the low beam connector inside the headlights. So the plug you took off the bulb for the low beam plugs into the ddm kit


2018 2500 6.4L



[IRSmart]

He's using oem projectors so he wouldn't need that connector


2018 2500 6.4L

Again, only if the ballast is being installed inside the projector housing itself. If being installed outside the headlight, that jumper will need to be used.



[2010 Infantry Vet]

Again, only if the ballast is being installed inside the projector housing itself. If being installed outside the headlight, that jumper will need to be used.

You should have 2 connectors off of the retro shop adapters. One goes to the turn/park and the other goes to the high/low. The ddm connector goes to the low beam connector inside the headlights. So the plug you took off the bulb for the low beam plugs into the ddm kit


2018 2500 6.4L

Correct, so I have two plugs coming off retro shop projector adaptors. When I plug those two connectors into my factory projectors, I either have parking lights, or headlights. Both won't work (this is without hid kit hooked up).
I think the retro shop adaptors are bad.



[1500ram12]

Correct, so I have two plugs coming off retro shop projector adaptors. When I plug those two connectors into my factory projectors, I either have parking lights, or headlights. Both won't work (this is without hid kit hooked up).
I think the retro shop adaptors are bad.

The section that has the resistors on it goes to the parking lights. If you haven't tried that yet do it


2018 2500 6.4L



[2010 Infantry Vet]

I have power going to the plug, but like I said, its either low beam or running lights that work. Not both.
I'm gonna call retroshop tomorrow.
