Need some radio wiring help

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

Zagraham928

Junior Member
Joined
Oct 25, 2017
Posts
3
Reaction score
0
Ram Year
2007
Engine
5.7L V8
I bought this kit from Amazon. Everything fit except for the harness that plugs into the factory harness to adapt to my aftermarket radio harness
Install Centric ICCR4BN... https://www.amazon.com/dp/B01N0B12C7?ref=ppx_pop_mob_ap_share

I have a 2007 Dodge ram Quad cab 4x4 SLT. I’m looking for the proper adapter if someone could link me that would be awesome. I don’t wanna buy the wrong one again.


Sent from my iPhone using Tapatalk


tron67j

Senior Member
Joined
Oct 14, 2019
Posts
2,796
Reaction score
2,829
Location
Maryland
Ram Year
2018
Engine
6.4 Hemi
Perhaps mpgrimm2 can help with the correct harness. Send him a PM with your truck information and what you need. He is a great help on gen 4 trucks. Not sure with gen 3 but worth a shot. Good luck


06MegaRam1500

Junior Member
Joined
Jan 16, 2022
Posts
5
Reaction score
0
Location
Connecticut
Ram Year
2006
Engine
Hemi 5.7
I am trying to install an after market radio but cant seem to find an explanation to what my wire colors are. The numbers are the locations in the harness:

1- gray/red
5- white/orange
6- white
7- gray/yellow
8- gray/blue
9-green/blue
10- green/yellow
11- black/green
12- gray/red
18- gray/lime green
19- gray/green
20- green/white
21- green/lime green
22- black

Can anybody help?


Attachments

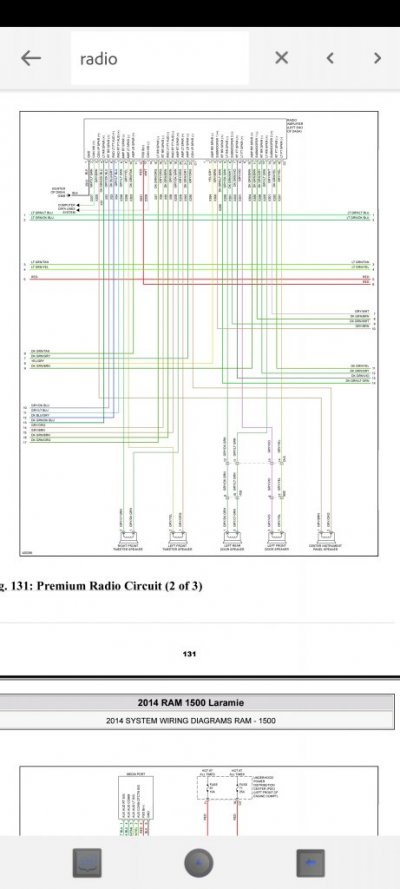

  • 97921369-9831-4859-8646-7C9804CC2D04.jpeg
    123.2 KB · Views: 5

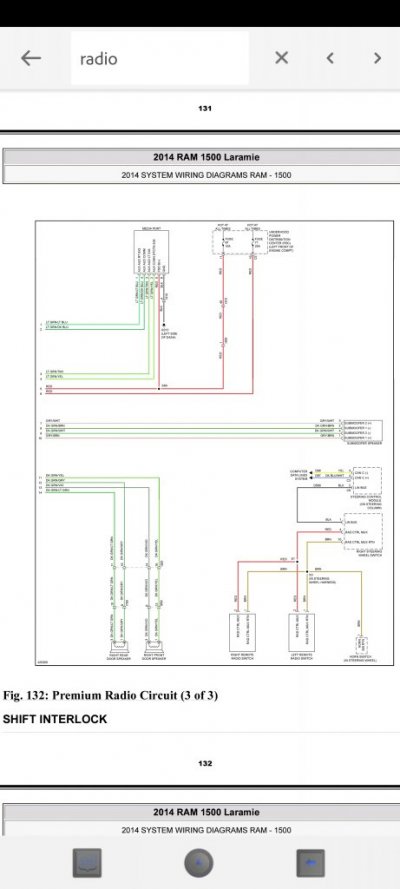

  • B6836946-4FD8-4123-889E-7845DB524E4D.jpeg
    95.7 KB · Views: 5

GTyankee

Senior Member
Supporting Member
Military
Joined
Nov 2, 2020
Posts
10,061
Reaction score
12,606
Location
El Cajon Calif. 92021
Ram Year
2016
Engine
3.0 ecodiesel
There is a possibility that you could go to the CRUTCHFIELD website
fill in the form for your radio
It should bring up a listing of most of the radios that will function with your truck

It should also list any parts & harnesses to make the radio work


george55378

Member
Joined
Jan 13, 2022
Posts
48
Reaction score
13
Location
Tower,MN
Ram Year
2015
Engine
5.7
I am trying to install an after market radio but cant seem to find an explanation to what my wire colors are. The numbers are the locations in the harness:

1- gray/red
5- white/orange
6- white
7- gray/yellow
8- gray/blue
9-green/blue
10- green/yellow
11- black/green
12- gray/red
18- gray/lime green
19- gray/green
20- green/white
21- green/lime green
22- black

Can anybody help?


aviatorblackout

Junior Member
Joined
Dec 24, 2021
Posts
24
Reaction score
8
Location
NC
Ram Year
2004
Engine
5.7 hemi
I second the vote for Crutchfield. They will get you the right harness
