Question on Manual Trailer brake controller

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

J054UA

Senior Member
Joined
Aug 24, 2020
Posts
108
Reaction score
36
Location
Louisiana
Ram Year
2020
Engine
3.6

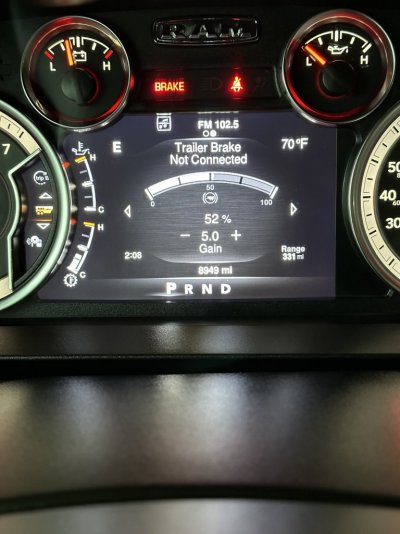

So I did the Trailer Brake controller install and used alpha obd settings to program. Checked all four settings again and they all set to the correct values. Without a trailer the gain minus and plus show up on evic and when I hit the brake pedal with the trailer screen on the evic. The gain goes up and down with the brake pressure applied.

But for some reason when I manually try ajusting the sliders by themselves without a trailer connected. A red screen pops up with the message Service Trailer Brake System and goes away after letting go of the sliders.
I did not see no faults or codes in alpha obd, no messages in evic, was told by infotainment that’s normal since no trailer.
Not sure if thats correct so Im asking on here.
I’ve seen videos on YouTube of individuals just using the sliders to show the gain with no trailer installed and it shows the gain on evic. Just making sure I don’t have a faulty unit and I dont know anyone with a trailer to test. Just double checking to make sure if I go to use it in the future it will show up when it’s connected.


Attachments

  • D559611A-DD00-431A-A632-2F59230F3A3B.jpeg
    124.2 KB · Views: 8
  • 4B012BA2-F727-4E6B-8E1D-FAD512BBE77D.jpeg
    121.9 KB · Views: 8
  • D3A9BB0D-E59E-49C5-AC1F-57B74B13E498.jpeg
    120.9 KB · Views: 8
OP
OP
J054UA

J054UA

Senior Member
Joined
Aug 24, 2020
Posts
108
Reaction score
36
Location
Louisiana
Ram Year
2020
Engine
3.6

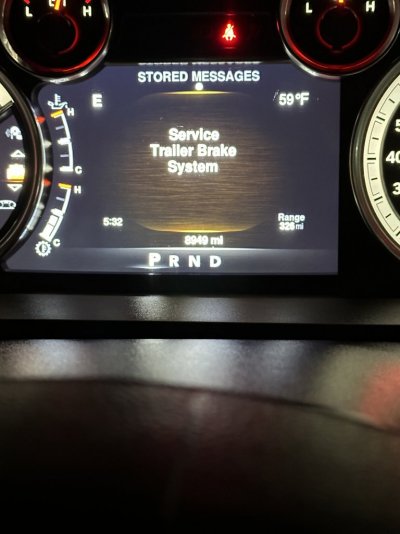

Now its not working at all. Go figure and message popped up on messages saying evic service trailer brake system.


Attachments

  • FF42F7E5-C533-4475-8CA4-2F723C1E4200.jpeg
    64.7 KB · Views: 5
  • 2201A35B-42A1-4806-8BCB-27AE00676166.jpeg
    93 KB · Views: 5

chopperman1

Senior Member
Military
Joined
Dec 26, 2013
Posts
1,230
Reaction score
1,189
Location
Peoples Republic of Massachusetts
Ram Year
2018 Rebel
Engine
5.7L HEMI
There are 5 settings to change:
1. CBC Features:Trailer Tow Present
2. Cust.set.menu2: Trailer Selected CSM Present
3. Cust.set.menu2: Trailer Name CSM Present
4. Cust.set.menu2: Trailer Type CSM Present
5. P/T Chassis Net: ITBM/HWM Integrated Trailer Brake Module

OP
OP
J054UA

J054UA

Senior Member
Joined
Aug 24, 2020
Posts
108
Reaction score
36
Location
Louisiana
Ram Year
2020
Engine
3.6
Done all five man and checked to make sure they were all activated.

OP
OP
J054UA

J054UA

Senior Member
Joined
Aug 24, 2020
Posts
108
Reaction score
36
Location
Louisiana
Ram Year
2020
Engine
3.6
Turned out to be the faulty trailer brake controller switch.
