Trailer wiring issue.

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

NateTheGreat

Junior Member
Joined
Oct 4, 2019
Posts
3
Reaction score
0
Location
Arkansas
Ram Year
2017
Engine
5.7
2017 ram 1500 5.7l "Regular darn truck"

Mechanic all my life. USMC LAV repairman.


Trailer lights work perfect on Chevy truck. When hooked up to my dodge.... they dont work so good.

No blown fuses.
All grounds have been cleaned.
4 blade - boat trailer.

The socket is hot and working properly according to test light.

When plugged in, Right side of trailer works fine, left side does not.
The wrong filament is burning on left side for blinker/brake (1157).

Brand new trailer wire kit. Pro install. Trailer wiring is perfect. Grounds are good.

Running lights not working either.

Truck has 8000 miles, no mods, never had a trailer on it.

Ever happen to anybody?


1500ram12

Senior Member
Joined
Jan 23, 2012
Posts
5,487
Reaction score
2,427
Ram Year
2005
Engine
5.9L Cummins
Did you test that each pin on the truck's trailer connector did what it is supposed to do? Is the ground for the trailer lights grounded to the trailer or ran all the way to the plug? I had a similar issue this summer on one of my trailers. Ended up having to run the ground for the lights to the plug


2018 2500 6.4L Tradesman

OP
OP
N

NateTheGreat

Junior Member
Joined
Oct 4, 2019
Posts
3
Reaction score
0
Location
Arkansas
Ram Year
2017
Engine
5.7
The pins do function properly. Its grounded to the trailer, light housings also grounded to trailer.


1500ram12

Senior Member
Joined
Jan 23, 2012
Posts
5,487
Reaction score
2,427
Ram Year
2005
Engine
5.9L Cummins
If you can try grounding the lights, at least the tail lights to the ground on the plug.

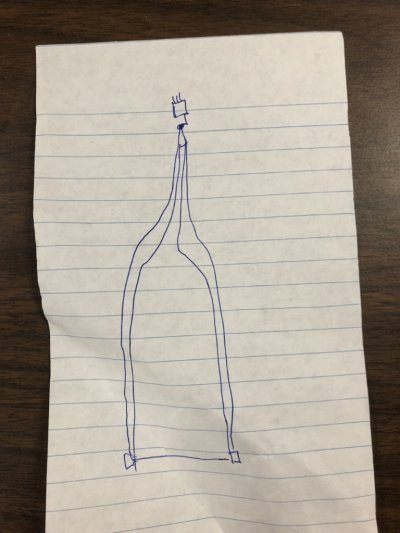

Not the best drawing but I'm assuming that this is how it's wired


Try running all the grounds to the plug. Bypassing using the trailer as a ground



2018 2500 6.4L Tradesman

OP
OP
N

NateTheGreat

Junior Member
Joined
Oct 4, 2019
Posts
3
Reaction score
0
Location
Arkansas
Ram Year
2017
Engine
5.7
The grounds for the lights are in the mounting hardware.

It just seems silly, shouldn't all this be standardized? Why would it work perfectly on a different make if it were a ground issue?


1500ram12

Senior Member
Joined
Jan 23, 2012
Posts
5,487
Reaction score
2,427
Ram Year
2005
Engine
5.9L Cummins
I understand but I think it's a ground issue. Could just be something with your truck. If you know anyone else with a ram have them hook up and see if it works on theirs


2018 2500 6.4L Tradesman


csuder99

Senior Member
Joined
May 28, 2014
Posts
557
Reaction score
428
Ram Year
2013
Engine
Hemi 5.7
I'm with the "ground" crew ;) The symptoms sound like the lights are getting ground through the trailer hitch instead of the connector. Either the connector ground on the RAM is bad and works on the Chevy, or the hitch on the Chevy provides a better ground than the newer RAM (paint etc.)


gofishn

Senior Member
Joined
Sep 12, 2014
Posts
5,082
Reaction score
10,130
Location
Iowa
Ram Year
2022 Ram 1500 5th Gen, Big Horn, 4X4, Crew Cab, 6'4" Box
Engine
hemi 5.7L, 345 cu in
IIf I understand correctly, everything functions properly except left side and runing lights whivch would include the left side.

If so, am thinking left side bulb is faulty or Ground is bad.

Pleas, let us know what you find.
