2018 Ram 1500 UAQ upgrade with a 2018 UAQ Radio

[Scottieone12]

Hello,
Here is my journey installing a 2018 UAQ radio on a 2018 Ram 1500 with a RA2 Radio.


Parts List:
68331631AH UAQ Radio (2018) car-part.com
1UJ96DX9AF AC Bezel/Radio Knob Ebay
7 spd Ext'd Conversion harness. M2 Mods
ATC Temp Sensor Add-On w/conversion harness M2 Mods
ATC Humidity Sensor Harness M2 Mods
Security ByPass Harness M2 Mods
68366552AA Hvac Control Module. Ebay
55111178AC Cabin Air Temp Sensor. Ebay
55111389AF Humidity Sensor Ebay
68328704AC Media Premium Hub Ebay
OBDLink Mx Ebay
AlphaObd Playstore

Please click on the thumb nails to see how it was done, it will only let me put 5 pictures at one time so I will add more later.

Big thanks to @Mprimm2 and @DeereGuy for the harness's to com please the project.

Oh I forgot to say that the Hotspot in the truck works great and as of now I did not have to add a extra cell antenna for it to work.



[andyhollin]

Nice conversion! Thanks for listing all the part numbers. I'm sure those are helpful to others.



[bellaireroad]

Why was the security bypass harness needed? Thanks


Sent from my iPhone using Tapatalk Pro



[Mpgrimm2]

Why was the security bypass harness needed? Thanks

He had a 2018 RAM (or a 19 Classic) with the security module that prevents programming changes via AlfaOBD (to enable ATC). See Alfaobd link for details...

- DIY: 2013+ RA3/RA4 8.4" Radio Conversion Upgrade.

How To: Install a 2018 4C (UAQ/UAS) Radio in 2013 - 2017 RAM.

INFO - 2013-2017 8.4AN FW Notes (RA4/VP4 NA).

How to Add Automatic Temperature Control (ATC) to a Manual Temperature Control Truck.

** AlfaOBD
(for activating factory features yourself. See docs linked in OP)


M² Mods.



[bellaireroad]

He had a 2018 RAM (or a 19 Classic) with the security module that prevents programming changes via AlfaOBD (to enable ATC)

M² Mods.

Ahhhh...thanks


Sent from my iPhone using Tapatalk Pro



[Scottieone12]

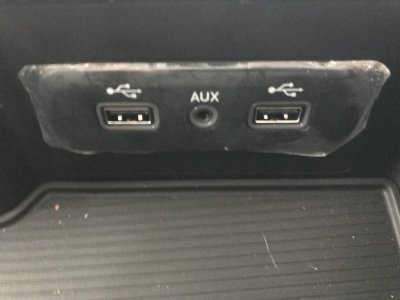

Here are some more pictures, this is from the arm rest for the media hub



[Scottieone12]

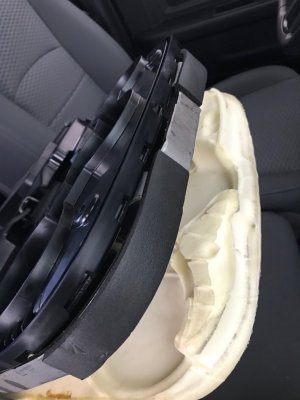

Arm rest/media hub install



[Scottieone12]

Media hub, Cabin sensor, Hvac module



[Scottieone12]

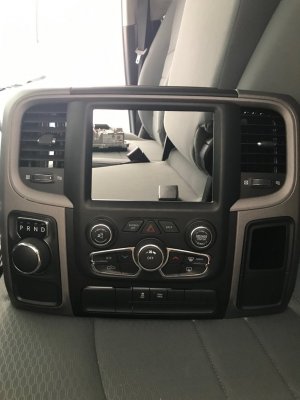

Hvac wire, Vent, And Bezel



[Scottieone12]

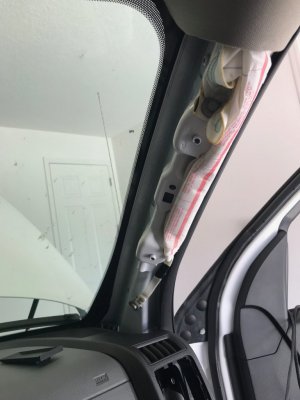

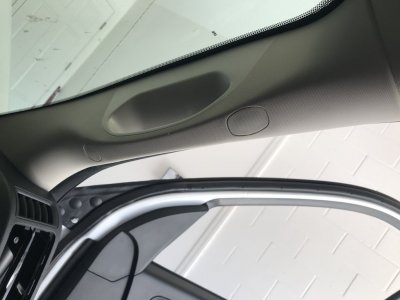

Humidity Sensor Wire install



[Scottieone12]

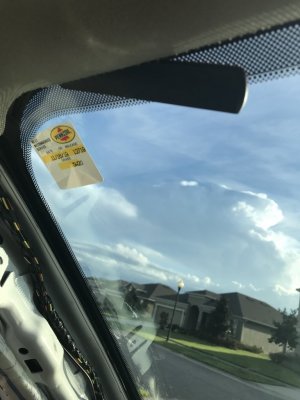

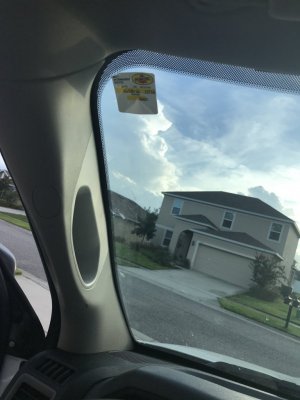

Humidity wire sensor, have humidity wire, radio installed



[Scottieone12]

New radio installed and Hvac mod installed and working



[Mpgrimm2]

Scott, great pictures!

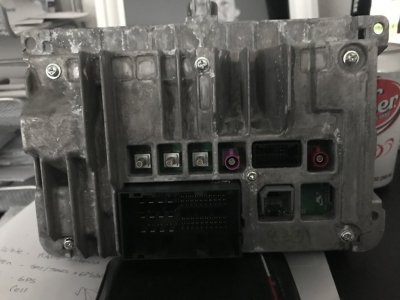

I see you are missing the colored connectors on the back of the radio. Didn't know if you saw this post for the extensions to use in that situation. Or if we posted the info for you previously ...

PS: It's Mpgrimm2 (in your op).

Added to post 10...

Here's links to some of the adapters if needed:

Curry Fakra K (SXM) - eBay

Curry Fakra K w/Rt Angle (SXM) - Amazon

White Fakra B (FM) - eBay

Bordeaux 'Prpl' Fakra D w/Rt Angle (Cellular) - Amazon

View attachment 176065

View attachment 176067

M² Mods.



[Scottieone12]

Yes I saw the post after I bought a older radio (ra1) and popped off the ones I needed.



[Scottieone12]

UPDATE: The WiFi hotspot keeps dropping signal so I’m trying a 4g Lte Car antenna to see if the signal strength stays high. I have attached pictures of the antenna and the install, will update in a few days. Oh it is connected to the purple plug on the back of the radio.



[Scottieone12]

Here is the rest of the install pictures.



[19RamClassic]

I just did this to my 2019 ram classic that I originally had an Ra1 in. I upgraded originally to a Uaq then I sold it to get other truck parts so I ended putting a Vp4 in my truck. I recently got my hands on a UAS and installed it and I didn't need to get the premium media hub. I have the one in your pic that says usb on one side and has the icon on the other. I plugged my phone to the icon side and android auto started right up. So just thought I throw that out there because that's a savings of $100.

At the very least I suggest anyone doing this mod in an 18-19 ram/ram classic to try there current hub first.



[Mpgrimm2]

FYI,
The base model 18/19 classic USB hub will work for Android Auto .... those that want to use Apple CarPlay must get the one of the 2 premium USB hubs listed in the UAQ upgrade thread (Apple folks always pay more for some reason).

M² Mods.



[Michael Snyder]

Hello,
Here is my journey installing a 2018 UAQ radio on a 2018 Ram 1500 with a RA2 Radio.


Parts List:
68331631AH UAQ Radio (2018) car-part.com
1UJ96DX9AF AC Bezel/Radio Knob Ebay
7 spd Ext'd Conversion harness. M2 Mods
ATC Temp Sensor Add-On w/conversion harness M2 Mods
ATC Humidity Sensor Harness M2 Mods
Security ByPass Harness M2 Mods
68366552AA Hvac Control Module. Ebay
55111178AC Cabin Air Temp Sensor. Ebay
55111389AF Humidity Sensor Ebay
68328704AC Media Premium Hub Ebay
OBDLink Mx Ebay
AlphaObd Playstore

Please click on the thumb nails to see how it was done, it will only let me put 5 pictures at one time so I will add more later.

Big thanks to @Mprimm2 and @DeereGuy for the harness's to com please the project.

Oh I forgot to say that the Hotspot in the truck works great and as of now I did not have to add a extra cell antenna for it to work.

View attachment 176458

View attachment 176459

View attachment 176460

View attachment 176461

View attachment 176462

Thanks for this, I will be ordering these parts in the near future and hopefully installed by summertime for some much needed time off



[Michael Snyder]

so according to the parts dept at the dealership, according to my VIN, I can't install this radio and they recommended I go aftermarket
