Headlamp mounting bolt part number help

[EViS]

Yes, So these are "replacement" parts which can be found in a separate sub-section.

You should have been presented with this page when searched
View attachment 561494

When you click the Green button it will link you here

2013-2024 Ram Hex Screw And Washer 68222835AA | All Mopar Parts

2013-2024 Ram part # 68222835AA - Hex Screw And Washer

parts.allmoparparts.com

Here are the other parts links

https://parts.allmoparparts.com/oem-parts/mopar-mounting-spacer-68222836aa

https://parts.allmoparparts.com/oem-parts/mopar-u-nut-6105242aa

I will send you a code you can use,
- Benny

That's great, thank you for clarifying as I had obviously missed this step.



[EViS]

As an update, the bolt with part number 68222835AA is not the correct bolt for the lower headlight mounting through the spacer (68222836AA). This bolt is too short and is in fact the bolt used for the upper headlight fixing. The bolt that is required to secure the headlight through the spacer needs to be approximately 50 mm in length. However, I'm unsure of the part number for this?

In addition, the u nut with part number 6105242AA is approximately 20 mm in width. Although this fits and may be used to secure the headlight through the spacer, it's a little too wide and it pushes on the the spacer lugs. The original u nut is approximately 16 mm in width. Both u nuts are approximately 25 mm in length which is fine. It would be good to find a u nut of similar width to the original.



[AllMoparParts.com]

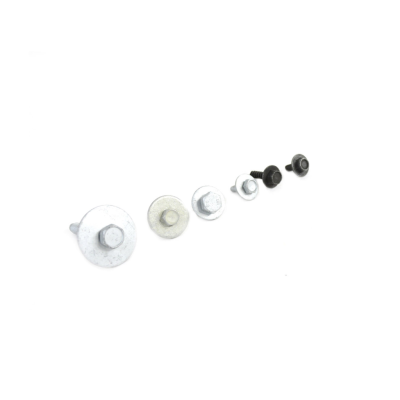

There is a fastener kit part # 68204786AB pictured below.

Would you say its the bolt in the Top Right corner?



- Benny



[EViS]

Other than the colour, that looks to be the correct size bolt, yes. However, I can't find any details to confirm this.



[AllMoparParts.com]

I can search around for a generic mopar bolt but to confirm we are looking for a M6 x 1.0 X 50mm ?

- Benny



[EViS]

Thanks Benny, that's super kind. I'm not absolutely sure of the 1.0 spec.



[AllMoparParts.com]

Thanks Benny, that's super kind. I'm not absolutely sure of the 1.0 spec.

The U nut 6105242AA is M6 x 1.0. Did the bolt thread into it properly?

- Benny



[MitchO]

I have just encountered this same issue when ordering the bolt in question. It is the bolt for the top headlight and looks like mopars catalog is incorrect. 68222835AA look to be the same as the top headlight bolt. The u clip is the right thread pitch but too wide to slide in the guides on the plastic headlight bracket. The bolt in the top right corner Benny posted is the actual correct bolt that we are looking for. Benny to the rescue?



[AllMoparParts.com]

I have just encountered this same issue when ordering the bolt in question. It is the bolt for the top headlight and looks like mopars catalog is incorrect. 68222835AA look to be the same as the top headlight bolt. The u clip is the right thread pitch but too wide to slide in the guides on the plastic headlight bracket. The bolt in the top right corner Benny posted is the actual correct bolt that we are looking for. Benny to the rescue?

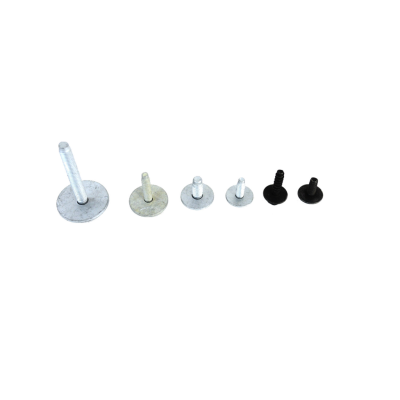

Im thinking the only way to get this bolt is with the fastener kit. For a Diesel application there is actually a different kit than mentioned above. It's part # 68050778AA and includes the following




Let me know what you think

- Benny



[MitchO]

Benny,
Looks like the battery hold down bolt may work. It is a little longer but looks like it may work And hopefully not bottom out. I will know in a few days when I get the bolts



[hunterdan]

If we know the size and thread pitch, why not just go to the local hardware store and pick up said bolt from them. It's not a structural piece of hardware. Any decent hardware store should have a bolt that size in stainless and carbon steel, hex, flat, or button head.



[hypnotiz3r]

Benny,
Looks like the battery hold down bolt may work. It is a little longer but looks like it may work And hopefully not bottom out. I will know in a few days when I get the bolts

What was the result after getting the bolts?



[AllMoparParts.com]

Everything available that we could dig up has been posted above.

- Benny
