LED taillight harness

[DonnyP]

I currently have 3 set of LED tails from my truck sitting in my basement that I'm stuck with. I had to reuse my tail light harness with my current set installed now.

I now have no harness to include with the other lights, so me selling them is extremely hard as most people want the harness to go with them.

I'm looking to build a set of harness's so that I can sell these extra sets and get my garage cleaned up.

I found a set but they guy wants like 80 bucks for them. I figured I could build them much cheaper as I already have a ton of wire and parts/tools here from doing headlight retrofits.

I just need to find the plug connectors, pins (sizes as well), wire size, etc.

Does anyone have any leads on these connectors or parts I might need?

I think the main 6 pin connector that plugs into the body harness is as follows:

Connector
https://www.mouser.com/ProductDetai...iMZZMs7eK6h2EBtKgWB1t55%2BB6K6fB%2B9lf%2B2kk=

Connector Pins
https://www.mouser.com/ProductDetai...=sGAEpiMZZMs7eK6h2EBtKjhhPOI9dAhQBM9l2Xlz/gs=

I still need the 4/5pin plug that connects to the upper connector on the OEM LED lights and a 7440 bulb socket for the reverse bulb

Also wire size... I'm guessling like 18 gauge?

Pictures for reference:

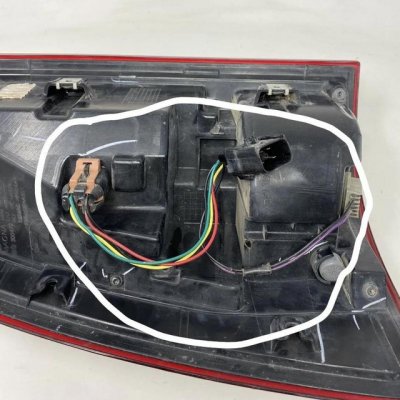

Shows the harness I'm taking about





Show the upper plug on the light I was referencing. Need the connector that plugs into there.



[chrisbh17]

LED segment connector: https://www.mouser.com/ProductDetai...1%2bPODsfuA==&countrycode=US&currencycode=USD

Pins for it: https://www.mouser.com/ProductDetai...wPNznsaV8RA==&countrycode=US&currencycode=USD



[DonnyP]

LED segment connector: https://www.mouser.com/ProductDetail/aptiv/12077591-b/?qs=HendQj7gz9W4C1%2bPODsfuA==&countrycode=US&currencycode=USD

Pins for it: https://www.mouser.com/ProductDetail/aptiv/12048074-l/?qs=DlE0rdXB/L1wPNznsaV8RA==&countrycode=US&currencycode=USD

Thank you!! Now for the LED segment connector it shows female end, which has to holes in the plug to receive the pins from the light socket. The picture they show you on the website must be of a male end, has the connector has the pins showing? Hope that makes sense.

Now the connector I linked above for the main 6 pin is a sealed connector, meaning where the wires get pushed through already have seals and I wouldn't need those?

I found the seals to go with the plug you linked above.
