Need help with the auxiliary switch part number

Discussion in '4th Gen DIY' started by abbttb, Dec 7, 2016.

  1. abbttb

    abbttb Member

    Posts:
    81
    Likes Received:
    38
    Joined:
    Aug 31, 2016
    Location:
    Austin Tx
    Ram Year:
    2016
    Engine:
    Hemi 6.4
    Thanks for the info. For the most part I will be running additional lighting. I look forward to seeing your post and pictures.

  2. magician

    magician Senior Member

    Posts:
    358
    Likes Received:
    128
    Joined:
    Jun 19, 2016
    Ram Year:
    2015
    Engine:
    5.7 Hemi
    I'll PM you since I'm not the greatest at posting pictures. We have 4 RAM 2500's where I work, all are 2016's, 3 are Crew Cab 4x4 with service boxes and one(mine) is a Power Wagon. All have to run auxiliary lighting plus radios and PA systems and external speakers/sirens. The Power Wagon is the only one that didn't come with the switches which is how I know what happens when you pull power from an existing circuit and the load increases to much. I do have a few other tricks I've learned on these trucks for finding power though and I'll elaborate when I PM you the photos. I'll also send you the part number for Aux wiring harness from under the hood a small well as show you how we routed it thru the firewall.

    Cheers

  3. DerTrom

    DerTrom Junior Member

    Posts:
    29
    Likes Received:
    3
    Joined:
    Dec 2, 2016
    Ram Year:
    2008
    Engine:
    Hemi
    By the way, how to know certain parts, knowing only the VIN number of the car. Some advise such service. What can you say? Will it work?

  4. abbttb

    abbttb Member

    Posts:
    81
    Likes Received:
    38
    Joined:
    Aug 31, 2016
    Location:
    Austin Tx
    Ram Year:
    2016
    Engine:
    Hemi 6.4

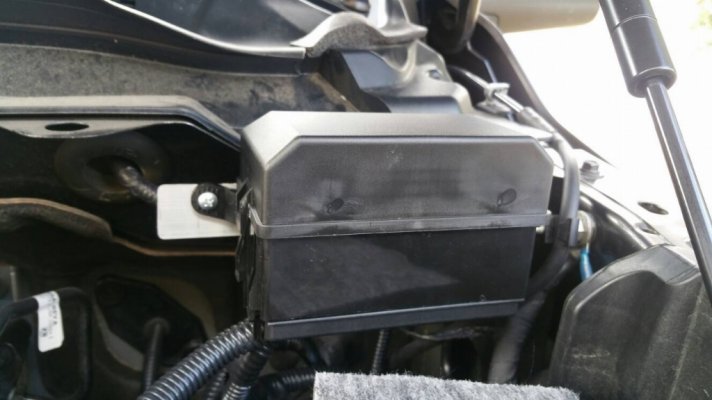

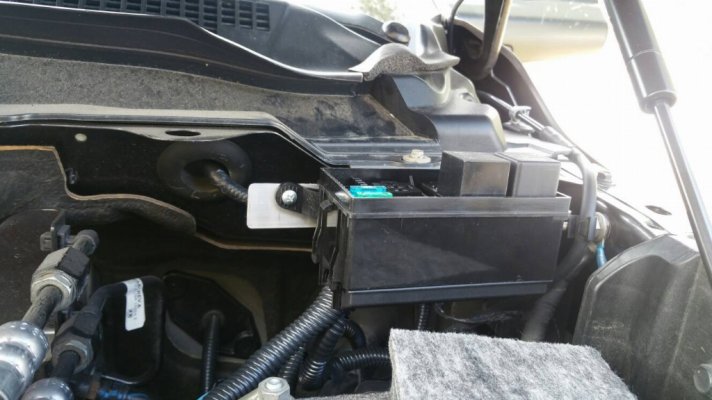

    I wanted to follow-up on this post to say thank you to Yoda and Magician for thier assistance. I was finally able to complete my auxiliary switch install and everything work perfectly. The part number provid ed d by Yoda was the correct switch and the pictures provided by Magician were a big help. I am still waiting on a relay block to arrive to make the install look like it is completely Oem. But the functionality is already in place.

    [​IMG]

    [​IMG]

    tnctx02 likes this.
  5. abbttb

    abbttb Member

    Posts:
    81
    Likes Received:
    38
    Joined:
    Aug 31, 2016
    Location:
    Austin Tx
    Ram Year:
    2016
    Engine:
    Hemi 6.4
    I found the following wiring diagram on Ram Builder. That helped with building my harness.

    Aux1 - pin 3 br/or
    Aux2 - pin 2 br/vt
    Aux3 - pin 11 br/wt
    Aux4 - pin 10 br/gy
    Aux5 - pin 12 tn/br

    [​IMG]

    tnctx02 likes this.
  6. abbttb

    abbttb Member

    Posts:
    81
    Likes Received:
    38
    Joined:
    Aug 31, 2016
    Location:
    Austin Tx
    Ram Year:
    2016
    Engine:
    Hemi 6.4

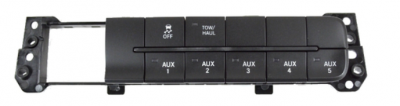

    Switch pn 68241343AA-001

    [​IMG]

    tnctx02 likes this.
  7. coolemoff1

    coolemoff1 Senior Member

    Posts:
    399
    Likes Received:
    51
    Joined:
    Aug 5, 2015
    Ram Year:
    2015
    Engine:
    6.7
    Pm me some pics and info been wanting to do this for a while now
    Codes are no prob got buddy that's tech


    Sent from my iPhone using Tapatalk

    Mpgrimm2 likes this.
  8. abbttb

    abbttb Member

    Posts:
    81
    Likes Received:
    38
    Joined:
    Aug 31, 2016
    Location:
    Austin Tx
    Ram Year:
    2016
    Engine:
    Hemi 6.4
    I did not have to add the sales code for the switch since my harness goes directly to each of the pins. Each button applies a ground to the coil side of the relay when applied. Below is how I wired each switch

    [​IMG]

    tnctx02 likes this.
  9. abbttb

    abbttb Member

    Posts:
    81
    Likes Received:
    38
    Joined:
    Aug 31, 2016
    Location:
    Austin Tx
    Ram Year:
    2016
    Engine:
    Hemi 6.4
    Aux 1&2 will function with the key off, 3-5 require the key to be on

  10. abbttb

    abbttb Member

    Posts:
    81
    Likes Received:
    38
    Joined:
    Aug 31, 2016
    Location:
    Austin Tx
    Ram Year:
    2016
    Engine:
    Hemi 6.4
    Here is a couple pictures of how I ran the harness through the firewall by going through the clutch delete plate. It is plastic and easy to drill.

    [​IMG]

    [​IMG]

    tnctx02 likes this.
