OEM tailgate handle backup camera inop after install

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

BudsRam

Member
Joined
Aug 11, 2018
Posts
56
Reaction score
20
Location
Fayetteville, NC
Ram Year
2015 Ram 1500 Big Horn
Engine
Pentastar 3.6
Hey All...
I know that this subject has been discussed countless times here but I haven't had success in finding the answer here on this forum so....
My problem/issue is that I bought the OEM tailgate handle camera to replace the inoperable aftermarket camera the previous owner had mounted in the bumper. I installed the tailgate handle camera per instructions and went through all of the alfaOBD options for camera but still getting the blue unavailable screen....help?


SRich2015

Senior Member
Joined
Jul 23, 2017
Posts
269
Reaction score
119
Location
USA
Ram Year
2018
Engine
6.7 Cummins
What wiring did you use?


Sent from my iPhone using Tapatalk

OP
OP
BudsRam

BudsRam

Member
Joined
Aug 11, 2018
Posts
56
Reaction score
20
Location
Fayetteville, NC
Ram Year
2015 Ram 1500 Big Horn
Engine
Pentastar 3.6
SRich2015,

I don't quite understand your question....I plugged the connector (from the kit)into the connector in the tailgate and ran all the wiring up to the back of the radio and plugged into the rca cable and power wire to the hot wire at the 12v power outlet and ground.

What am I missing?


stimpy433

Senior Member
Joined
Mar 10, 2016
Posts
3,583
Reaction score
3,163
Location
IOWA
Ram Year
2014
Engine
3.6
If you installed an oem camera and hooked it up to the factory wiring without installing the whole new harness that comes with the kit it won’t work. The factory kit doesn’t have an rca plug in it....

OP
OP
BudsRam

BudsRam

Member
Joined
Aug 11, 2018
Posts
56
Reaction score
20
Location
Fayetteville, NC
Ram Year
2015 Ram 1500 Big Horn
Engine
Pentastar 3.6
This is what I bought/installed....from tailgatecamera.com

1 DODGE RAM Backup camera (2013-2018) Factory Integrated OEM Fit Backup Camera System


SRich2015

Senior Member
Joined
Jul 23, 2017
Posts
269
Reaction score
119
Location
USA
Ram Year
2018
Engine
6.7 Cummins
This is what I bought/installed....from tailgatecamera.com

1 DODGE RAM Backup camera (2013-2018) Factory Integrated OEM Fit Backup Camera System

Ya That's not an OEM camera system. It's an "OEM Like" system. Check the instructions something is not set right.


SRich2015

Senior Member
Joined
Jul 23, 2017
Posts
269
Reaction score
119
Location
USA
Ram Year
2018
Engine
6.7 Cummins
What did you set with alfaOBD?


Jimmy07

Senior Member
Joined
Feb 23, 2017
Posts
3,249
Reaction score
2,905
Ram Year
2017
Engine
6.4 Hemi
Hey All...
I know that this subject has been discussed countless times here but I haven't had success in finding the answer here on this forum so....
My problem/issue is that I bought the OEM tailgate handle camera to replace the inoperable aftermarket camera the previous owner had mounted in the bumper. I installed the tailgate handle camera per instructions and went through all of the alfaOBD options for camera but still getting the blue unavailable screen....help?
Since you are getting the blue screen, the backup camera is activated correctly in the BCM. There’s only three things to check:
Power (fuse?)
Ground
Or, if the wires you inserted into positions 31&32 on the radio connector are reversed

OP
OP
BudsRam

BudsRam

Member
Joined
Aug 11, 2018
Posts
56
Reaction score
20
Location
Fayetteville, NC
Ram Year
2015 Ram 1500 Big Horn
Engine
Pentastar 3.6
SRich2015...both Rear View Camera options and the grid line setting
Jimmy07...I will be checking those 3 items tomorrow (off day)

Really appreciate your time guys!


BahlSacke

Member
Joined
Dec 4, 2018
Posts
34
Reaction score
7
Location
California
Ram Year
2016
Engine
6.7 Cummins
I'm about to pull the trigger on that same exact camera. Did you find out your issue by chance?


magician

Senior Member
Joined
Jun 19, 2016
Posts
359
Reaction score
131
Ram Year
2015
Engine
5.7 Hemi
2nd on the pins being reversed, it’s easier to do than you might think if your not familiar with multi pin connectors.

Good luck..

OP
OP
BudsRam

BudsRam

Member
Joined
Aug 11, 2018
Posts
56
Reaction score
20
Location
Fayetteville, NC
Ram Year
2015 Ram 1500 Big Horn
Engine
Pentastar 3.6
ok Guys....found my issue. I reread the destructions and reread them a few more times and realized I "read" the radio plug wrong and put the wires in the wrong place. Gonna get some more pin connectors and do it the right way on my next day off this coming Sunday. I did get the camera operational by temporarily connecting the yellow wire to #31 pin and black wire to #32 pin thru the back of the radio connector and putting my truck in reverse.

Again...SRich2015 & Jimmy07...I appreciate your replies/help.

OP
OP
BudsRam

BudsRam

Member
Joined
Aug 11, 2018
Posts
56
Reaction score
20
Location
Fayetteville, NC
Ram Year
2015 Ram 1500 Big Horn
Engine
Pentastar 3.6
I gotta wait a couple more days on the pin connectors Guys....After going to 3 different auto parts stores and a audio/video installer, with no luck in finding RAM/MOPAR connectors and given 4 and told that " these will work"(I knew they wouldn't but free is free), I went online and found a audio adapter wire connector for my Ram. I'm just gonna remove the two wires (yellow and Black) and install them into my connector at pin 31 & 32.

I'll keep the thread updated...

OP
OP
BudsRam

BudsRam

Member
Joined
Aug 11, 2018
Posts
56
Reaction score
20
Location
Fayetteville, NC
Ram Year
2015 Ram 1500 Big Horn
Engine
Pentastar 3.6

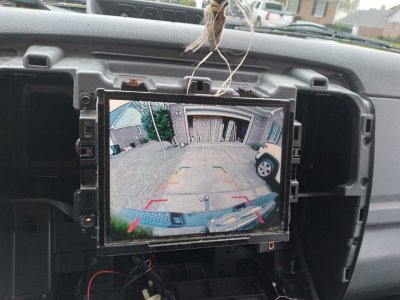

Mission complete... the adapter I used was the audio adapter for Dodge/Jeep/2009-2012. On Amazon. Only one I found that was close to my 2015 so took a shot...$14. I used a pin tool to remove the wires from the plastic connector (they were in #'s 21 & 22) and put the yellow in #31 and the black in #32 , used the pin tool to make sure the wires were seated in the radio connector and tested everything before I buttoned everything up. Here is the link for the 20201126_102232_1.jpg 20201126_102232_1.jpg adapter on Amazon

https://www.amazon.com/dp/B07RJWM7LP/ref=cm_sw_r_cp_apa_fabt1_mV8VFbSQEY99N?_encoding=UTF8&psc=120201126_102232_1.jpg

OP
OP
BudsRam

BudsRam

Member
Joined
Aug 11, 2018
Posts
56
Reaction score
20
Location
Fayetteville, NC
Ram Year
2015 Ram 1500 Big Horn
Engine
Pentastar 3.6
Just to update....
I've been having issues with the camera working fine then getting distorted screen when I put the truck in reverse. Contacted Tailgate camera and was told that my truck make/model had issues with camera product I bought . Working on getting another camera and/or fix.


BobSacomano

Senior Member
Joined
Jul 30, 2019
Posts
239
Reaction score
380
Location
North Texas
Ram Year
2015
Engine
3.6L V6
Hey All...
I know that this subject has been discussed countless times here but I haven't had success in finding the answer here on this forum so....
My problem/issue is that I bought the OEM tailgate handle camera to replace the inoperable aftermarket camera the previous owner had mounted in the bumper. I installed the tailgate handle camera per instructions and went through all of the alfaOBD options for camera but still getting the blue unavailable screen....help?

I had this exact problem and solved it by taking apart the coupler and applying a dab of electrical grease, recommended by someone here. Put it back together and it worked fantastic.

OP
OP
BudsRam

BudsRam

Member
Joined
Aug 11, 2018
Posts
56
Reaction score
20
Location
Fayetteville, NC
Ram Year
2015 Ram 1500 Big Horn
Engine
Pentastar 3.6
Update...
Got a new sent to me. Haven't installed it yet. Gonna try the dielectric grease on the coupler first...if it keeps giving me a distorted screen then I'll swap out cameras

OP
OP
BudsRam

BudsRam

Member
Joined
Aug 11, 2018
Posts
56
Reaction score
20
Location
Fayetteville, NC
Ram Year
2015 Ram 1500 Big Horn
Engine
Pentastar 3.6
Swapped in the new camera. Put dielectric grease on the coupler and still get a distorted screen every so often....guess it's something I'll have to live with...

OP
OP
BudsRam

BudsRam

Member
Joined
Aug 11, 2018
Posts
56
Reaction score
20
Location
Fayetteville, NC
Ram Year
2015 Ram 1500 Big Horn
Engine
Pentastar 3.6
Hey All,

I gotta new issue with the tailgate camera. The camera has been working but still getting the occasional distorted screen even after putting dielectric grease in the plug. Today I put my truck in reverse and all I get is a green screen.

WTF?
