Power inverter swap

[big red ram]

I'm adding an aftermarket inverter in place of the factory inverter & I can't find a wiring diagram for this. All I need to know is what's on pin 6&7. Green/white & green/light blue are the wire colors on the harness under passenger seat. Can aanyone tell me anything about these 2 wires ?



[SitKneelBend]

I'm adding an aftermarket inverter in place of the factory inverter & I can't find a wiring diagram for this. All I need to know is what's on pin 6&7. Green/white & green/light blue are the wire colors on the harness under passenger seat. Can aanyone tell me anything about these 2 wires ?

This site should get you the answer you need...

Mopar Connection Repair Kit

connectors.dcctools.com



[tnctx02]

This site should get you the answer you need...

Mopar Connection Repair Kit

connectors.dcctools.com

Planning this myself.
The link doesn't work anymore, do you happen to have a different link?
Thanks



[jawzs2]

Planning this myself.
The link doesn't work anymore, do you happen to have a different link?
Thanks

Yeah - they changed it

Mopar Connection Repair Kit

connectorrepairkit.mopar.com



[SaintMurdoc]

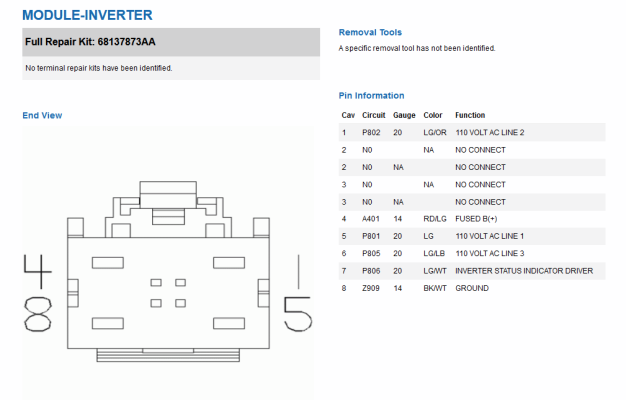

2016 pinout



[SaintMurdoc]

2016 pinout
