TPIS Success

[Jawsopter]

First, I would like to thank everyone that helped in figuring out my TPIS mess.

I have a 2011 Ram 3500, and was trying to get my TPIS system to work. Struggled with it for a while then it finally clicked. Anyone who has a Ram 10 - 12 should double check the wiring at the TPMS connector. Mine had the CAN+ and the CAN- backwards. Verify the pins before trying to program anything with AlfaODB. Long story short, it works........

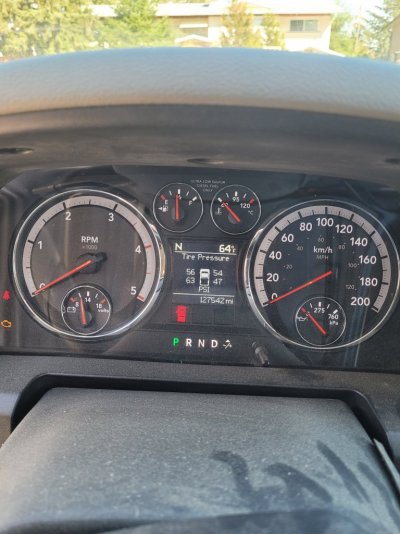

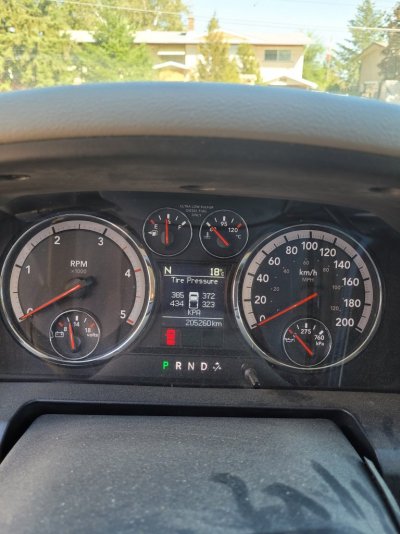

Attached are the schematics and photos to prove that it works, as well as a link for the sensors.

4 PCS TPMS SENSOR 68241067AB, 433MHZ Car Tire Pressure Monitoring System, fit for CHRSLER DODGE FIAT JEEP Grand Cherokee Wrangler : Amazon.ca: Automotive

4 PCS TPMS SENSOR 68241067AB, 433MHZ Car Tire Pressure Monitoring System, fit for CHRSLER DODGE FIAT JEEP Grand Cherokee Wrangler : Amazon.ca: Automotive

www.amazon.ca

Also include the previous post where it all started..

TPMS & TPIS

Hello Benny, I have researched TPMS and TPIS a fair bit and have a question for you. Im probably the only person trying to activate my TPIS on my truck, seems like everyone is trying to de-activate it ...LOL My truck is a 2011 Ram 3500 6.7 SLT and i have enabled the TPIS on the EVIC screen via...

www.ramforum.com

Thanks again.
Kevin



[OleDadsTruck]

The picture you posted of the connector, is that after swapping the pins or before?

I’m not home to check mine right now. But awesome job figuring that out, now I’ll hopefully to also be able to get mine to work after all this time.



[Jawsopter]

After
