Viper 300ESP Alarm Install 02 1500 Questions?

[Savatreatabvr]

I'm trying to install a Viper alarm in my truck but can't find a good ignition wiring diagram. I'm just using the ignition/starter interrupt but I don't know which wire under the dash to cut. Any help with diagrams or experience would be great!



[ViolentMouse]



[ViolentMouse]

The yellow one... that will interrupt the starter.



[Fast69Mopar]

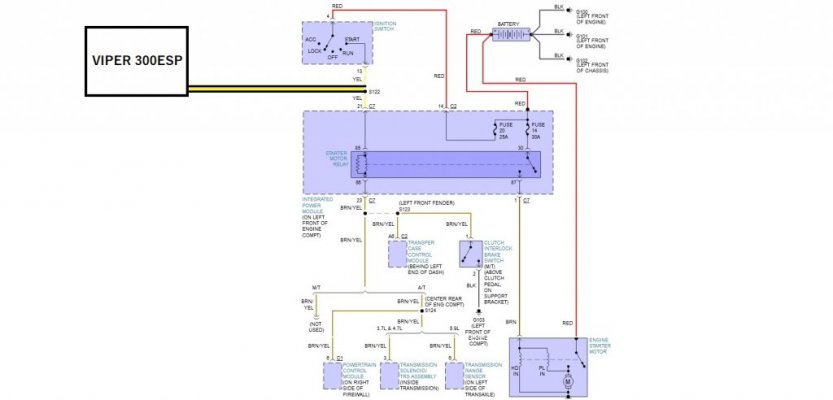

I'm trying to install a Viper alarm in my truck but can't find a good ignition wiring diagram. I'm just using the ignition/starter interrupt but I don't know which wire under the dash to cut. Any help with diagrams or experience would be great!

View attachment 467548

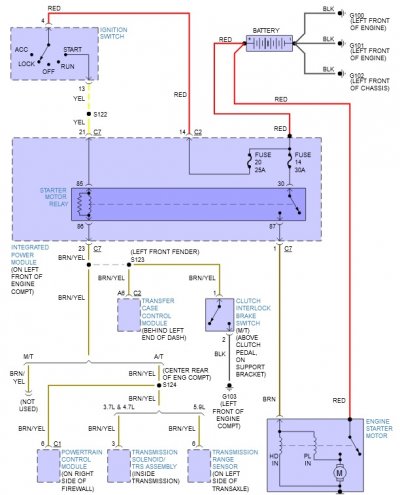

If you want to interrupt the starter circuit, look at the connector at the ignition switch. Remove the steering column upper and lower shrouds. Pin #13 Yellow wire is the starter relay circuit. If you connect here and arm the alarm this will disable the starter relay from operating.



[Savatreatabvr]

AWESOME! Thank you so much. So I guess I'll just T-Tap the wire?
