Quick back story on the setup.

DIY morimoto XB 35w ballast, ignitor and 4500k bulbs in factory projector headlights. Also used AlfaOBD to change BCM settings to keep the truck happy.

Everything has worked pretty much flawlessly till now. I figured being my first issue it was probably the bulbs. Took this as an opportunity to upgrade to 5k bulbs but that wasn't my issue. I was dreading it being the ballasts however both worked as expected.

Ordered a couple more ignitors for $25/per and I'm back up and running again. I took a few pics for those wanting visuals on how to place the equipment.

Inside of the headlight I now keep the ignitor as well as the High beam LED capacitor. I used a dremel to run the cables below the cap. A little dab of clear silicon keeps it sealed.
Pic with the cap sealed.

Then a couple of where I keep the ballasts.


Passenger


Driver.

I'll grab some shots of beam pattern hopefully this evening.

Can definitely say I'm still extremely happy with the product and the ability to see at night much better than factory equipment.


turkeybird56

Military Vet 1976-1996 Retired US Army
Military
Joined
Aug 2, 2018
Posts
18,762
Reaction score
42,968
Location
Central Texas
Ram Year
2019 Bighorn, 4 X 4, 3.21 rear, Bright Flame Red Pearl Coat, Mopar tonneau cover,Westin Bed rug
Engine
Hemi 5.7
Quick back story on the setup.

DIY morimoto XB 35w ballast, ignitor and 4500k bulbs in factory projector headlights. Also used AlfaOBD to change BCM settings to keep the truck happy.

Everything has worked pretty much flawlessly till now. I figured being my first issue it was probably the bulbs. Took this as an opportunity to upgrade to 5k bulbs but that wasn't my issue. I was dreading it being the ballasts however both worked as expected.

Ordered a couple more ignitors for $25/per and I'm back up and running again. I took a few pics for those wanting visuals on how to place the equipment.
View attachment 502996

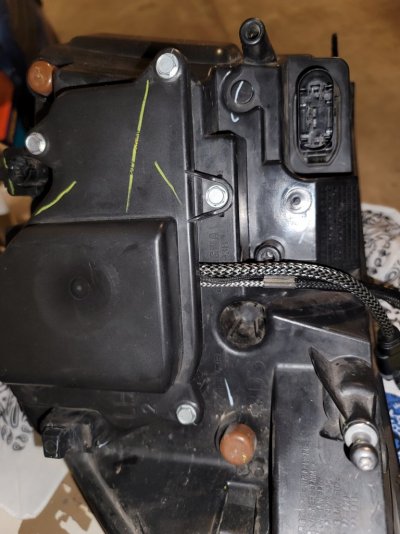

Inside of the headlight I now keep the ignitor as well as the High beam LED capacitor. I used a dremel to run the cables below the cap. A little dab of clear silicon keeps it sealed.
View attachment 502997
Pic with the cap sealed.
View attachment 502998

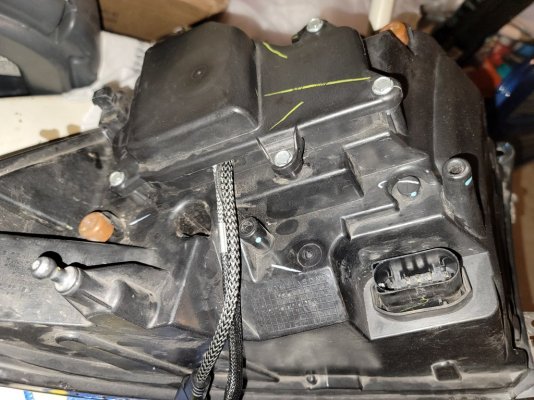

Then a couple of where I keep the ballasts.

View attachment 502999

Passenger

View attachment 503000

Driver.

I'll grab some shots of beam pattern hopefully this evening.

Can definitely say I'm still extremely happy with the product and the ability to see at night much better than factory equipment.
NE thing brighter is better then driving around with friggin Quads, IMHO... Nice lil write up on the DIY project.

OP
OP
RedSRT4Me

RedSRT4Me

Senior Member
Joined
Oct 28, 2015
Posts
2,734
Reaction score
2,086
Location
Scottsdale, Az
Ram Year
2015 CC Sport
Engine
5.7
Better late than never.

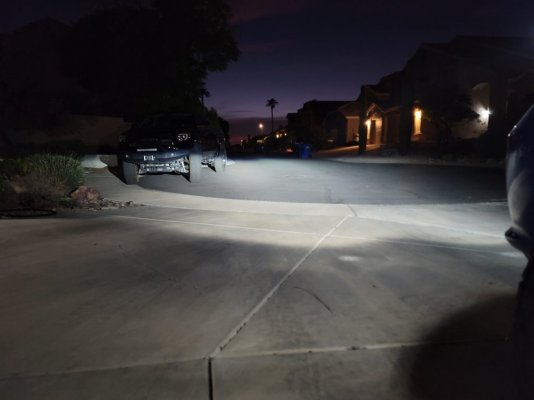

Various angles.


Passenger side

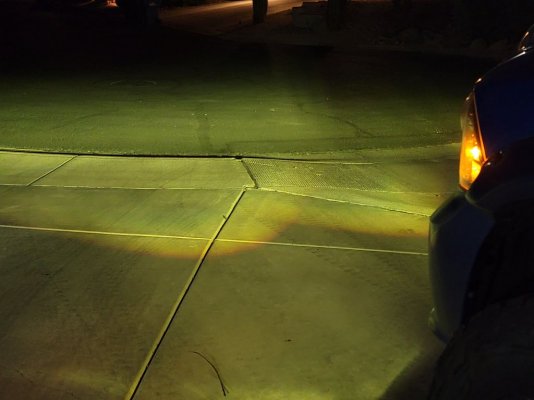

Fogs only. Morimoto LED w Lamin-X yellow tint. They have excellent cutoff so your not blinding people.


Brights are friggin' insane!!!


Full setup. Morimoto HID's 5000k bulbs, new ignitors, Morimoto 3 year old 35 watt ballasts. Morimoto LED 2.0 stroke high beams w decoders installed.

Very happy that Alfaobd allows these modifications without fuss!

Top
