2015 ram 3500 right side trailer blinker/brake doesn’t work, but right side running light does work when headlights are on

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

pitcherofnectar

Junior Member
Joined
Aug 17, 2022
Posts
10
Reaction score
1
Location
STL
Ram Year
2015
Engine
Cummins 6.7
It’s not the trailer, because this happens on every trailer I have. The right turn signal/right brake light doesn’t work on any trailer I connect, but when I turn on the truck’s headlights the low intensity red running light on the right side of the trailers does illuminate. On the truck, the right side light works totally fine, brake, turn signal and running lights all as normal. I have replaced the trailer connector on the truck, both the 4 pin and the 7 way sockets. No luck.

Do I need a new TIPM? New wiring harness? Hunt down the fault in the brake/turn wire and fix it? I know the harness has 3 sections with plugs in different parts of the truck but I can’t find which one has the fault or if it’s the TIPM itself not sending a signal. The fuse looks good


Burla

Senior Member
Military
Joined
Apr 28, 2012
Posts
23,115
Reaction score
44,461
Ram Year
2010 Hemi Reg Cab 4x4
Engine
Hemi

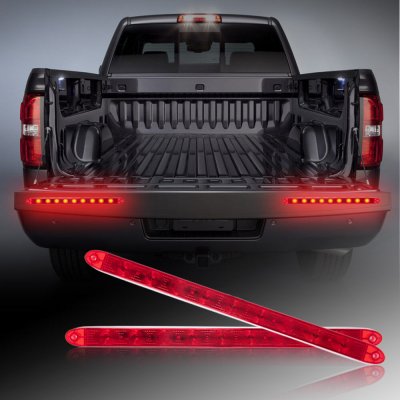

The truck is fine, I doubt it is TIPM. I'd try and use one of those cheap led lights and wire it to the wires going to brake light if it were me. Those cheap leds provide you a blinker and constant solid red, I do believe that would qualify as road legal but I'm not 100 on that. Sounds like maybe the wire from bumper connector to tipm is messed up?


OP
OP
P

pitcherofnectar

Junior Member
Joined
Aug 17, 2022
Posts
10
Reaction score
1
Location
STL
Ram Year
2015
Engine
Cummins 6.7
The truck is fine, I doubt it is TIPM. I'd try and use one of those cheap led lights and wire it to the wires going to brake light if it were me. Those cheap leds provide you a blinker and constant solid red, I do believe that would qualify as road legal but I'm not 100 on that. Sounds like maybe the wire from bumper connector to tipm is messed up?

I been Jerry rigging it for years, I want to actually fix the problem now. I do think there is a break in that line between the connector and the TIPM, and I want to find it and fix it, but my tech is telling me going down that road digging into the harness could cause more problems along the way. Does anyone know or have a diagram on the wiring harness showing what color wire this one would be? Or which hole I can test it on the mid-harness connectors?


mtnrider

Senior Member
Joined
Sep 25, 2014
Posts
3,164
Reaction score
3,407
Location
Georgia
Ram Year
2016
Engine
6.7 Cummins

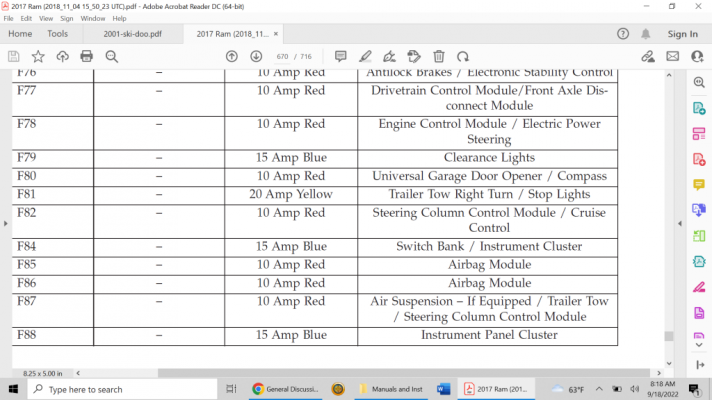

Have you checked the fuse? The right turn/brake are on the same fuse and separate from the truck (on the 4 pin).

Also, the 4 and 7 pin connections are completely different circuits in the truck. Are you saying neither work? If so I would look hard at the trailer again because the odds of both those circuits having the exact same issue is pretty rare

.

Last edited:

Burla

Senior Member
Military
Joined
Apr 28, 2012
Posts
23,115
Reaction score
44,461
Ram Year
2010 Hemi Reg Cab 4x4
Engine
Hemi
If a ground on the trailer was bad it could have blown a fuse, maybe even damaged TIPM now I think about it, this happened to my truck. I was just going to jerry rig it though, it is just a landscape trailer and I don't tow much to replace stuff. Good luck

Point being, if it was a trailer short that caused the damage and you didnt fix the trailer short, then you hook that trailer up again after fixing your truck, it will cause damage again.

Last edited:
OP
OP
P

pitcherofnectar

Junior Member
Joined
Aug 17, 2022
Posts
10
Reaction score
1
Location
STL
Ram Year
2015
Engine
Cummins 6.7
Have you checked the fuse? The right turn/brake are on the same fuse and separate from the truck (on the 4 pin).

Also, the 4 and 7 pin connections are completely different circuits in the truck. Are you saying neither work? If so I would look hard at the trailer again because the odds of both those circuits having the exact same issue is pretty rare

.
I will double check 4 vs 7 pins later today but it happens on all 3 trailers I own, and all three work perfectly normal on my wife’s jeep. Fuse looked fine and I was getting a flasher signal on a circuit tester from where the fuse goes, but I will replace it and see. Just wondering about the harness connection plugs under the chassis, if anyone knows which wire is the right trailer flasher and if so where it is located in that giant plug


mtnrider

Senior Member
Joined
Sep 25, 2014
Posts
3,164
Reaction score
3,407
Location
Georgia
Ram Year
2016
Engine
6.7 Cummins
I will double check 4 vs 7 pins later today but it happens on all 3 trailers I own, and all three work perfectly normal on my wife’s jeep. Fuse looked fine and I was getting a flasher signal on a circuit tester from where the fuse goes, but I will replace it and see. Just wondering about the harness connection plugs under the chassis, if anyone knows which wire is the right trailer flasher and if so where it is located in that giant plug

I may have mis-spoken on them being separate, they may actually be tied together. Here is the pinout for the 7 pin..


.
