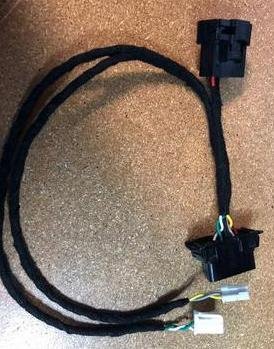

Now taking orders for RAM Security Module Bypass Harnesses. If you have a 2018 RAM or a 2019 RAM Classic and would like to perform diagnostics or make changes to the modules of your truck using tools like AlfaOBD or AutoEngenuity, this bypass is for you. Cost of the bypass is $55.

In order to facility the ordering of the bypass, I have created a website for the orders. Please visit www.securitymodulebypass.com to order a bypass.




FAQ

Does this allow access to all modules?
It has been tested connecting to the BCM and RFH. Since it bypasses the security module for both the CAN C and CAN IHS, almost all modules should be good. The one exception is the radio. The radio does not directly connect to the either CAN of the truck, it is hung off of a DMZ on the security module to protect the truck's CAN in case the radio would be comprised via the 4G cellular functionality.

Does this work with 1500, 2500, 3500, etc?
There are two different versions. One for the 1500s, and one for 2500s and up.

How long does it take to install and is the install permanent?

It take about 5 - 10 minutes to install. Installation instructions will be provided with your purchase. It can be removed in the same amount of time. The factory OBD2 port can be put back in place in less than 2 minutes without any tools.

What programs have been tested with the bypass?

At this point, AutoEngenuity, AlfaOBD, and Autel have been used with the bypass.

Should I leave the bypass installed at all times?
That is up to you. Installing the bypass does make the truck less secure by enabling the OBD2 port for use with diagnostic and configuration utilities not provided or authorized by FCA. That being said, the harness rewires the truck to be just like all previous model year RAMs. I would recommend that you remove the bypass before taking it to a dealer.

Can I use this on multiple trucks?
Yes. We have sold several of these already to dealers and third party shops who work on RAM trucks.

Last edited:

R.L.K.

Senior Member
Supporting Member
Joined
Dec 1, 2013
Posts
12,803
Reaction score
12,502
Location
Bristol , Tn.
Ram Year
2014 4X4 QC Express 6 speed auto 355 differentials
Engine
5.7 Hemi
That is Awesome !!

Sent from my SM-G930V using Tapatalk


jmant230

Junior Member
Joined
Oct 17, 2016
Posts
16
Reaction score
4
Ram Year
2018
Engine
6.7 Cummins
I will take one for my 2500. I will PM you.

Great work as always.


Gibbs

Senior Member
Joined
Dec 22, 2017
Posts
241
Reaction score
131
Location
GA
Ram Year
2018
Engine
6.7L Cummins
I need one of these harnesses, please. PM sent. Thanks!


Joe B

U.S. Navy Chief
Joined
Aug 14, 2018
Posts
184
Reaction score
150
Location
Pensacola, FL
Ram Year
2020
Engine
Cummins 6.4L
Looks like I will also need one of these. PM coming your way.


rreavis

Junior Member
Joined
Dec 6, 2015
Posts
12
Reaction score
5
Location
NC
Ram Year
2017
Engine
6.7 Cummins
Will this work with a 2017 2500?


Bowzer

Member
Joined
Jul 9, 2018
Posts
82
Reaction score
92
Location
Texas
Ram Year
Sold off the '18...maybe another soon.
Engine
Hemi 5.7
I'm in! Message sent over to you...


Joji91

Senior Member
Joined
Jul 31, 2016
Posts
300
Reaction score
59
Ram Year
2016
Engine
Hemi 5.7
Would the harness work on a 2018 charger?

Sent from my SM-N960U using Tapatalk


Lawsuit11

Senior Member
Joined
Sep 10, 2018
Posts
817
Reaction score
682
Location
Fort Worth, TX
Ram Year
2018 1500
Engine
Hemi 5.7
Now taking orders for RAM 2018 Security Module Bypass Harnesses. If you have a 2018 RAM and would like to perform diagnostics or make changes to the modules of your truck using tools like AlfaOBD or AutoEngenuity, this bypass is for you. Cost of the bypass is $45.




FAQ

Does this allow access to all modules?
It has been tested connecting to the BCM and RFH. Since it bypasses the security module for both the CAN C and CAN IHS, almost all modules should be good. The one exception is the radio. The radio does not directly connect to the either CAN of the truck, it is hung off of a DMZ on the security module to protect the truck's CAN in case the radio would be comprised via the 4G cellular functionality.

Does this work with 1500, 2500, 3500, etc?
There are two different versions. One for the 1500s, and one for 2500s and up.

How long does it take to install and is the install permanent?

It take about 5 - 10 minutes to install. Installation instructions will be provided with your purchase. It can be removed in the same amount of time. The factory OBD2 port can be put back in place in less than 2 minutes without any tools.

What programs have been tested with the bypass?

At this point, AutoEngenuity, AlfaOBD, and Autel have been used with the bypass.

Should I leave the bypass installed at all times?
That is up to you. Installing the bypass does make the truck less secure by enabling the OBD2 port for use with diagnostic and configuration utilities not provided or authorized by FCA. That being said, the harness rewires the truck to be just like all previous model year RAMs. I would recommend that you remove the bypass before taking it to a dealer.

Can I use this on multiple trucks?
Yes. We have sold several of these already to dealers and third party shops who work on RAM trucks. If you are planning on using the bypass on multiple trucks, let us know and we can customize it so that it is easier to use on a temporary basis.



I ordered my security Harness through Mike along with my 7 spd conversion harness and I just wanted to thank you for everything that you are doing, along with working with mike and doing what you guys are for the Ram Community. Could do it without you or Mike. I would be a lost soul trying to figure it out myself lol


Sent from my iPhone using Tapatalk


cubmedic

Senior Member
Joined
Dec 13, 2016
Posts
271
Reaction score
210
Location
Danville, Va
Ram Year
2023
Engine
Hemi 5.7 e-torque
Does this work on 2016 1500 to be able to use a tuner?
