To remove grille:
Under the hood there is the plastic cowl that covers the top of the grille that has 6 push clips that has to be remove and the cowl will come off. After that is off you'll see 4 10mm bolts that hold the grille. After they are removed pull out an upwards to get the two bottom clips in each corner to come out.
Remove emblem from grille:
You'll see 4 lock tabs behind the grille. Release the top one first the the two side ones and the emble will come off.
Taking emblem apart:
On the back off the emblem there is 2 holes with snap locks that have to be pushed out wards and the black backin will fold and can then be removed.
Cut a piece of plexiglass in the shape of the black backing and sand with 220 grit to fog the glass.
On the back of the chrome ram you will see 4 slots where the black backing tucks under the chrome. You'll need to shave the plexiglass so it will fit under them.
LED strip:
Place two 6" LED strips as shown
Next you'll have to make a small hole to pass the wire through
Reinstall the emblem:
You'll have to line the outside off the emblem with a 1/8" strip of 3M tape all the way around the emblem and stick in place
Reinstall the grille.
Hook up power:

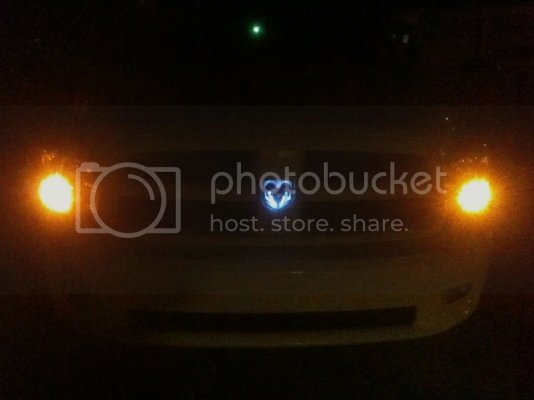

I tied into the running light on the pass. side. You can do what I did or put it on a switch.
Parts needed:
8"x10" plexiglass $3.00 (Lowes)
Pack of two 6" led flexible strips $12.00 (Autozoo)
18 gauge wire (I had)
Wire taps
The way I did it if you ever get tired of it you can put it back stock without any issues.
Disclaimer : I am in no way responsible for any damage done to your truck if damage accurs. Mod at your own risk.
Happy moddin
Under the hood there is the plastic cowl that covers the top of the grille that has 6 push clips that has to be remove and the cowl will come off. After that is off you'll see 4 10mm bolts that hold the grille. After they are removed pull out an upwards to get the two bottom clips in each corner to come out.
Remove emblem from grille:
You'll see 4 lock tabs behind the grille. Release the top one first the the two side ones and the emble will come off.
Taking emblem apart:
On the back off the emblem there is 2 holes with snap locks that have to be pushed out wards and the black backin will fold and can then be removed.
Cut a piece of plexiglass in the shape of the black backing and sand with 220 grit to fog the glass.
On the back of the chrome ram you will see 4 slots where the black backing tucks under the chrome. You'll need to shave the plexiglass so it will fit under them.
LED strip:
Place two 6" LED strips as shown
Next you'll have to make a small hole to pass the wire through
Reinstall the emblem:
You'll have to line the outside off the emblem with a 1/8" strip of 3M tape all the way around the emblem and stick in place
Reinstall the grille.
Hook up power:
I tied into the running light on the pass. side. You can do what I did or put it on a switch.
Parts needed:
8"x10" plexiglass $3.00 (Lowes)
Pack of two 6" led flexible strips $12.00 (Autozoo)
18 gauge wire (I had)
Wire taps
The way I did it if you ever get tired of it you can put it back stock without any issues.
Disclaimer : I am in no way responsible for any damage done to your truck if damage accurs. Mod at your own risk.
Happy moddin
