HD Lift and Tire Information

[Booner21]

Rough Country leveling kit...........35 x 12.50 x 20 Nankang AT............Helo 20"

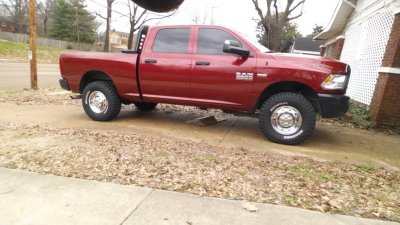

View attachment 153032 View attachment 153033

Same exact rig I have along with kit and tire size. I wiped my 4x4 stickers and debadged. Good looking wheels!

Sent from my SM-G920V using Tapatalk



[VicViper]

35x12.50 17 on steelies. 35's fit so easily without a lift.



[olyelr]

35x12.50 17 on steelies. 35's fit so easily without a lift.

View attachment 155927

Yep these fenders were made for 37’s.

Truck looks great with those red letters!



[G. Mcpherson]

What Wheels are those



[Rambojoe]

Ok, need some help. I started this thread back in August because I was going to level my truck. Well, it's been leveled for 6 months and 7k miles and I now have what my dealership says is vibration related to my 2" level kit. It buzzes pretty bad between 62-75 mph and they road force balanced my tires but cannot get rid of it. I called Tuff Country and they have no tech notes in there system about this issue in a 2016 2500.

Any ideas, I'm leaning toward a driveshaft issue but find it hard to believe a 2" lift would cause it



[olyelr]

Ok, need some help. I started this thread back in August because I was going to level my truck. Well, it's been leveled for 6 months and 7k miles and I now have what my dealership says is vibration related to my 2" level kit. It buzzes pretty bad between 62-75 mph and they road force balanced my tires but cannot get rid of it. I called Tuff Country and they have no tech notes in there system about this issue in a 2016 2500.

Any ideas, I'm leaning toward a driveshaft issue but find it hard to believe a 2" lift would cause it

Buzzes?

I would take the time (what, a hour or less?) and simply remove the leveling spacers and go for a test drive.



[mtnrider]

Buzzes is kind of a weird one? Never hear anyone with that kind of noise before. Most of the time people end up with a "clunking" noise of some sort (loose track bar, worn ball joints etc.)

Where is the sound coming from, front or rear? You mentioned drive shaft that's why I ask.

.



[Rambojoe]

Thanks guys. When I say buzz it's not tire vibe but more of a chassis vibe, the steering wheel is the recipient of the vibration therefore I called it buzz.
Instead of taking the spacers out which would take me more than an hour, can I just take the driveshaft out to see if that's what it is without hurting anything?



[mtnrider]

Thanks guys. When I say buzz it's not tire vibe but more of a chassis vibe, the steering wheel is the recipient of the vibration therefore I called it buzz.
Instead of taking the spaces out which would take me more than an hour, can I just take the driveshaft out to see if that's what it is without hurting anything?

Are you taking the front drive shaft? If so that isn't your problem, it doesn't move unless you are in 4x4. These trucks have the axle disconnect system (CAD)

Some of the "normal" front end issues that come to mind would be more clunking on bumps etc. then what you seem to be feeling (those would be ball joints, loose track bar)

Maybe a bad wheel bearing or axle u-joint? Jack the front end off the ground and see if you have any slop in the wheel bearings? You can check the u-joints for binding with it jacked up turn the wheels all the way to one side and spin the wheels. If they bind and try to straighten out the wheel the joints are probably binding. If they spin and the wheel stays turned they are probably ok?


.



[Rambojoe]

Are you taking the front drive shaft? Is so that isn't your problem, it doesn't move unless you are in 4x4. These trucks have the axle disconnect system (CAD)

.

Yeah I was. Well crap, guess I need to take the spacers out. The dealer made it sound like it was a driveshaft angle issue that's why I thought if I took out I could verify it.



[mtnrider]

Yeah I was. Well crap, guess I need to take the spacers out. The dealer made it sound like it was a driveshaft angle issue that's why I thought if I took out I could verify it.

I edited my post above with some ideas. May be worth checking if you have a jack and some stands?

I honestly don't feel the spacers would cause what you are feeling but I can't be 100% sure. Maybe if the alignment was way off? Just don't know for sure
.



[Rambojoe]

Are you taking the front drive shaft? If so that isn't your problem, it doesn't move unless you are in 4x4. These trucks have the axle disconnect system (CAD)

Some of the "normal" front end issues that come to mind would be more clunking on bumps etc. then what you seem to be feeling (those would be ball joints, loose track bar)

Maybe a bad wheel bearing or axle u-joint? Jack the front end off the ground and see if you have any slop in the wheel bearings? You can check the u-joints for binding with it jacked up turn the wheels all the way to one side and spin the wheels. If they bind and try to straighten out the wheel the joints are probably binding. If they spin and the wheel stays turned they are probably ok?


.

The dealer checked it all and could not find a root cause but told me because of the lift they couldn't call FCA to dig deeper. I'm going to get it in the shop and jack up the front end. I had read about alignment being an issue somewhere but not sure what it was, caster maybe??

Also we are talking about a 29k mile truck. Warranty is up in 70 days

Thanks for the help



[brandonjansen]

Ok, need some help. I started this thread back in August because I was going to level my truck. Well, it's been leveled for 6 months and 7k miles and I now have what my dealership says is vibration related to my 2" level kit. It buzzes pretty bad between 62-75 mph and they road force balanced my tires but cannot get rid of it. I called Tuff Country and they have no tech notes in there system about this issue in a 2016 2500.

Any ideas, I'm leaning toward a driveshaft issue but find it hard to believe a 2" lift would cause it

It looks like you're running aftermarket wheels in the picture? Hard to tell. If so, were hub rings installed with them to make them hub centric rather than just relying on the lugs? If not, that may be your issue. It is very common to have a vibration/wobbling issue at highway speed without hub centric wheels. You would feel that feedback in the steering as well as you've described.

I highly doubt your leveling spacers are the problem. If the alignment is in spec with them installed they shouldn't be causing an issue at all.



[Rambojoe]

They are the factory 20" wheels and I agree on the spacers. Guess I need to remove them anyway then I can take it back to them



[Rambojoe]

Well, I took my leveling kit out today and went for a short drive. It is improved but still there. I'm guessing there is something with the driveshaft but not sure yet, it may be in the diff as I noticed it on decel today too.
For the record, I will not be going back to the level kit as the truck rides so much better without it.



[warwickram]

got some new wheels to go wi th my thuren level



[G. Mcpherson]

Looks Good. Had those on my 16 2500



[DarthMegaHD]

Well, I took my leveling kit out today and went for a short drive. It is improved but still there. I'm guessing there is something with the driveshaft but not sure yet, it may be in the diff as I noticed it on decel today too.
For the record, I will not be going back to the level kit as the truck rides so much better without it.

My guess is hub rings



[Rambojoe]

My guess is hub rings

Hub rings? They are factory wheels, do they use them?



[RoadRamblerNJ]

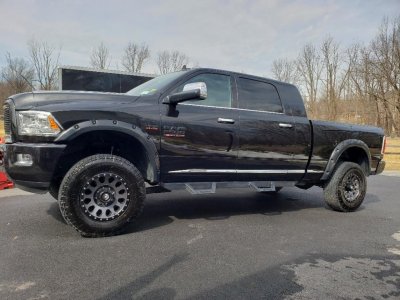

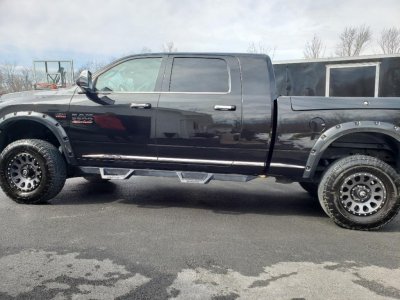

got some new wheels to go wiView attachment 158841 View attachment 158842 th my thuren level

Sits nice.
You ever take it to the Drive-In & sit in the bed? I've been to the Warwick drive-in with mine 3 or 4 times, lounge chairs in back. Lol.
