How To Add rear Park assist

[SHERMAN ROBBINS]

I won't be able to complete the front today all parts are ready to install but the good old USPS has had the parking sensors circling Dallas for the last 4 days going to every post office except mine to be delivered so hopefully Monday will be the magic day I complete this.



[skuppy069]

Holes drilled in front bumper

View attachment 201008

View attachment 201009

View attachment 201010

That looks really good man



[SHERMAN ROBBINS]

That looks really good man

Thank You!! I really hope I can wrap this up tomorrow Lord willing.



[GWR Ram]

Sherman what gauge wire did you use?

Also what size holes did you drill in your bumpers?

Clean looking fabrication and install!!



[SHERMAN ROBBINS]

Sherman what gauge wire did you use?

Also what size holes did you drill in your bumpers?

Clean looking fabrication and install!!

I used 18 gauge got it on Ebay 6 rolls 100ft each for like 35$ The bit I used I got on amazon the hole size 1-1/8 inch this is the bit I used
Innetoc 3/8" Shank Titanium Step Drill Bit, 1/4' to 1-3/8' in 1/8' Increments with SafePlastic Case|10 Steps



[SHERMAN ROBBINS]

On the front I measured 2 inches over from the plate and 1 inch down from the bend in the bumper where they crossed was my center point for my bit. Then from that center point they are 15 inches apart center to center. The only difference was the third sensor on each side is I measured 1-1/4 down from the bend in the bumper instead of the 1inch to acct. for the upward curve in the bend of the bumper.



[GWR Ram]

Thank you for the info.



[skuppy069]

I won't be able to complete the front today all parts are ready to install but the good old USPS has had the parking sensors circling Dallas for the last 4 days going to every post office except mine to be delivered so hopefully Monday will be the magic day I complete this.

Did you buy the Dorman sensors ?



[SHERMAN ROBBINS]

Thank you for the info.

Your welcome



[SHERMAN ROBBINS]

Did you buy the Dorman sensors ?

No I bought Bosch. Ebay had them for $18.00 each plus 5% off for each one after the first one.



[SHERMAN ROBBINS]

Went ahead and wired everything today so when the parking sensors come I can just plug them in. Pics of wire harness install.



[SHERMAN ROBBINS]

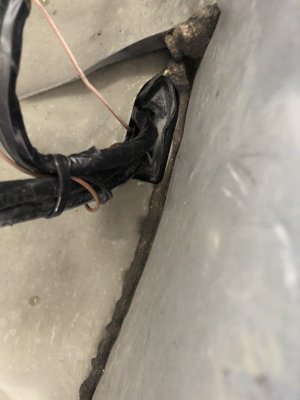

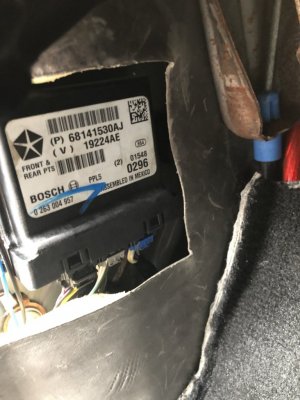

Underside of truck entry location + inside module all connections plugged in



[SHERMAN ROBBINS]

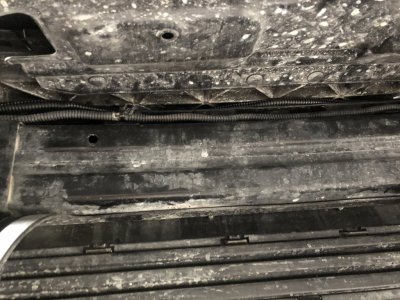

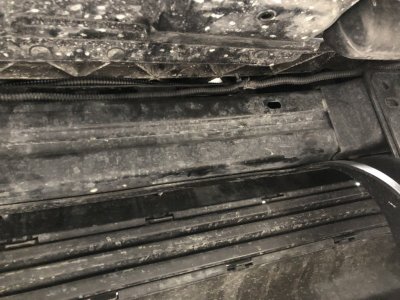

Front bumper with harness connections. It takes longer to install the front harness because of location of sensors and how the bumper is enclosed. Skuppy069 was the metal bumper any easier? My bumper had a plastic shield behind the plastic outter bumper.



[skuppy069]

Front bumper with harness connections. It takes longer to install the front harness because of location of sensors and how the bumper is enclosed. Skuppy069 was the metal bumper any easier? My bumper had a plastic shield behind the plastic outter bumper.

View attachment 201090

I bought a new aftermarket bumper
Which was a project on it .
It was a steel bumper
The harness took me about 20 mins to run .
Pretty much open on my bumper



[SHERMAN ROBBINS]

I bought a new aftermarket bumper
Which was a project on it .
It was a steel bumper
The harness took me about 20 mins to run .
Pretty much open on my bumper

Ok everyone who tries this with plastic bumper their is another plastic shield on the inside of the bumper that prohibits direct access to where the harness needs to sit for direct access. You will need to remove the bumper in order get the harness in the proper place.



[skuppy069]

No I bought Bosch. Ebay had them for $18.00 each plus 5% off for each one after the first one.

Have tried them before etc ?



[SHERMAN ROBBINS]

Have tried them before etc ?

Yes this is what I have installed in the back.



[skuppy069]

Yes this is what I have installed in the back.

Do you have a part number by chance ?
Thanks



[SHERMAN ROBBINS]

Do you have a part number by chance ?
Thanks

1EW63RXFAA



[SHERMAN ROBBINS]

1EW63RXFAA

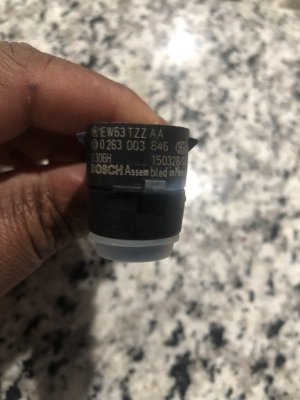

Here's a pick of the sensors these are the wrong ones the seller shipped the wrong part this time so the correct part# 1EW63RXFAA is on the way.
