How To Add rear Park assist

Discussion in '4th Gen DIY' started by skuppy069, Oct 6, 2018.

  1. skuppy069

    skuppy069 Senior Member

    Posts:
    709
    Likes Received:
    284
    Joined:
    Feb 26, 2017
    Location:
    canada alberta
    Ram Year:
    2018 1500 cc
    Engine:
    hemi 5.7
    DB87BBFB-AA8C-47B0-84A6-3FD4FE195B63.jpeg Over the last few weeks I was working on adding rear park assist to my 2018 ram 1500
    I used all oem parts except for the harness I made to go from the park assist module to the rear of the truck .

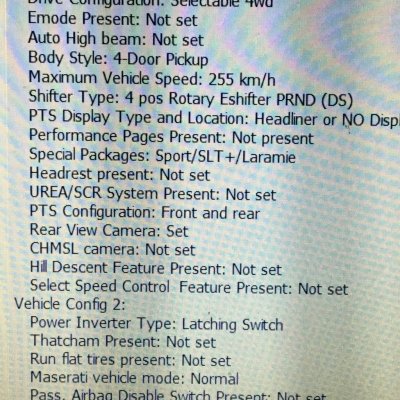

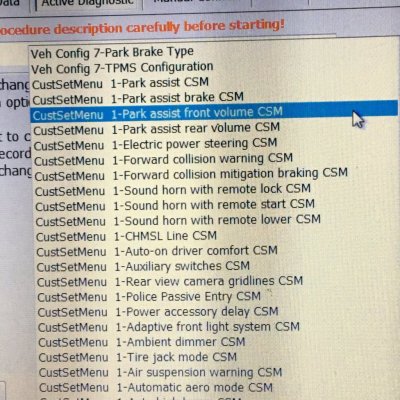

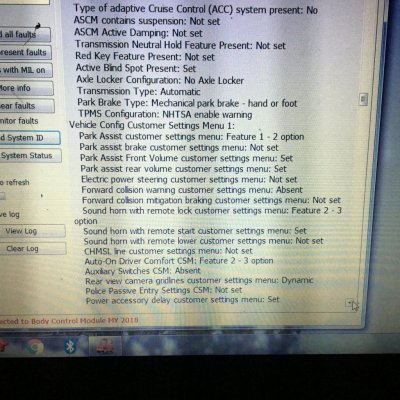

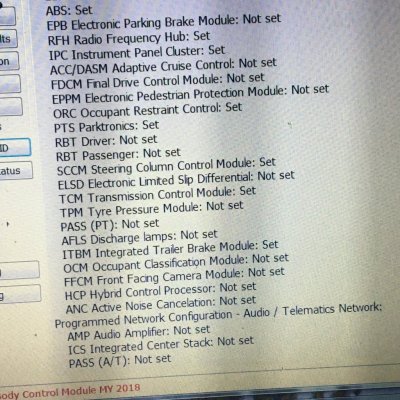

    I used Alfa obd and Mgrimm bcm id details from the Alfa ond diy and I now have oem rear park assist .
    I will post the parts I used to get the job done .
    It ended up being a expensive project in my eyes .
    So the parts are as follows

    Bezel for the bumpers needed four of them .
    Part no : 5lt35zzzaa-001

    Jumper harness for the rear
    Part no : 680318200AA-001

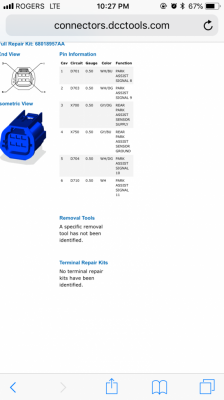

    Then I bought a repair kit for the connector and pins to plug into the jumper harness
    Part no : 68018957AA-001

    Then the rear park assist module
    Part no 68204477AF

    Then the park sensor itself needed four of them
    Part no :1EW63TZZAA

    I drilled my own holes in my rear bumper .
    Painted the bezels chrome to match my chrome bumper as best as possible .
    The only part I still need is the new multi switch for the dash to add the button itself
    The system seems to be on automatically once I added the codes in the bcm

    So the harness that runs from the park assist module to the rear of the truck is the only part that i made per say .
    Deere guy had the two plugs with wire ends sticking out of them that i extended to get too the necessary locations .Thansk Deere guy for sending those out to me .
    I have been in contact with m2mods along this project .

    I will post up some pics with the schematic and where I connected on the truck later on this Evening .

    This is my first right Up so please be patient .

    TheEnder, Spydieee, gixxer and 6 others like this.
  2. Ricks Ram

    Ricks Ram Senior Member

    Posts:
    4,372
    Likes Received:
    3,261
    Joined:
    May 1, 2015
    Ram Year:
    2014
    Engine:
    Hemi 5.7
    Well done! I have thought about rear park assist as well but as you mentioned it's really expensive. That being said if we could find bumpers off of wrecked trucks with the park assist it would lower the cost quite a bit. My truck is an express so I would have to find bumpers off of a Sport with the feature the same color as my truck so that would probably be a lot more difficult than trying to find some Chrome Laramie or Bighorn bumpers.

    Sent from my SM-G960U using Tapatalk

    Cesar592, Mpgrimm2 and skuppy069 like this.
  3. skuppy069

    skuppy069 Senior Member

    Posts:
    709
    Likes Received:
    284
    Joined:
    Feb 26, 2017
    Location:
    canada alberta
    Ram Year:
    2018 1500 cc
    Engine:
    hemi 5.7

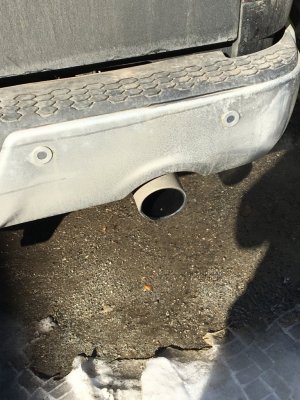

    I drilled my own holes in my bumper

    Ylikessu likes this.
  4. skuppy069

    skuppy069 Senior Member

    Posts:
    709
    Likes Received:
    284
    Joined:
    Feb 26, 2017
    Location:
    canada alberta
    Ram Year:
    2018 1500 cc
    Engine:
    hemi 5.7

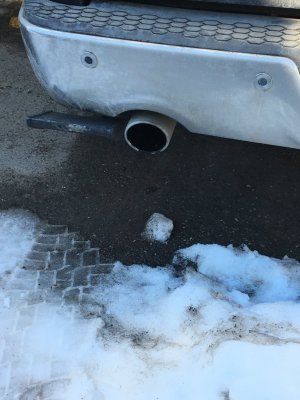

    These are my sensors installed
    I’m probably going to paint the sensors chrome as well
    I tried using 1a auto sensors with no luck .
    They were a 100 bucks for four but didn’t work and had to fork out the big bucks for the oem ones .



    Mpgrimm2 likes this.
  5. skuppy069

    skuppy069 Senior Member

    Posts:
    709
    Likes Received:
    284
    Joined:
    Feb 26, 2017
    Location:
    canada alberta
    Ram Year:
    2018 1500 cc
    Engine:
    hemi 5.7

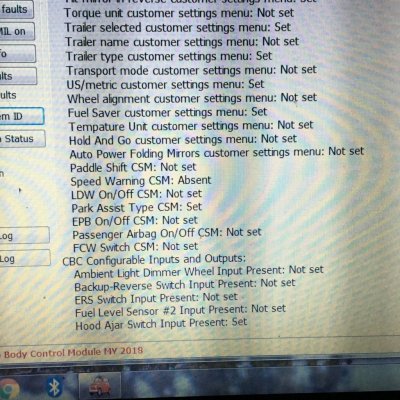

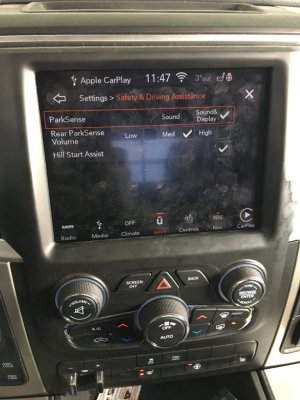

    Here is a pic of settings in Uconnect


    Mpgrimm2 likes this.
  6. skuppy069

    skuppy069 Senior Member

    Posts:
    709
    Likes Received:
    284
    Joined:
    Feb 26, 2017
    Location:
    canada alberta
    Ram Year:
    2018 1500 cc
    Engine:
    hemi 5.7
    So these are the two connectors that I used to make the harness that goes from the park asssit module to the connector that then plugs into the jumper harness .



    gixxer and Mpgrimm2 like this.
  7. skuppy069

    skuppy069 Senior Member

    Posts:
    709
    Likes Received:
    284
    Joined:
    Feb 26, 2017
    Location:
    canada alberta
    Ram Year:
    2018 1500 cc
    Engine:
    hemi 5.7

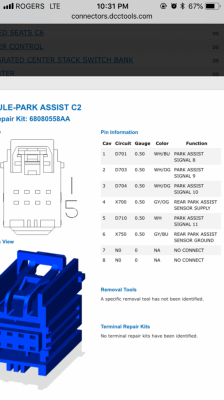

    Then this is the connector that makes the module connects to the truck .Deere guy sent me the pins and the connector so i could connector to the can c .
    Then when I was running my wires to the back of the truck I ran 7 of them roughly 20 feet long .
    I will take some pics of how I came out of the truck and where i soldered my connection for the power off the tail gate connector .
    6 for the repair connector and one for the 12 volt supply that comes off the camera run relay circuit .
    It actually is the same circuit that the park assist is suppose to be on .
    I just stripped some insulation off at the connector at the tail gate connector and then soldered my wire onto it and than taped up the connection
    I then added the ground at the passenger kick panel for the park assist module .
    I will post some pics later today .


    Mpgrimm2 likes this.
  8. Kernal Clink

    Kernal Clink Senior Member

    Age:
    47
    Posts:
    130
    Likes Received:
    109
    Joined:
    Sep 26, 2018
    Location:
    27370
    Ram Year:
    2018
    Engine:
    3.6L Pentastar
    Ok, call me stupid. What does "park assist" do exactly and what do you mean by "expensive".

    If that is the little sensor things that make all the noise every time you get close to something then they should call it impact avoidance.

    tidefan1967 likes this.
  9. BWL

    BWL Embrace the skeptisism

    Posts:
    6,065
    Likes Received:
    5,878
    Joined:
    Oct 14, 2017
    Location:
    BC Canada
    Ram Year:
    2017
    Engine:
    hemi 5.7
    In my experience its that thing that chimes every time you put the truck in reverse to say park assist disabled and leaves a note in the evic to tell you it needs service.

  10. skuppy069

    skuppy069 Senior Member

    Posts:
    709
    Likes Received:
    284
    Joined:
    Feb 26, 2017
    Location:
    canada alberta
    Ram Year:
    2018 1500 cc
    Engine:
    hemi 5.7

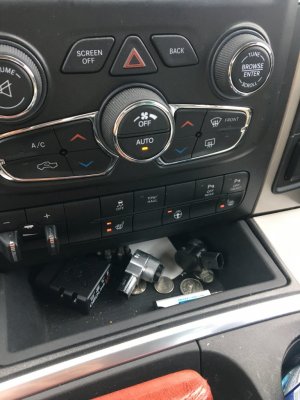

    So I installed my new multi switch that has both front and rear park assist buttons .
    The rear button turns the rear park assist when pressed etc .
    The front assist button is illuminated to show the system is off .It will be this way until I add the code for the front and get all components in place

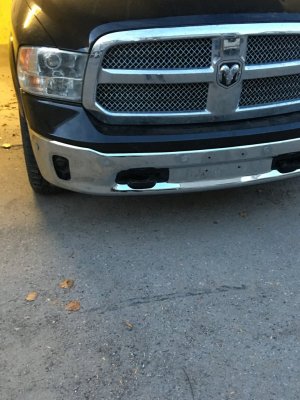

    I am in the process of getting the front sensors done now.
    I should have it done in a few weeks or less
    I bought some dorman Park sensors
    Part no :684-007 and I just temporarily plugged them into the rear jumper harness and it thru no service park assist which is awesome .
    They are like 38 Canadian versus the dealership at 170 a piece
    When the front is done I will know for sure if the sensors are working correctly .
    I think it will work fine based on previous test as the 1a auto ones made the service park assist come in instantly when the truck was started .

    Tim7139 and Mpgrimm2 like this.
