Hey all, thought I would throw up some pictures from my PacBrake filter relocation I did a couple days ago. In a 2018 Ram 1500, 5.7L Rebel.

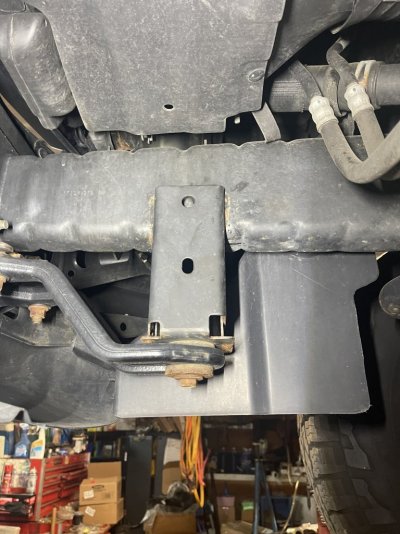

Mount location, front right of the truck.

Filter base mounted. Tip here, use an open ended wrench with a piece of electrical tape spanned across the opening to hold the nut while you snake it in to the mounting "box". I thought this was going to be the trickiest part, nope, easy peazy.

Whoops, I screwed up, can't get the 90's on, not enough clearance, pull it off, and reinstall!

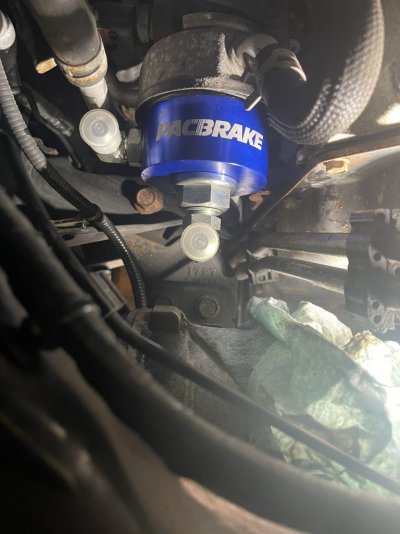

Let's get the oil filter adapter put on. Learned from above and put the side 90 on first this time! 1 1/4" wrench is your friend here, need it for the center adapter stud.

Getting the lines plumbed. Again, made a mistake here. The lines appear to be the same but one is about 3/4" shorter. Was having a bugger of a time trying to get the center hose on. Happened to look at the install diagram and saw 2 different size lines in the picture. Sure enough, swapped the lines, right on! Short hose goes center to center.

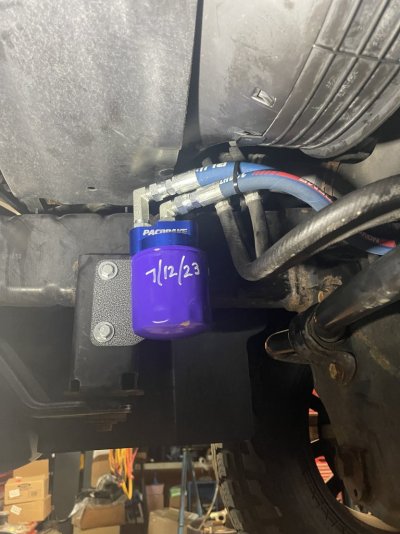

Ahhh, I can finally use the larger size filter! RP 20-820.

My normal fill was 6.5q PUP and 16oz Lubegard. New fill is 7q PUP and 16oz Lubegard, so an overall increase of 1/2q. Ran her for a bit, check for leaks, perfect!

Overall the job took just over an hour, that's with my 2 mistakes. Quality of the parts, all I can say is WOW!!! All billet, hose quality os out of this world, even all the fittings are aircraft fittings so alignment was a piece of cake!

Can't wait for the next nice clean and easy oil change!!!
