Quad LED Projector Retrofit - 4 LED Projectors!! RGB Everything!!!

[OnSale]

Just got done building these. The lenses are not sealed in these pictures so they have fingerprints and dust on them. They will be way cleaner when I go to reseal them.


Whats Inside The Headlights:
- OEM 09-18 Ram Quad Headlights
- Morimoto M-LED Projectors (low beam)
- Profile Performance Hi-Lens Multi-Lens LED Projector (high beam)
- Apollo 3.0 Black Series Shrouds Custom Fit
- Profile Prism RGB Demon Eyes
- Profile Prism 70mm Halos
- Profile Prism 09-18 Ram "Fitted" RGB Halos
- Profile Performance 3157 Switchback Bulbs
- Morimoto HD Resistors for 3157 Switchback Bulbs
- Morimoto XBT Bluetooth Controller
- Morimoto 9006-H11 Adapter Plugs
- Morimoto Hightbeam Spliters
- Morimoto Stand Alone Canbus Adapters (for low beam)
- 4 TRS Cable Glands
- Custom Black Paint and Silver Mettalic Paint
+ tons and tons of other little things I cant remember at the moment.

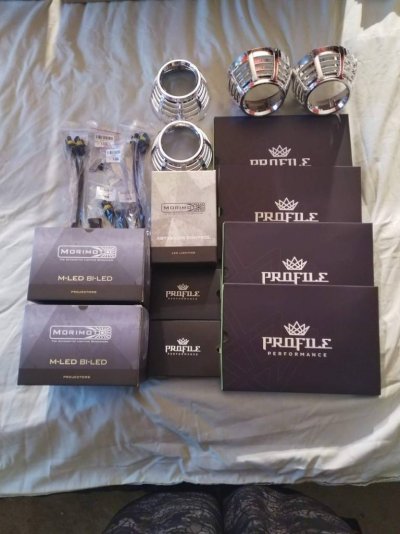

--- Pre-Build Pictures:

--- New Work/Test Bench Complete!!

--- Paint Process:

Sent from my SM-G935P using Tapatalk



[OnSale]

-- Testing Products & Test Fitting:

--- Complete - Test Alignment - Not Resealed Yet:

--- On my truck before reseal - lowbeam MLED only:

I've put so much money into these and so much time and customization to make the full size 3" projector and shroud fit inside the housings. Tons of dremel use; grinding, cutting, sanding, repeat.

Love how they turned out!!!

Sent from my SM-G935P using Tapatalk



[Buddy]

Huge props on all your hard work and time!!!! Lights look fantastic!!!!



[quietpeen]

looks good



[OnSale]

Huge props on all your hard work and time!!!! Lights look fantastic!!!!

Thanks. Lemme tell ya, Large (3" or full size) shrouds require a TON of modifications to make then fit into quad housings. I even had to trim the inside bezel some too but totally worth it. I love the all led projector look and they light up so fast and so bright. Best money I've spent on my truck.

Sent from my SM-G935P using Tapatalk



[OnSale]

looks good

Thanks bud

Sent from my SM-G935P using Tapatalk



[MADDOG]

I like 'em! Nicely done.



[Spindrifter]

wow, quite the undertaking and stellar results! Nicely done, looks great.



[RusslRam]

Great work. Must agree with the 3" projector. Lot of work but well worth it

Sent from my Pixel using Tapatalk



[OC455]

Nicely done. Working on a set with Mini D2S. Can't do full LED like you did. #1, those MLEDs are not cheap...LOL. #2, I think with the extremes that upstate NY experiences, I would be worried about ice build up on the headlights.

Those look great!!!



[2010 Infantry Vet]

Why would you paint the side reflectors and not just buy clear ones? There is no way that is goinh to pass state inspection.



[RedFalcon]

I painted my side reflectors black and have passed inspection twice without any issues



[RusslRam]

Painted my first set of lights never had a problem with side marker. I think that's just a safety standard for the car companies not so much state laws.

Sent from my Pixel using Tapatalk



[OnSale]

Why would you paint the side reflectors and not just buy clear ones? There is no way that is goinh to pass state inspection.

1. If i wanted clear corners, i could have bought $65 clear corners. Obviously i have well over $1,000 into these lights, close to $2,000, painting my corner markers was not a "money issue".

2. Because they are my lights, and it was my choice, and I chose to paint them to match the Projector Shrouds.

3. Many Ram owners who retrofit/custom paint their headlights will paint the corner markers. Ive yet to hear of one person having an issue when it comes to inspection.

I painted my side reflectors black and have passed inspection twice without any issues

Exactly. My last set of custom lights i built, OEM TYC Replicas had paint matched corner markers.

Painted my first set of lights never had a problem with side marker. I think that's just a safety standard for the car companies not so much state laws.

Those lights like nice!!



[2010 Infantry Vet]

1. If i wanted clear corners, i could have bought $65 clear corners. Obviously i have well over $1,000 into these lights, close to $2,000, painting my corner markers was not a "money issue".

2. Because they are my lights, and it was my choice, and I chose to paint them to match the Projector Shrouds.

3. Many Ram owners who retrofit/custom paint their headlights will paint the corner markers. Ive yet to hear of one person having an issue when it comes to inspection.




Exactly. My last set of custom lights i built, OEM TYC Replicas had paint matched corner markers.



Those lights like nice!!

Your state must be different than PA. The orange illumination has to be seen from corners of headlights. If your state doesnt require that, then rock on. I didnt say it looked bad. I think it looks good.



[Gero]

Interested in retrofitting mled someday but no cars to do it on lol. Did the mh1v7 on the ram, doing matchbox 2.0 for the ram fogs and 4tlr on the odyssey.

Do the mled flicker when being filmed at 60fps rate?



[OnSale]

Your state must be different than PA. The orange illumination has to be seen from corners of headlights. If your state doesnt require that, then rock on. I didnt say it looked bad. I think it looks good.

I live in PA. Never had an issue. I guess if you run across an a-hole mechanic then it might be an issue but my dealership knows me and doesnt care. I have quite a few "off-road use only" parts on my truck.

Interested in retrofitting mled someday but no cars to do it on lol. Did the mh1v7 on the ram, doing matchbox 2.0 for the ram fogs and 4tlr on the odyssey.

Do the mled flicker when being filmed at 60fps rate?

No, I dont remember noticing it but the Profile Prism Halos (both fitted and circular) and the demon eyes flickered like crazy. I had to backup a good 15 feet for it to stop. Anything any closer and you could see each individual LED and it flickered hardcore and the color morphed into some weird ****.

Sent from my SM-G935P using Tapatalk



[WilliamS]

those are sweet



[RusslRam]

Do your RGB switch when you turn on your truck. Just wondering because mine go to a light blue when truck is running but go back to what ever color it was on when truck is off. Not sure if it causes interference or just some safety default.

Sent from my Pixel using Tapatalk



[craigsez]

Nice job,a ton of work....Dont wanna ask what it cost ya either....I was on the headlight revolution site lookin for lights for my freightliner and saw that they sell a full led converted headlight both hi and low...Looked nice and i was sold till i saw the $$$......Not gonna tell you all the price,ill let you folks go see for yourself..lol..
