WIRING HARNESS

[Ramman70]

Can anyone give me the part number for the wiring harness that has the connector that plugs into the ABS CONTROL MODULE ON a 2020 Ram 1500 5.7L Hemi Gas 8 cyl
VIN NUMBER: 1C6SRFBT0LN190180

Thanks so much for the help!!



[Dredger]

You'd have more luck if you sent that question to Benny @AllMoparParts.com



[AllMoparParts.com]

Hi,

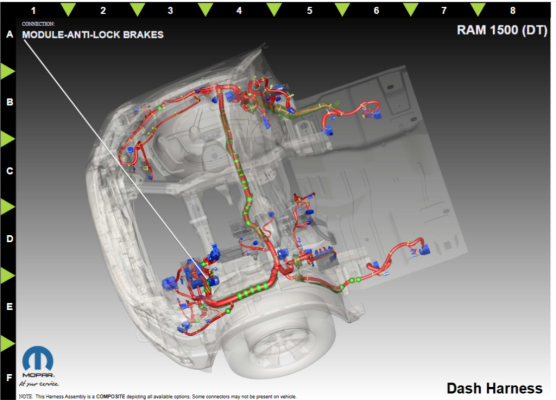

It plugs into the Dash Harness 68430633AB




- Benny



[Ramman70]

Does it also plug into the ABS CONTROL MODULE?

Thanks so much!!



[AllMoparParts.com]

Yes it does

Your welcome!
- Benny



[Ramman70]

Do you sell this wiring harness?



[Ramman70]

One more thing does it plug into the wheel sensors and the ABS SYSTEM LIKE IT DOES NOW.

Thank you so much!!



[AllMoparParts.com]

Do you sell this wiring harness?

Yes we do here https://parts.allmoparparts.com/oem-parts/mopar-dash-wiring-68430633ab



[AllMoparParts.com]

One more thing does it plug into the wheel sensors and the ABS SYSTEM LIKE IT DOES NOW.

Thank you so much!!

No, thats a separate harness. Do you need the harness for both front and rear sensors?

- Benny



[Ramman70]

Yes sir I do need it!

Thanks!



[Ramman70]

I need the harness that everything that plugs in the ABS CONTROL MOSULE.



[AllMoparParts.com]

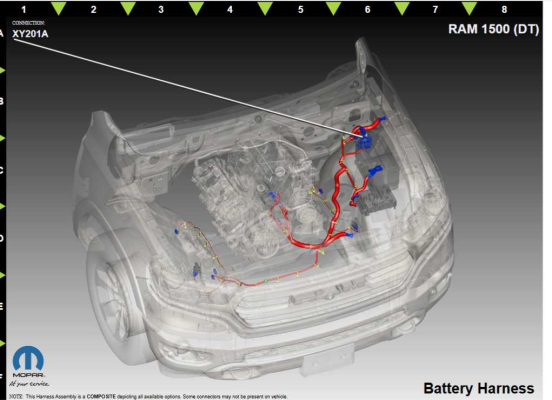

The Front sensors connect to this battery harness

https://parts.allmoparparts.com/oem-parts/mopar-battery-alternator-and-starter-wiring-68430571ad

The Left Rear connects to this chassis harness https://parts.allmoparparts.com/oem-parts/mopar-chassis-wiring-68430605ac







The Right Rear connects to the EPB harness and then joins into the Left Chassis harness

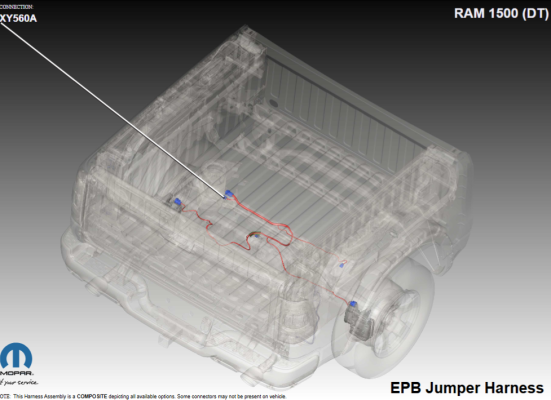

Here is the EPB harness https://parts.allmoparparts.com/oem-parts/mopar-electric-power-brake-wiring-68334100af






Please let me know if you have any other questions.

Thank you,
- Benny



[Ramman70]

I got everything but the 305, I have it coming.

Thanks a lot!!



[Ramman70]

Is this everything that runs through the ABS CONTROL VALVE? Thanks so much!



[Ramman70]

Thank you very much for your help! Don’t know what o would’ve done. I ordered the 305 harness today. The place I had ordered it just told me after 3 days on order they never had it, so I ordered it from your place. Again, thanks so much!!



[AllMoparParts.com]

Is this everything that runs through the ABS CONTROL VALVE? Thanks so much!

The Dash Harness alone plugs into the ABS control module.

Your welcome,
- Benny



[Ramman70]

Benny, if at all possible, please try to expedite my orders. I would appreciate and thanks for everything!



[AllMoparParts.com]

Hi,
If you send me the order number I will take a look and get you an eta

- Benny



[Ramman70]

717413 and 717439 are the order numbers.

Thanks



[AllMoparParts.com]

Thanks, Here is the info

68334100AF - Should be arriving to us today
68430605AC - Tracking shows this should be delivered to us tomorrow
68430571AD - Tracking shows this should be delivered to us 4/29

Thank you and please note I will be away next week, You can of course reach support if needed at [email protected]

- Benny
