2012 RAM 1500 5.7 P0481:2 or 3 pin connector?

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

Philip Gao

Member
Joined
Jan 27, 2021
Posts
35
Reaction score
13
Location
Canada
Ram Year
2012 Ram 1500
Engine
Hemi 5.7
Issue:
turn on the AC, in 10 minutes, the Engine warning light come, read it is P0481:Fan 2 Control Circuit
1st question:
This car don't have a 2nd Fan, how this issue means(only mean the Fan can't run from AC running?)?
Fan is ok can run, 2 relays are good, fuses are good, after 10 years, the TIPM got bad? (just repair my another 2012 Van in TIPM in same error code)
2nd question:

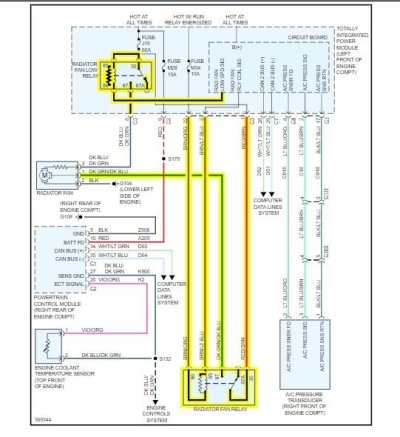

The circuit diagram show the cables to Fan is 3, but my Ram is only 2 cables, there is a black cable(ground) in male connector, but the female connector only have 2 pins(Fan side), it looks this is different diagram or previous some one repair it wrong?
here I test there is no another ground cable to the fan, because single 12v to any of the pin, the fan can't work, but the fan running when 12v and ground connect to the two pins.
BTW: My previous TIPM repair, is because the PCB board rusty and two line broken, the Fan control signal send by the relay K11, the data signal sent to TIPM from PCM, but the D/A excuse part failed, so the relay don't have a correct Control Level when AC running
Thank any suggestion!
