8.4 MTC Hvac Bezel button Assy's

[Mpgrimm2]

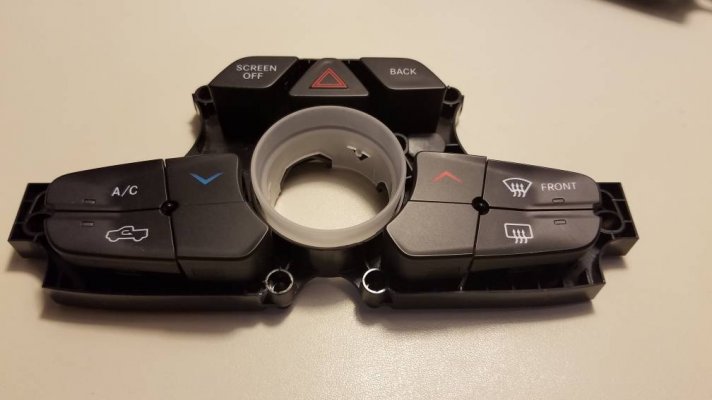

Looking for damaged MTC Bezels that I can get the Button Assy out of to try another Single zone ATC bezel mod.

I need this piece ...


-----------------------------------------------------------

From one of these...


So this...


Becomes this...


M² Mods - From my non Flammable S7!



[R.L.K.]

Would an operational RA2 bezel work ?

Sent from my SM-G900V using Tapatalk



[Mpgrimm2]

Would an operational RA2 bezel work ?

Sent from my SM-G900V using Tapatalk

Unfortunately not. I have a 4 speed 5.0/Ra2 bezel lying around that no one really needs also.

2013+ Radio Bezel with manual 4 speed fan/HVAC controls
https://r.tapatalk.com/shareLink?ur...&share_tid=78990&share_fid=17770&share_type=t




M² Mods - From my non Flammable S7!



[R.L.K.]

Unfortunately not. I have a 4 speed 5.0/Ra2 bezel lying around that no one really needs.

M² Mods - From my non Flammable S7!

To bad I was just gonna send you my original RA2 7 speed bezel if it would help

Sent from my SM-G900V using Tapatalk



[DARKNHT]

Did this work? I accidentally ordered the dual and couldn't get the switch out to paint the bezel so I taped everything off...

Sent from my SM-G950U using Tapatalk



[Mpgrimm2]

Did this work? I accidentally ordered the dual and couldn't get the switch out to paint the bezel so I taped everything off...

Sent from my SM-G950U using Tapatalk

Not sure I understand your question, but if you are asking if you can make a single zone ATC bezel, then yes ...
http://www.ramforum.com/showthread.php?p=1515414

M² Mods - From my non Flammable S7!



[DARKNHT]

Not sure I understand your question, but if you are asking if you can make a single zone ATC bezel, then yes ...
http://www.ramforum.com/showthread.php?p=1515414

M² Mods - From my non Flammable S7!

I accidentally bought the dual zone bezel. Had it painted.... however I could never get the switch asst out of the bezel.

How did you manage to get it out? I'd be willing to buy the right bezel and swap switches if so...

Sent from my SM-G950U using Tapatalk



[00R/T]

I accidentally bought the dual zone bezel. Had it painted.... however I could never get the switch asst out of the bezel.

How did you manage to get it out? I'd be willing to buy the right bezel and swap switches if so...

Sent from my SM-G950U using Tapatalk

Pull the back cover plate off the circuit board. Then use a screwdriver to pry off the volume and tuning knobs. Once they’re pooped off the bezel will separate. When you put them back on, out the knob part on first and make sure the tabs line up. Once they’re secure and straight, put the center buttons back inside the knobs.



[DARKNHT]

Pull the back cover plate off the circuit board. Then use a screwdriver to pry off the volume and tuning knobs. Once they’re pooped off the bezel will separate. When you put them back on, out the knob part on first and make sure the tabs line up. Once they’re secure and straight, put the center buttons back inside the knobs.

Thank you!

Sent from my SM-G950U using Tapatalk



[Mpgrimm2]

Sorry for the delay. Having issues with the builder of my house which is taking up a lot of my time currently.

I used a nylon/plastic panel pry tool from Harbor Freight to reach under and pry the knobs up. The key is to get it in between the silver ring around the bottom of the button switch and the knob itself (not b/w the circuit board and bottom of the switch soldered to the board). It's a bit nerve wracking the first time thinking you are going to break it. Just take you time and evaluate what you are doing.

See snippet from Scosche and circuit board picture. Hope it helps.



[DARKNHT]

Sorry for the delay. Having issues with the builder of my house which is taking up a lot of my time currently.

I used a nylon/plastic panel pry tool from Harbor Freight to reach under and pry the knobs up. The key is to get it in between the silver ring around the bottom of the button switch and the knob itself (not b/w the circuit board and bottom of the switch soldered to the board). It's a bit nerve wracking the first time thinking you are going to break it. Just take you time and evaluate what you are doing.

See snippet from Scosche and circuit board picture. Hope it helps.

You rock! Thanks
