AlfaOBD

[chrisbh17]

The code for the cuts on the key blade is always a "M" followed by 4 digits 0001 to 2618.

Well thats scary. There arent very many combinations available at that point.

When keys are cut do they use anything other than the code? Am I missing something here?



[crazykid1994]

Tried scrolling through alpha. Is there a way to set interior light to led



[TonyMM]

Wouldn't have thought to look there but I found it just now I disabled it. I remember reading I have to let the truck sleep for a bit cant remember how long so I'll probably go out there in an hour or so and check it out

Did it work?
Could you „remove“ the air suspension now?



[alpinegreenneon]

Well that's scary. There aren't very many combinations available at that point.

When keys are cut do they use anything other than the code? Am I missing something here?

The key blade only opens the doors and tailgate. FCA has been using the same M series since 1998. You have to remember that the key code database translates those 4 digits to 8 cuts. There are 8 cuts on the key blade but the door locks only have 7 tumblers. Ever try to pick a lock with 7 tumblers? It's not easy. A typical house key has 5 cuts and 5 tumblers. The ignition chip has a lot more possibilities. When you use alfaOBD to program a key, nothing happens to the chip in the key, but your RFHM learns the chips ID. Not sure how many of those there could be. The RFHM can learn up to 8 keys.



[walter]

Tried scrolling through alpha. Is there a way to set interior light to led

I have LEDs in my dome and map lights and didnt need any thing changed. But I did have to install equality LEDs the cheap Ebay ones worked for maybe a week then started blinking



[bhiii]

I have LEDs in my dome and map lights and didnt need any thing changed. But I did have to install equality LEDs the cheap Ebay ones worked for maybe a week then started blinking

Is it possible to turn off that stupid reading light or whatever that stays on all the time through Alfa?


Sent from my iPhone using Tapatalk



[TonyMM]

Is it possible to turn off that stupid reading light or whatever that stays on all the time through Alfa?


Sent from my iPhone using Tapatalk

If you want to have it off all time, just put some black tape on it .



[horsetrailer]

How long does the truck have to "sleep" after a change? I enabled DRL and disable fog light drop off earlier today, but it still has not taken effect or shown up in the radio. 2016 RAM 1500 Bighorn.
Thanks

I had to reboot the uconnect on my 2018 which is a battery disconnect


Sent from my Pixel 2 using Tapatalk



[bhiii]

If you want to have it off all time, just put some black tape on it .

Yeah I know. Was looking for a solution that wasn’t that. No big.


Sent from my iPhone using Tapatalk



[crazykid1994]

I have LEDs in my dome and map lights and didnt need any thing changed. But I did have to install equality LEDs the cheap Ebay ones worked for maybe a week then started blinking

Yea I’ve got no problems with the ones I’m running from superbright leds. Was just curious about it. I ordered the brightest ones I could find to fit. Not even canbus leds.



[cclark019]

I had to reboot the uconnect on my 2018 which is a battery disconnect


Sent from my Pixel 2 using Tapatalk

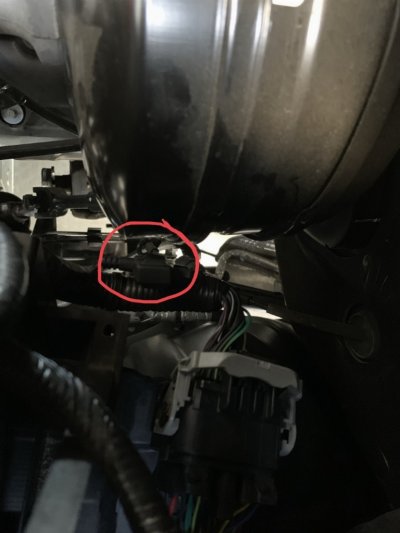

There is a inline fuse holder by the brake booster, that is the HU fuse just pull it for 30 seconds. Then you don’t have to reset the windows.


Sent from my iPhone using Tapatalk



[kad]

How long does the truck have to "sleep" after a change? I enabled DRL and disable fog light drop off earlier today, but it still has not taken effect or shown up in the radio. 2016 RAM 1500 Bighorn.
Thanks

Those two were almost instant on my truck, just long enough for the EVIC to go dark after the door was shut. For the DRLs, remember that a> They only come on when the truck is in gear and the parking brake is not applied and b> The High Beam as DRL setting does not work with factory projectors.

-K



[chrisbh17]

The key blade only opens the doors and tailgate. FCA has been using the same M series since 1998. You have to remember that the key code database translates those 4 digits to 8 cuts. There are 8 cuts on the key blade but the door locks only have 7 tumblers. Ever try to pick a lock with 7 tumblers? It's not easy. A typical house key has 5 cuts and 5 tumblers. The ignition chip has a lot more possibilities. When you use alfaOBD to program a key, nothing happens to the chip in the key, but your RFHM learns the chips ID. Not sure how many of those there could be. The RFHM can learn up to 8 keys.

Thanks, that makes more sense!

I thought my truck has a slot in the center of where the keyfob "plugs" into the dash, and I thought that slot was for the actual mechanical key in emergency, although I never tried it.



[horsetrailer]

There is a inline fuse holder by the brake booster, that is the HU fuse just pull it for 30 seconds. Then you don’t have to reset the windows.


Sent from my iPhone using Tapatalk

Hmm. I used the battery method but my windows were fine. Only thing was uconnect took a while to boot

Sent from my Pixel 2 using Tapatalk



[horsetrailer]

There is a inline fuse holder by the brake booster, that is the HU fuse just pull it for 30 seconds. Then you don’t have to reset the windows.


Sent from my iPhone using Tapatalk

I just looked at my truck and I don't seem to have the fuse holder by the brake booster. Do you have a pic?

Sent from my Pixel 2 using Tapatalk



[alpinegreenneon]

Thanks, that makes more sense!

I thought my truck has a slot in the center of where the keyfob "plugs" into the dash, and I thought that slot was for the actual mechanical key in emergency, although I never tried it.

There are no tumblers or anything resembling a real lock in the ignition node. It's all electronic as far as recognizing your key. There's some plastic parts that simulate what an ignition cylinder feels like. I have taken apart a junkyard ignition node out of curiosity and it was surprising to find an almost empty box with a circuit board inside. The key blade in the fob will not work in the ignition. It's the plastic part of the fob or a lollipop key that turns the parts of the node. The slot in the middle is for a lollipop key.



[likes2build]

Woo-Hoo July 29th till today, 500 pages just about 5000 posts.

I now have more options turned on in my truck than I ever could have imagined



[cclark019]

I just looked at my truck and I don't seem to have the fuse holder by the brake booster. Do you have a pic?

Sent from my Pixel 2 using Tapatalk

Sent from my iPhone using Tapatalk



[horsetrailer]

Sent from my iPhone using Tapatalk

Thanks!

Sent from my Pixel 2 using Tapatalk



[WVRam68]

Couldn't help it, here is number 5000

Man I love this topic, so much good info.

Thanks everyone!!!!!


Sent from my iPad using Tapatalk
