Factory aux switches

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

rbrumm

Senior Member
Joined
Feb 4, 2013
Posts
106
Reaction score
34
Location
North Central Iowa
Ram Year
2011
Engine
Hemi 5.7

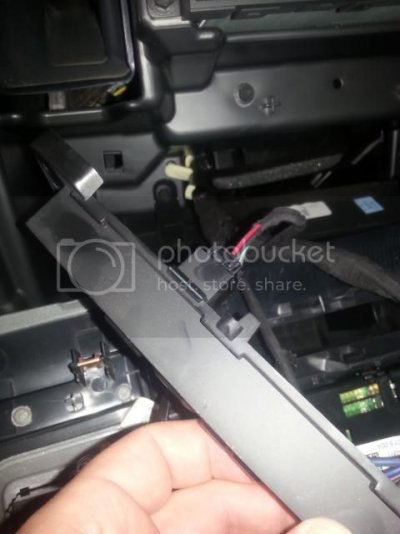

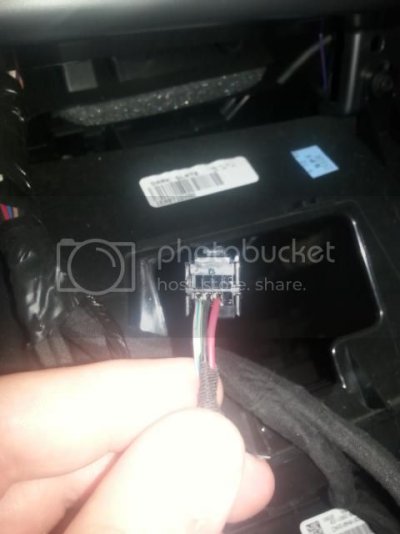

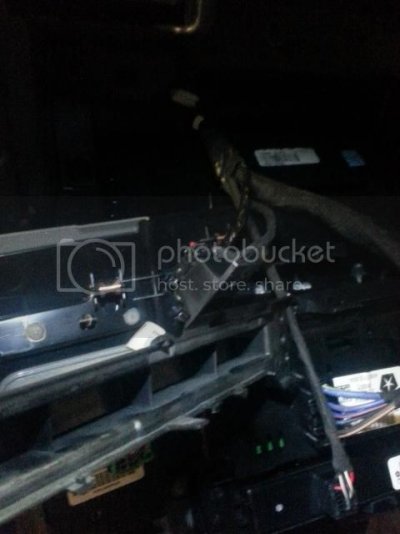

For those of you who have done this install, was there an existing plug clipped to the blank panel that you removed? I have a 2011 Outdoorsman and found this attached to the blank RAM panel.

Any clues? I hope it is a power source to run power to the switches. Looks like the same plug needed.




OP
OP
rbrumm

rbrumm

Senior Member
Joined
Feb 4, 2013
Posts
106
Reaction score
34
Location
North Central Iowa
Ram Year
2011
Engine
Hemi 5.7
One thought...since this is an Outdoorsman but didn't come with the 115V plug (long story) could this be the pre-wiring to the on-off button?


myoung84

Senior Member
Joined
Dec 2, 2010
Posts
1,899
Reaction score
321
Location
Tulsa, OK
Ram Year
2012 Power Wagon
Engine
Hemi 5.7L
I believe it's the wiring for the heated/cooled seats on the upper trim levels...

Sent from my Samsung Galaxy Note 3.

OP
OP
rbrumm

rbrumm

Senior Member
Joined
Feb 4, 2013
Posts
106
Reaction score
34
Location
North Central Iowa
Ram Year
2011
Engine
Hemi 5.7
If so, do you know if the power from that plug be used to power the aux switch panel?


myoung84

Senior Member
Joined
Dec 2, 2010
Posts
1,899
Reaction score
321
Location
Tulsa, OK
Ram Year
2012 Power Wagon
Engine
Hemi 5.7L
You'd need to put a multimeter to the wires and find out what's there. I never tested them in the old truck.

Sent from my Samsung Galaxy Note 3.

OP
OP
rbrumm

rbrumm

Senior Member
Joined
Feb 4, 2013
Posts
106
Reaction score
34
Location
North Central Iowa
Ram Year
2011
Engine
Hemi 5.7
Another forum had a link to the wiring diagrams for these trucks. They say the plug is for the lower bank but I am not sure what the optional bank is for. Anyway, I could probably tap the power (fused) and ground from that plug but the other wire goes to LIN BUS. I am not an electrical engineer so not really sure what that means other than it goes to the EVIC somehow. I'll Leave that wire alone. They number on the pins different than other posts, but locations are correct for what wire runs to each port in the plug.


Jcockrell

Junior Member
Joined
Feb 24, 2020
Posts
2
Reaction score
0
Location
Texas
Ram Year
2012 2500 Mega Cab
Engine
6.7 Cummins
rbrumm..... did you end up using that plug? I'm interested in the same thing... I have it torn apart right now...


JB1

Senior Member
TOTM Winner
Joined
Nov 3, 2011
Posts
8,366
Reaction score
7,542
Location
Houston, Texas
Ram Year
2017
Engine
Hemi 5.7
My 2017 Sport had that, I thought it was the trailer brake wiring since it's right behind where that would plug in on the panel
