finally a couple pics!

[talon6]

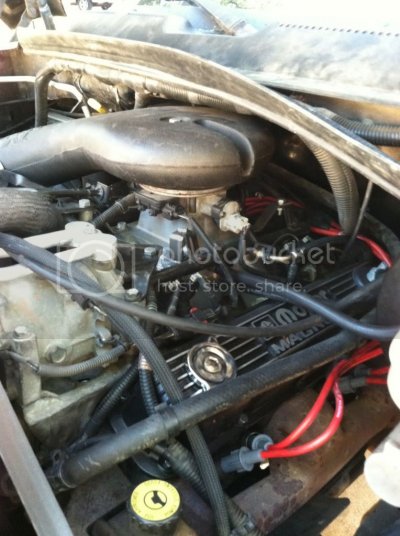

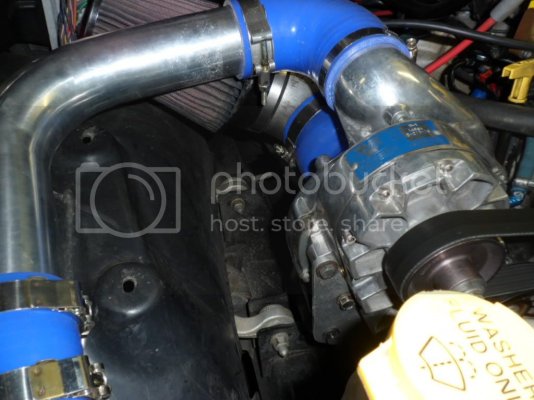

well i finally got a couple pics of my supercharger install. its not 100% done yet but it is about 90%. its driveable. just not getting big boost yet. boost guage is only reading about 4lbs max. think i have some belt slip issues. gonna get that figured out here in the next couple weeks. i can tell a pretty good difference in power already. cannt wait till i get it all running right and see the full 12lbs.

installed this round-
vortech v1 s trim
intercooler,piping,and blow off valve
39lb ford motor sports fuel injectors
accel 2 bar map sensor
walbro 255lph in tank fuel pump
not pictured-aem digital boost guage,aem digital trans temp guage


i know this is not how everyone else posts pics, but i am sooo not good with a computer. so sorry. heres my photobucket page.

Pictures by blownram360 - Photobucket



[MADDOG]

Nice upgrade! What are you doing for a program?



[talon6]

sct tuning. custom tunes by sean powell (hemifever). and my innovate data logger just came yesterday. so i will be able to make some runs, log them, and send them to him so he can adjust my tuning. should be able to get it dialed in pretty darn close.



[glass3222]

zach, if you want to post pics like most people do, just go to your photobucket page, place you mouse curser on the pic, at the bottom you will see img code and a box beside it that has ........

right click in the box and it will copy. Then in a post press ctrl v (or left click and paste) and the image code will be placed in the post.

Let me know if you have questions.



[talon6]



[talon6]

man, your a genius rus.lol. i got it.



[Okiespaniel]

NICE!
Is the purple device going to the intake your "pop off" valve? I guess I've not observed that on a Vortech before.



[03MopaRamman]

Wanna Swap Trucks? I Love it!



[glass3222]

man, your a genius rus.lol. i got it.

LOL That wasn't to hard was it

SC looks great by the way.



[talon6]

NICE!
Is the purple device going to the intake your "pop off" valve? I guess I've not observed that on a Vortech before.

yep. greddy blow off valve. releases pressure when you let off the throttle so the boost dont go back into the s/c and mess things up. it can also set your boost pressure so if your running a 12lb pulley and you dont want 12lbs you can set it to blow off at 10 or 8lbs or whatever you want.



[talon6]

Wanna Swap Trucks? I Love it!

i would, but i dont think i could affoard the gas to drive it to ya up in canada.lol



[the codes]

dude awesome!!! let me know how you like that data logger!


Tapatalk Addict



[Trupiano]

Very nice! Can't wait to see big power!



[talon6]

dude awesome!!! let me know how you like that data logger!


Tapatalk Addict

i will. probably be a little bit yet. gotta get my 4lb issue figured first.



[talon6]

Very nice! Can't wait to see big power!

me either. i am guessing with only seeing the 4lb's of boost, think i am getting probably 30-40hp more. cant wait to see what 10lbs or so will do.



[03MopaRamman]

LOL...Yes only 1783 miles in a downward straight line to Cleveland so say six Tanks $600. Seriously I have always admired your Truck. Alot of Guys get bashed with 02's and 03's with the 5.9 but what do they know. Can't wait to see how she runs. Video on PB will be your next Computer Marvel...



[talon6]

thank you and yes i am a odd ball motor truck combo. they doubt, but come take a ride. they would be smilin or cryin.lol



[reefguy89]

so what is a guess of the power its putting down?



[the codes]

like the way you painted your covers to match..if I ever end up pulling my engine out i might have to borrow that trick

like your hs rr's!



[Mad Cow]

That is awesome looking. Time for test and tune yet?
