Near as I can tell, there are 4 different kinds of fuses in the PDC.

1) ATR- Micro2

2) MCase

3) JCase tall

4) JCase low

Busy little fuse box.


crash68

ACME product engineer
Staff member
Administrator Moderator Supporting Member
Joined
Mar 20, 2016
Posts
12,341
Reaction score
21,454
Ram Year
2015
Engine
3.0 EcoDiesel
Then there is the fuses off the positive battery terminal, for the gassers it a Mopar part, the EcoDiesel uses Z-Case fuses(3 different sizes).


kad

Senior Member
Supporting Member
Joined
Jul 10, 2017
Posts
2,788
Reaction score
2,331
Location
Hudson Valley, NY
Ram Year
2014
Engine
5.7L HEMI
Don't forget the radio fuse in the harness on the firewall, I think that one's a standard ATM fuse.

-K


RoadRamblerNJ

Senior Member
Joined
Aug 26, 2017
Posts
2,260
Reaction score
2,397
Location
Mountain City, TN
Ram Year
2017
Engine
392 Hemi
All the labels are so my son can follow along and see how the relays get triggered and put out power to everything. He's 30 yrs old and knows zip about electronics. The labels are amber & white so he can follow from the switches to the LED lightbars (white/amber), spot driving lights and reverse floods (white) and flood fog lights (amber).

Next up, gotta build the switch panel, install everything onto Big White and hope it all works, lol.
My wife will be happy to get the livingroom back. I ain't cut out for apartment life! Still looking for property.

Last edited:

Badger 13

Senior Member
Joined
Jul 30, 2018
Posts
1,363
Reaction score
1,535
Location
North Idaho
Ram Year
2013 Dodge Ram 1500
Engine
5.7 Hemi
Very nice project. Looks clean and well done. I went the easy, but not cheap route, and installed a Spod switch system. Please post pictures of your switches when completed.


bellaireroad

Senior Member
Joined
Dec 5, 2016
Posts
695
Reaction score
626
Location
Fort Worth
Ram Year
2017
Engine
Hemi 5.7

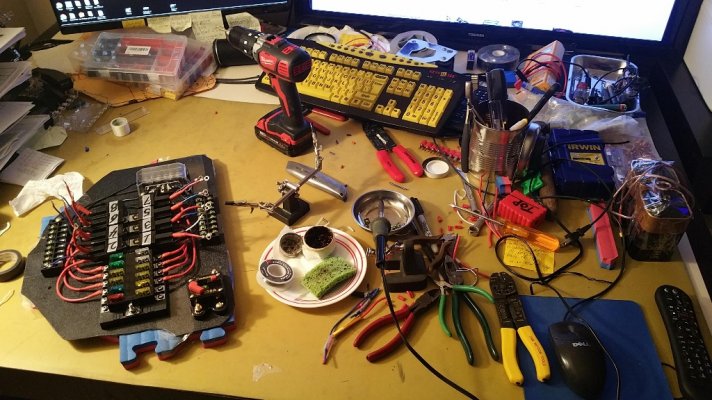

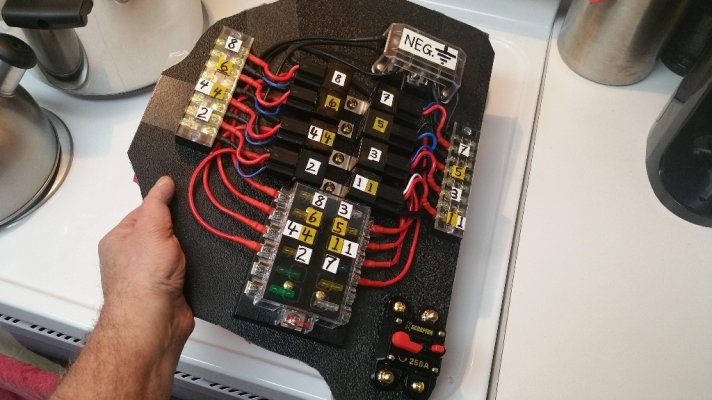

Then there's this little project I just put together to control a whole bunch of new lights, inside & out. And yeah, I soldered 'em all.dcf9ef012c008672e4a2d0711b3f3a97.jpgad41b5372bb05e7d1c68ebacd529feeb.jpg

You ought to start a thread on this


Sent from my iPhone using Tapatalk Pro


RoadRamblerNJ

Senior Member
Joined
Aug 26, 2017
Posts
2,260
Reaction score
2,397
Location
Mountain City, TN
Ram Year
2017
Engine
392 Hemi
You ought to start a thread on this


Sent from my iPhone using Tapatalk Pro
Nah.
I'm sure it's been done before. It's nothing special. Hardest part is making the board fit the truck. Cardboard it first, then build it, then re-fit it 'cause the relays hit the upper radiator hose, lol.


RodeoRam

Senior Member
Supporting Member Air Force
Joined
Sep 11, 2018
Posts
632
Reaction score
1,123
Location
North Carolina
Ram Year
2018
Engine
Hemi 5.7 2500 CC
My wife will be happy to get the livingroom back. I ain't cut out for apartment life! Still looking for property.

There's a 2 1/2 acre lot on Oak Ridge Hwy. in Karns for $200k near my parents. I think a strip mall is going in next door. Saw all the dirt they've trucked in when I visited the folks over the weekend. The bad part is after a couple of days of rain, the creek bordering it will flood, and it's right on the highway. Amazing that the same acreage with two houses cost my parents $18k 60 years ago.


RoadRamblerNJ

Senior Member
Joined
Aug 26, 2017
Posts
2,260
Reaction score
2,397
Location
Mountain City, TN
Ram Year
2017
Engine
392 Hemi
I know what you mean. Prices are up 5X what they were just 5 yrs ago.
I appreciate the tip but I'm looking for at least 20 acres. My other hobby makes an awful lot of noise and I don't want to be bothering my neighbors.
