Modifystreet headlight build

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

1500ram12

Senior Member
Joined
Jan 23, 2012
Posts
5,487
Reaction score
2,427
Ram Year
2005
Engine
5.9L Cummins
So about a month and a half ago I picked up a set of the 2019 style modifystreet headlights. I installed Hikari ultra led's in the lows and some auxbeam led's for highs. The Hikari led's I'd say compare pretty close to a 35w hid kit. The auxbeam led's sucked in the highs. Barely brighter than the lows. I knew from the beginning I'd open these up and atleast paint them. But I figured since I'd have them open I'd swap out the turn led for a switchback led's. So I ordered a set of profile pivot switchback led strips to replace the current led turn signal board. Then in the clearance section on TRS I found some "cheaper" switchback strips so ordered them also. I wanted them to be as bright as possible so I removed the silicon casing on both strips. Removed the current led board's and attached the new strips.

Pic's to come.

Since I drive on back roads at night that are heavily occupied by deer I knew something had to be done with the highs. I thought about grabbing a different set of led's or modifying a set of 9005 led's to fit. But decided to on something different. For about the same price as another set of Hikaris I decided to go with the profile pivot HI-LENSE LED highbeam projector.

Pic's to come.

For the low's I'm going to try some hid's for comparison.

Opening the headlights up was interesting. First one went smoothly. Second one put up a fight. For whatever reason it just didn't want to separate. In the end I won but have some reforming to do.

I'm not sure if this is because I have the matte black version or if this will be the same for the gloss black one's also but they painted over the chrome. So I'm not sure over time how that would hold up. So using brake clean I stripped the paint off, came off really easy, then used oven cleaner to remove the chrome finish. Takes about 20 minutes for it to remove it. Washed the bezel and primed and painted. I'm not sure if I'm going to leave it mono toned or try and add in some black to break it up.


I'd like to paint the "shrouds" but everything is one piece and taping just the shrouds off is extremely difficult. Tried that first before figuring out the bezel was actually chrome just painted black.

I'm just waiting for the high Beam to come in so I can finish up



2018 2500 6.4L

Last edited:
OP
OP
1500ram12

1500ram12

Senior Member
Joined
Jan 23, 2012
Posts
5,487
Reaction score
2,427
Ram Year
2005
Engine
5.9L Cummins
Parts so far

Profile Pivot HI-LENSE

https://www.theretrofitsource.com/bi-led-profile-hi-lens-led-high-beam.html

Profile Pivot Switchbacks

https://www.theretrofitsource.com/white-amber-led-headlight-strips-profile-pivot-switchback.html

Switchback strip

https://www.theretrofitsource.com/switchback-flexible-silicone-led-rope-light.html

HID

Innovited 35W AC Xenon HID Lights"All Bulb Sizes and Colors" with Slim Ballast - H7-6000K - Diamond White - 2 Year Warranty https://www.amazon.com/dp/B07NCRMNFM/ref=cm_sw_r_cp_api_i_EOX6CbCSBG246

Innovited 55W AC Xenon HID... https://www.amazon.com/dp/B07NCQBNYK?ref=ppx_pop_mob_ap_share

Diodes

(Pack of 20 Pieces) Chanzon... https://www.amazon.com/dp/B079KF9TVR?ref=ppx_pop_mob_ap_share

Connectors used in the headlights for connections.

MUYI 10 Kit 1 Pin Way Waterproof... https://www.amazon.com/dp/B01FP1HXTE?ref=ppx_pop_mob_ap_share

H7 to 9005 adapter

Xotic Tech 2X H7 Pigtail Wire... https://www.amazon.com/dp/B07MMMCWT6?ref=ppx_pop_mob_ap_share

Butyl tape

https://www.theretrofitsource.com/morimoto-retrorubber-butyl-glue-52001.html

Wire seals

https://www.theretrofitsource.com/4-position-wiring-seal.html

H13 pig tail

TOMALL Male Socket Connector for Headlights Fog Lights Retrofit Extension Wiring Harness https://www.amazon.com/dp/B07KYFB7ND/ref=cm_sw_r_cp_api_i_Smh-CbYG27JHQ

I didn't use these because I had some h13 connectors from another project but would suggest if you are upgrading the to switchbacks to ditch the stock wiring set up in the lights. This will allow you to leave the 3157 socket attached to your quads and plug directly into the truck's harness




2018 2500 6.4L

Last edited:

chrisbh17

Senior Member
Joined
Oct 12, 2017
Posts
6,691
Reaction score
7,473
Ram Year
2017
Engine
Hemi 5.7
I got mine last week and will run them as is for a while to make sure they are OK. I do plan on modding mine as well... Can you describe your process to open them? I've never done it before and that's the only part I'm really worried about.

Sent from my Nexus 6P using Tapatalk

OP
OP
1500ram12

1500ram12

Senior Member
Joined
Jan 23, 2012
Posts
5,487
Reaction score
2,427
Ram Year
2005
Engine
5.9L Cummins
I did 250 for 20 minutes. Start on the grill side corners with a screw driver and as soon as you can get some fingers in start pulling apart. You have to pull and lift the tabs. The tabs are usually soft enough to bend out of the way. I've only done this one other time. A convection oven works best. Unfortunately I don't have one now so at the 10 minute mark I just flipped the headlight over


2018 2500 6.4L


chrisbh17

Senior Member
Joined
Oct 12, 2017
Posts
6,691
Reaction score
7,473
Ram Year
2017
Engine
Hemi 5.7
Thanks for the info!

I think someone said they use a Permaseal type adhesive, but not quite as bad. Maybe only one of yours used it and the other used something different? :)

Do you just heat the plastic up with a heat gun to "re-form" the problem areas?

OP
OP
1500ram12

1500ram12

Senior Member
Joined
Jan 23, 2012
Posts
5,487
Reaction score
2,427
Ram Year
2005
Engine
5.9L Cummins
Yeah I'll use a heat gun to reform the bad spot. It's only really in one corner where I started. It's weird how they two were so different. It's not like the sealant was lacking, just came apart easier.

I'm waiting to see pic's of @Jimmy07 headlights. He finished his last week.


2018 2500 6.4L


OC455

Senior Member
Military
Joined
Apr 20, 2018
Posts
3,038
Reaction score
2,610
Location
Central NY
Ram Year
2018, 2019
Engine
5.7 Hemi Big Horn, 6.4L Hemi 3500 Longhorn Mega cab
Like to see how well this is going to turn out. I know the Hi-Lens projectors I have are pretty damn impressive.


atom13

Senior Member
Joined
Jun 4, 2018
Posts
374
Reaction score
243
Location
USA
Ram Year
Na
Engine
Na
Nice I know I would do this if I didn't retro my quads already. Dumped way too much money into them and they still look good when I see them in action.


OC455

Senior Member
Military
Joined
Apr 20, 2018
Posts
3,038
Reaction score
2,610
Location
Central NY
Ram Year
2018, 2019
Engine
5.7 Hemi Big Horn, 6.4L Hemi 3500 Longhorn Mega cab
Bezel back together

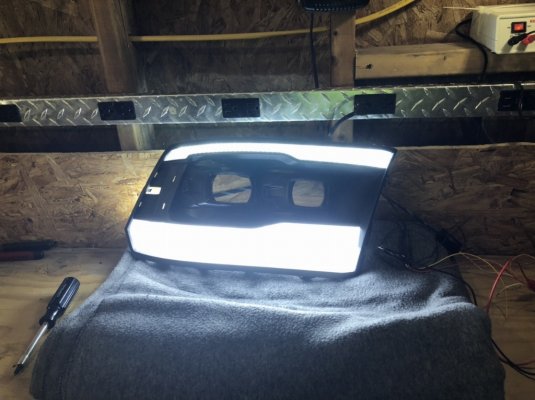

Powered up



2018 2500 6.4L

Stupid question, the housing/bezel looks squarish, but are they setup for round projectors?


Jimmy07

Senior Member
Joined
Feb 23, 2017
Posts
3,250
Reaction score
2,910
Ram Year
2017
Engine
6.4 Hemi
Yeah I'll use a heat gun to reform the bad spot. It's only really in one corner where I started. It's weird how they two were so different. It's not like the sealant was lacking, just came apart easier.

I'm waiting to see pic's of @Jimmy07 headlights. He finished his last week.


2018 2500 6.4L

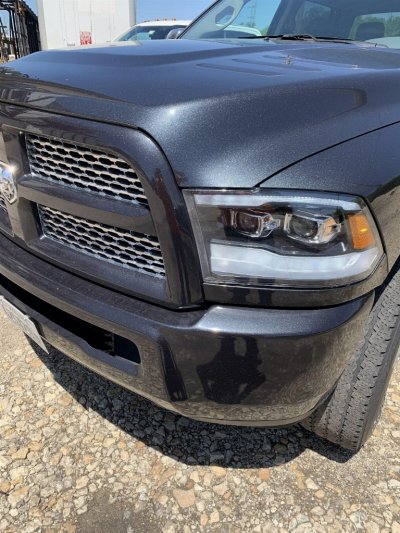

I’ve been meaning to post some pics. It’s been raining a lot lately, but I did manage to get one in direct sunlight, although my truck is filthy. CpUmGg0.jpg
Color matched the bezels, upper and lower DRLs with lower sequential turns, and d2s mini low projectors.

Did you figure out a method to mount the hi-lense, yet?

OP
OP
1500ram12

1500ram12

Senior Member
Joined
Jan 23, 2012
Posts
5,487
Reaction score
2,427
Ram Year
2005
Engine
5.9L Cummins
I’ve been meaning to post some pics. It’s been raining a lot lately, but I did manage to get one in direct sunlight, although my truck is filthy. CpUmGg0.jpg
Color matched the bezels, upper and lower DRLs with lower sequential turns, and d2s mini low projectors.

Did you figure out a method to mount the hi-lense, yet?

Should be delivered tomorrow. On TRS site it's saying The threaded shaft is 19 mm so roughly 3/4". I'm thinking that I can remove the lense off the current projector and bore out the hole in the bowl slightly and mount it that way. But we'll see probably not tomorrow but hopefully Wednesday.


2018 2500 6.4L

OP
OP
1500ram12

1500ram12

Senior Member
Joined
Jan 23, 2012
Posts
5,487
Reaction score
2,427
Ram Year
2005
Engine
5.9L Cummins
Stupid question, the housing/bezel looks squarish, but are they setup for round projectors?

The "shrouds" are square but are notched for a round projector. These are the projectors



2018 2500 6.4L


OC455

Senior Member
Military
Joined
Apr 20, 2018
Posts
3,038
Reaction score
2,610
Location
Central NY
Ram Year
2018, 2019
Engine
5.7 Hemi Big Horn, 6.4L Hemi 3500 Longhorn Mega cab
The "shrouds" are square but are notched for a round projector. These are the projectors



2018 2500 6.4L

Man there's a lot of room underneath those projectors. You could do a lot with these.


OC455

Senior Member
Military
Joined
Apr 20, 2018
Posts
3,038
Reaction score
2,610
Location
Central NY
Ram Year
2018, 2019
Engine
5.7 Hemi Big Horn, 6.4L Hemi 3500 Longhorn Mega cab
On TRS site it's saying The threaded shaft is 19 mm so roughly 3/4".

Yup, 3/4 inch, I dropped my Hi-Lens right into the 9005 hole for the high beam on factory quads.

OP
OP
1500ram12

1500ram12

Senior Member
Joined
Jan 23, 2012
Posts
5,487
Reaction score
2,427
Ram Year
2005
Engine
5.9L Cummins

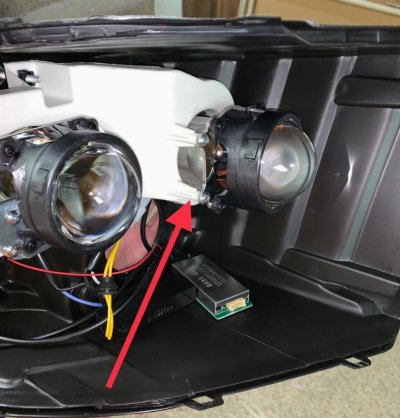

Picked up the Hi-Lense from the post office this morning. I was hoping to be able to use the existing bowl from the high beam projectors to mount the Hi-Lense but it would have recessed it too far back. So I had some 1/8" abs plastic sheets laying around so I came up with this. Started off with drilling a 7/8" whole and mounted it to the abs plastic. As it sat it was ~1/4" to far forward. So I enlarged the whole until it recessed far enough back where it cleared the back of the "shroud" had to make some spacers to compensate for the distance from the back of the housing to the end of the threaded shaft. Used some apoxy to glue the spacers to the plate and locked everything down with the supplied nut.

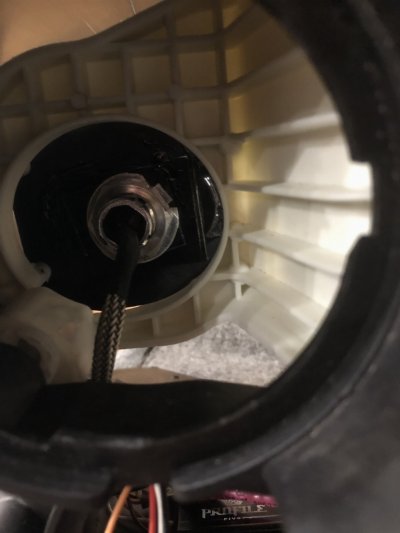

Added a silicon grommet and switched the park/turn to a h13 style connector.


The only wiring that is original to these lights are just the low/high and the dedicated drl wire.

At this point I wired the main drl's to the park feed and the "demon eye" on the Hi-Lense to the dedicated drl wire. I want the drl's to be as bright as possible.


2018 2500 6.4L

OP
OP
1500ram12

1500ram12

Senior Member
Joined
Jan 23, 2012
Posts
5,487
Reaction score
2,427
Ram Year
2005
Engine
5.9L Cummins

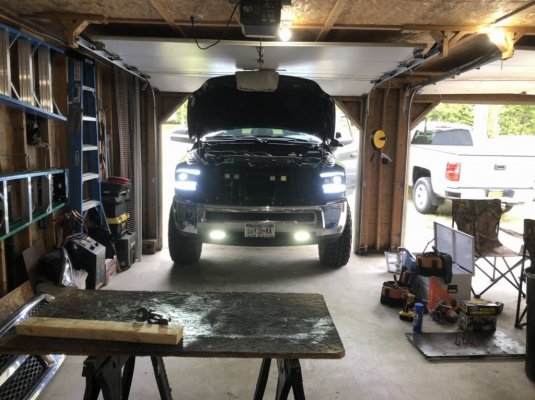

Tested the lights on the truck. 2 minor issues so far, the driver's side Hi-Lense has a very light flicker, only noticed it off the reflection on the bezel. I'll have to double check my settings with alphaobd. Not sure if I have the highs as led's. The other issue is the turns, they function perfect but get the hyper flash on the dash, no lights out, everything is set to led's already because I have switch backs in my quads. I gave the truck a good 20 seconds to adjust. Maybe just needs longer.

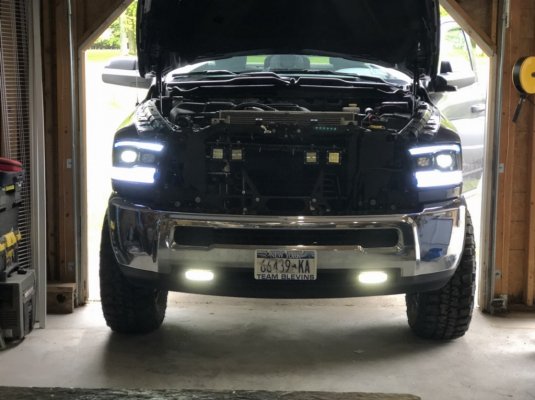

Here's with low's (Hikari led's)

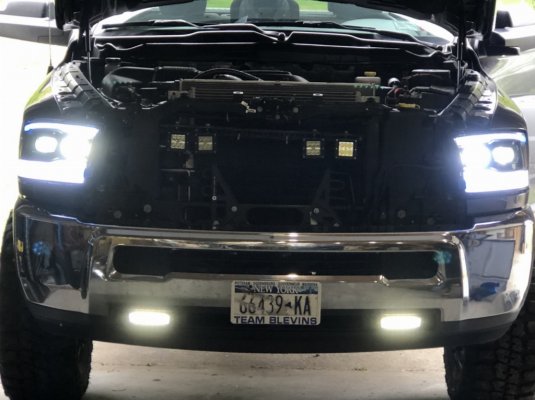

Highs

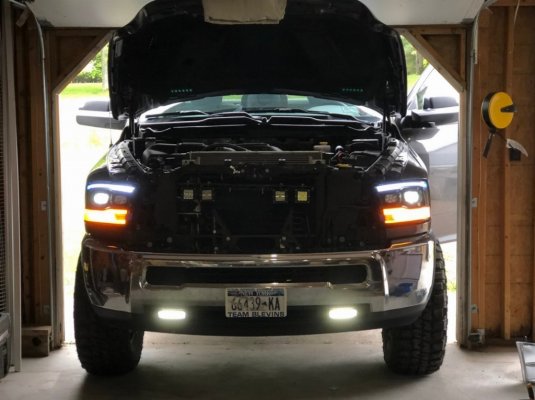

Pick with 4 ways on


Currently have drl's set to fogs so didn't test the drl function. Have everything wired to use the "parking" lights as drl's. All my connections are accessible through the bottom cover so If something isn't right I can change it


2018 2500 6.4L


chrisbh17

Senior Member
Joined
Oct 12, 2017
Posts
6,691
Reaction score
7,473
Ram Year
2017
Engine
Hemi 5.7
Tested the lights on the truck. 2 minor issues so far, the driver's side Hi-Lense has a very light flicker, only noticed it off the reflection on the bezel. I'll have to double check my settings with alphaobd. Not sure if I have the highs as led's. The other issue is the turns, they function perfect but get the hyper flash on the dash, no lights out, everything is set to led's already because I have switch backs in my quads. I gave the truck a good 20 seconds to adjust. Maybe just needs longer.

Here's with low's (Hikari led's)



Highs


Pick with 4 ways on


Currently have drl's set to fogs so didn't test the drl function. Have everything wired to use the "parking" lights as drl's. All my connections are accessible through the bottom cover so If something isn't right I can change it


2018 2500 6.4L
I keep forgetting... Are those modified v1 or v2?

Sent from my Nexus 6P using Tapatalk
