My Head Light Build thread. So Far...

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

OC455

Senior Member
Military
Joined
Apr 20, 2018
Posts
3,033
Reaction score
2,605
Location
Central NY
Ram Year
2018, 2019
Engine
5.7 Hemi Big Horn, 6.4L Hemi 3500 Longhorn Mega cab
As was suggested I should post my own build thread. I've posted pics of what I've done so far in other threads of my quad head lights.

So far here is what I've got.

Opened the head lights and test fit the Morimoto Mini D2S 4.0 projector in the low beam reflector.

Had to open up the hole at the back to 35mm or 1 and 3/8 inch. Used a small sanding drum on a Dremel to open it up. A little at a time for a good fit. Also removed the diffuser/glare guard.

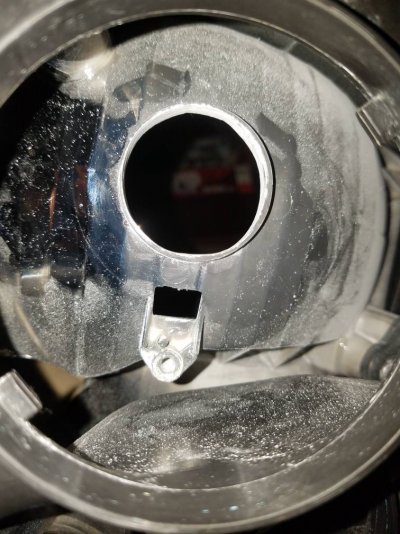

I did not take a picture of the back of the reflector for the H11 bulb pattern. I used the inside of the raised portion of the reflector to guide how much to remove. First picture.

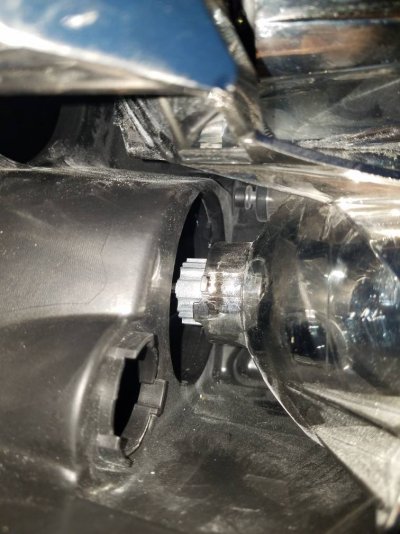

I removed the black ring off the back of the high beam for the 9006 bulb. I am going to use the Profile Hi-Lens LED projector there. They are on order. The Hi-Lens has a 19mm/3/4inch shaft and it looks to be a 3/4 inch hole in the reflector, so the only modification that may be needed is to grind off the small tabs that stick out off the back of the housing. Second picture.

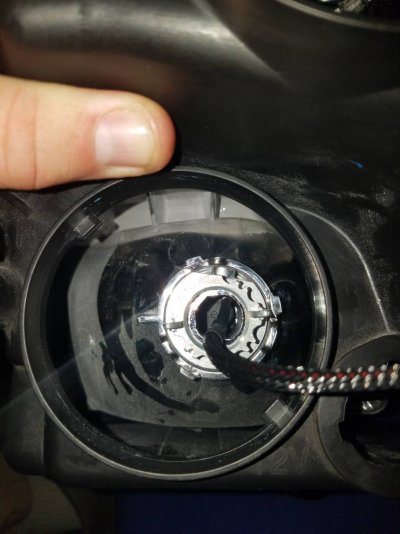

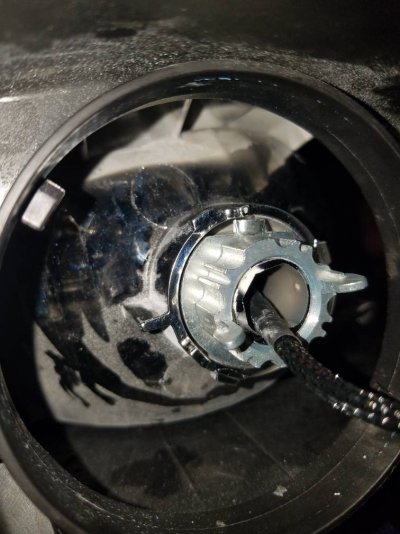

The third picture I fitted the Mini D2S into the reflector. I had to clearance the bottom of the reflector for rotational alignment. 4th picture.

I used the horizontal reflector line to line up the projector.

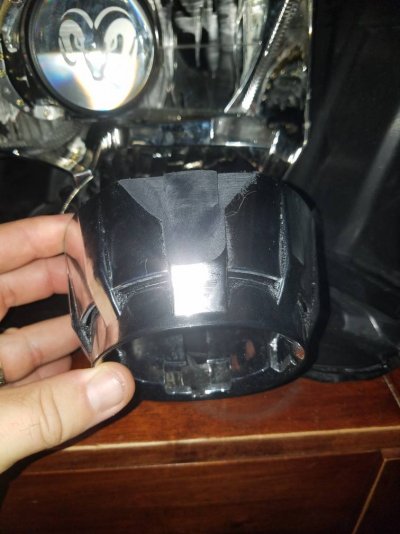

I used the Gattling Gun 1.0 shroud and trimmed it to fit into the reflector housing. This was my first attempt. Probably going to get another set and use the first ones as a template. Pictures 5 and 6. Picture 8 with shroud on.

Picture 7 shows that there is 3 and 1/4 inches of height there. The Profile Hi-Lens is a hair over 3 inches in diameter. It is about 2 and 5/8s from the back to the front and shouldn't stick too far out past the high beam part of the reflector.

Pretty sure I am going to have to trim the OEM bezel to get everything to clear.

Don't know whether to go satin black or color match to the factory paint color (brilliant black). I also ordered Profile 3157 amber LED bulbs.821fdf5b887c8e99db969ed85e1c11e9.jpgaee0edd129818c1683faced7d6fade32.jpge4bedadda49ee1c96a41d21d75550f44.jpgdb9cd344ed0674be3ed55dea46c4149e.jpgc783e0159ac24f0cb1dc428d258bdd8b.jpg1ef98c90ccb0c1552a5c00a49603b3b2.jpgf6871c4b898d9cf325d664265a2f3f88.jpge2d063120b1ab8929cca756e5c611cf2.jpg

Sent from my SM-G930V using Tapatalk

Last edited:
OP
OP
OC455

OC455

Senior Member
Military
Joined
Apr 20, 2018
Posts
3,033
Reaction score
2,605
Location
Central NY
Ram Year
2018, 2019
Engine
5.7 Hemi Big Horn, 6.4L Hemi 3500 Longhorn Mega cab
Received the Profile Hi-Lens today. They fit right in the high beam part of the reflector. Tight on the top, but it doesn't look like it touches. No modifications to the back of the reflector. Little bit disappointed that one of the Hi-Lens projectors sounds like it has something broken inside and rattling inside of it....will have to make a call to TRS.d429c9ddb6d9bc4334c15ccfc5317381.jpg0abd21cbfba0d0c50cdf5cd039d9f606.jpgc2c3b0e5acd4c949a83e14877d872086.jpg2f805131ecf97a52b492c7e0962b56bc.jpg468abcd6b12ba3e9fb9e9f1f2a6017c2.jpg

Sent from my SM-G930V using Tapatalk

Last edited:

firebuff17

Senior Member
Joined
Mar 9, 2014
Posts
412
Reaction score
153
Location
Ct
Ram Year
2014
Engine
Hemi 5.7
Looking good so far Chuck. Those projectors look good in there. Output will be amazing!
Are these my old quads by chance?

OP
OP
OC455

OC455

Senior Member
Military
Joined
Apr 20, 2018
Posts
3,033
Reaction score
2,605
Location
Central NY
Ram Year
2018, 2019
Engine
5.7 Hemi Big Horn, 6.4L Hemi 3500 Longhorn Mega cab
Looking good so far Chuck. Those projectors look good in there. Output will be amazing!
Are these my old quads by chance?

Yes Sir they are. Just taking my time with them and making sure I get them fitted right and set, so I don't have to mess with them after they all get hooked up.

I also purchased a set of Profile amber LED 3157 for the turn signals.


RusslRam

Senior Member
Joined
Jan 21, 2017
Posts
564
Reaction score
498
Ram Year
2013
Engine
Hemi 5.7
If you get a chance can u get a picture of the high beam light output. Haven't really wanted to put a high quality light in the high beam since the projectors high beams are incredible. They have visually caught my eye a lot and think they look great in the housing. Also what kind of paint theme are u thinking of?

Sent from my Pixel using Tapatalk

OP
OP
OC455

OC455

Senior Member
Military
Joined
Apr 20, 2018
Posts
3,033
Reaction score
2,605
Location
Central NY
Ram Year
2018, 2019
Engine
5.7 Hemi Big Horn, 6.4L Hemi 3500 Longhorn Mega cab
I only hooked up one light to see what kind of output it had. It's not bad.

I'll try to get a picture of it. I'm thinking satin black for the bezel or color matched to the brilliant black that my Ram is. Leaning more towards the satin black.

Sent from my SM-G930V using Tapatalk

OP
OP
OC455

OC455

Senior Member
Military
Joined
Apr 20, 2018
Posts
3,033
Reaction score
2,605
Location
Central NY
Ram Year
2018, 2019
Engine
5.7 Hemi Big Horn, 6.4L Hemi 3500 Longhorn Mega cab
What paint should I use for the best results for satin black?


Purplert

Senior Member
Joined
Sep 5, 2017
Posts
1,031
Reaction score
707
Ram Year
2014
Engine
5.7
Duplicolor has a low gloss engine enamel that comes out satin looking.


Sent from my iPhone using Tapatalk Pro


RusslRam

Senior Member
Joined
Jan 21, 2017
Posts
564
Reaction score
498
Ram Year
2013
Engine
Hemi 5.7
I used thisd2b92980e31ee4d50f6b0063ea9dd615.jpg

Sent from my Pixel using Tapatalk

OP
OP
OC455

OC455

Senior Member
Military
Joined
Apr 20, 2018
Posts
3,033
Reaction score
2,605
Location
Central NY
Ram Year
2018, 2019
Engine
5.7 Hemi Big Horn, 6.4L Hemi 3500 Longhorn Mega cab
Sweet, won't have to look far then.

OP
OP
OC455

OC455

Senior Member
Military
Joined
Apr 20, 2018
Posts
3,033
Reaction score
2,605
Location
Central NY
Ram Year
2018, 2019
Engine
5.7 Hemi Big Horn, 6.4L Hemi 3500 Longhorn Mega cab

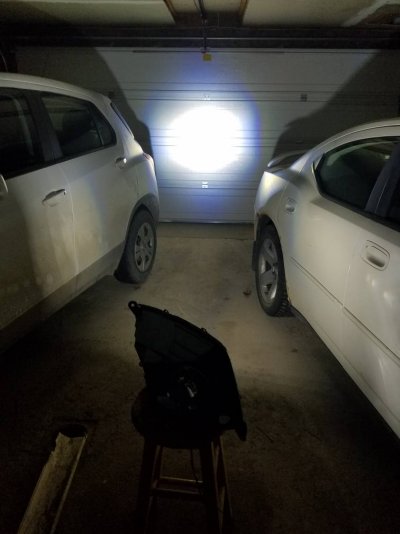

The first picture is the head light sitting on a bar stool about 15 ft away from my garage door. Hi-Lens LED projector.
