Need help on centering rear wheels after 2/4 drop

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

M27

Member
Joined
Apr 15, 2014
Posts
39
Reaction score
22
Location
SJ,CA
Ram Year
2016
Engine
Hemi 5.7

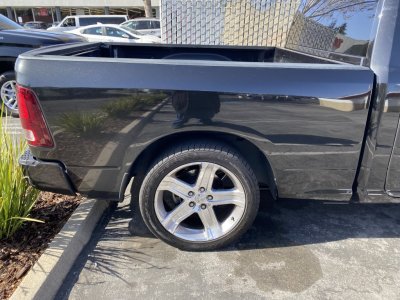

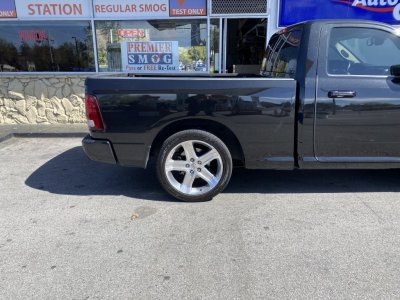

I recently lowered my truck 2/4 with crown suspension coils and the wheels are noticeably closer to the rear of the wheel wells. Parts installed core4x4 track bar with bell tech relocation bracket,core4x4 upper and lower adjustable control arms, ihc no cut brackets, Viking shocks all installed by a shopBB31166D-7ECD-4796-B1CE-718E1D104E63.jpeg BF2E46FE-DD9D-47BA-B296-1C2B8DA97688.jpeg 07EC46D9-363F-4B28-9F87-9AA4ED12374D.jpeg F529A976-1A5C-4703-AD8C-506B0B4EC624.jpeg


Fast69Mopar

Senior Member
Joined
May 10, 2019
Posts
1,997
Reaction score
1,706
Location
Texas
Ram Year
2004
Engine
5.7 HEMI
I recently lowered my truck 2/4 with crown suspension coils and the wheels are noticeably closer to the rear of the wheel wells. Parts installed core4x4 track bar with bell tech relocation bracket,core4x4 upper and lower adjustable control arms, ihc no cut brackets, Viking shocks all installed by a shopView attachment 243750 View attachment 243751 View attachment 243752 View attachment 243753
Need to get the truck back on the alignment rack. With the adjustable rear control arms you can pull the axle forward with adjustment$$d9 and then with it being in the alignment rack you can verify that you have the correct thrust angle so the truck doesn't walk sideways in the rear while driving.


Bigskyroadglide

Senior Member
Joined
Nov 9, 2016
Posts
1,295
Reaction score
1,974
Location
Montana, except for work
Ram Year
2014
Engine
Hemi 5.7, supercharged

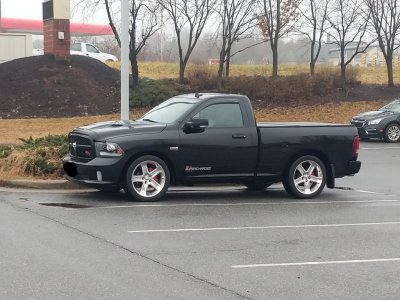

Here's mine, mines identical to yours except I have not gotten my no cut brackets installed.

Make certain the core 4x4 arms are the exact length of the arms taken off. There's difference in the upper and lower core 4x4 arms.

If they are, then I'd check they installed the no cuts correctly


Last edited:
OP
OP
M

M27

Member
Joined
Apr 15, 2014
Posts
39
Reaction score
22
Location
SJ,CA
Ram Year
2016
Engine
Hemi 5.7
Updated pic with wheels centered after adjusting the control arms




Bigskyroadglide

Senior Member
Joined
Nov 9, 2016
Posts
1,295
Reaction score
1,974
Location
Montana, except for work
Ram Year
2014
Engine
Hemi 5.7, supercharged
Here is mine after installation of the no cut brackets in the rear and the alignment. Appreciate feedback it appears similar to yours, although the numbers are 2 decimal places vs 1.


Attachments

  • 20210702_131422.jpg
    116.6 KB · Views: 21
  • 20210619_183717.jpg
    175.2 KB · Views: 18
  • 20210619_183752.jpg
    219.6 KB · Views: 18
Last edited:
  • Like
Reactions: M27
OP
OP
M

M27

Member
Joined
Apr 15, 2014
Posts
39
Reaction score
22
Location
SJ,CA
Ram Year
2016
Engine
Hemi 5.7

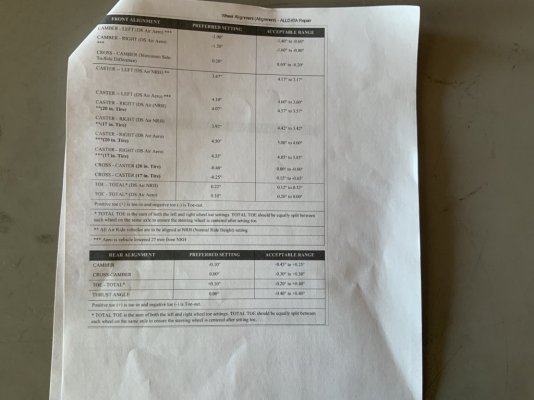

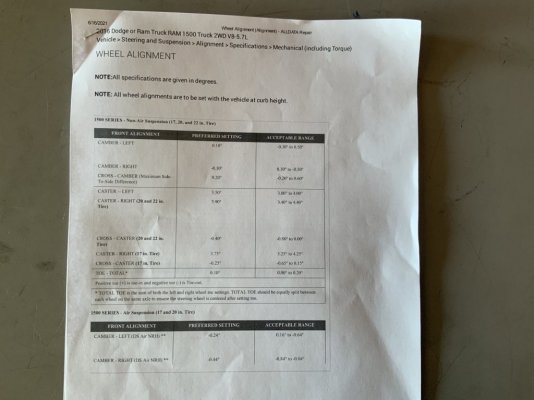

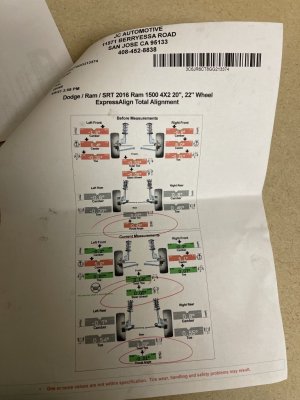

All specs within acceptable range except for caster. Here are the alignment specs from alldataE26F7893-6BE3-4C34-B7F0-A7F036200CB4.jpeg22B3A8DD-5B24-4645-9D83-8BFD25D68DD6.jpeg
