OEM push button start kits

Discussion in 'Audio & Electronics' started by rtm03862iq, Oct 20, 2017.

  1. Jimmy07

    Jimmy07 Senior Member

    Posts:
    693
    Likes Received:
    380
    Joined:
    Feb 23, 2017
    Ram Year:
    2017
    Engine:
    6.4 Hemi
    Were you able to find the terminals for the connector that plugs into the door handle?

  2. skuppy069

    skuppy069 Senior Member

    Posts:
    186
    Likes Received:
    68
    Joined:
    Feb 26, 2017
    Location:
    canada alberta
    Ram Year:
    2018 1500 cc
    Engine:
    hemi 5.7
    No I didn’t . I’m going to just cut the plug off and put a molex connector instead

  3. skuppy069

    skuppy069 Senior Member

    Posts:
    186
    Likes Received:
    68
    Joined:
    Feb 26, 2017
    Location:
    canada alberta
    Ram Year:
    2018 1500 cc
    Engine:
    hemi 5.7
    So here is my harness I built
    8 hours work etc .
    White molex plug for future door Handle
    I’m running the handles and antenna wire together into each front door .
    Then one antenna in the Centre console and on next to the hub




  4. skuppy069

    skuppy069 Senior Member

    Posts:
    186
    Likes Received:
    68
    Joined:
    Feb 26, 2017
    Location:
    canada alberta
    Ram Year:
    2018 1500 cc
    Engine:
    hemi 5.7
    Some more pics
    This the layout kinda Of the truck
    The three plugs go up front of the truck and the other stay at the hub



  5. Cillys

    Cillys Member

    Age:
    50
    Posts:
    72
    Likes Received:
    16
    Joined:
    Dec 30, 2018
    Location:
    Virginia
    Ram Year:
    2017
    Engine:
    6.7
    Ok. To fully understand here what is it all you built again and what yr truck?


    Sent from my iPhone using Tapatalk

  6. skuppy069

    skuppy069 Senior Member

    Posts:
    186
    Likes Received:
    68
    Joined:
    Feb 26, 2017
    Location:
    canada alberta
    Ram Year:
    2018 1500 cc
    Engine:
    hemi 5.7
    And a messy messy work station lol
    I hope this all works in the end
    Will try install hanress into truck thru out the week .
    All my parts in at the dealer so will pick up tomorrow

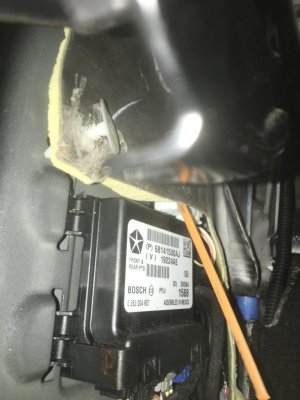

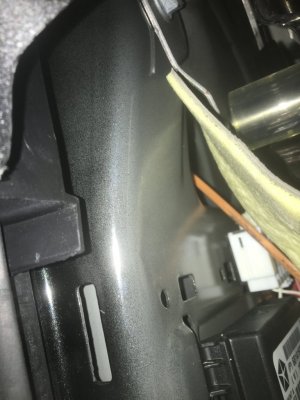

    Will get all antennas etc installed in the truck and wiring next to existing hub
    Then will do the swap in the dealership parking lot Incase i ......up.


  7. skuppy069

    skuppy069 Senior Member

    Posts:
    186
    Likes Received:
    68
    Joined:
    Feb 26, 2017
    Location:
    canada alberta
    Ram Year:
    2018 1500 cc
    Engine:
    hemi 5.7
    My truck Is a 2018 ram 1500
    It’s basically 4 wires to each front door which is two for the antenna and two for the door handle sense
    Then two wires for the rear antenna which stays next to the RF Hub
    Then two wires for the Centre console antenna

    Total of 12 wires .
    Basically one big hanress from the hub and then the once past the doors under the way the harness splits off into three sub harnesses for the three front components

  8. Cillys

    Cillys Member

    Age:
    50
    Posts:
    72
    Likes Received:
    16
    Joined:
    Dec 30, 2018
    Location:
    Virginia
    Ram Year:
    2017
    Engine:
    6.7
    What antennas in the door?


    Sent from my iPhone using Tapatalk

  9. skuppy069

    skuppy069 Senior Member

    Posts:
    186
    Likes Received:
    68
    Joined:
    Feb 26, 2017
    Location:
    canada alberta
    Ram Year:
    2018 1500 cc
    Engine:
    hemi 5.7

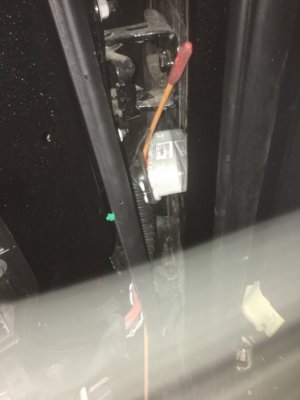

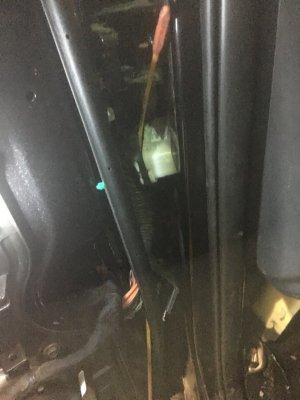

    I plan on just running the wires thru the door boot etc on each front door

  10. skuppy069

    skuppy069 Senior Member

    Posts:
    186
    Likes Received:
    68
    Joined:
    Feb 26, 2017
    Location:
    canada alberta
    Ram Year:
    2018 1500 cc
    Engine:
    hemi 5.7
    Yes the factory puts the antennas in the Rear doors but I don’t want to build 6 sub harnesses so I put my door antennas in the front door as I needed to go there for the door handles etc
