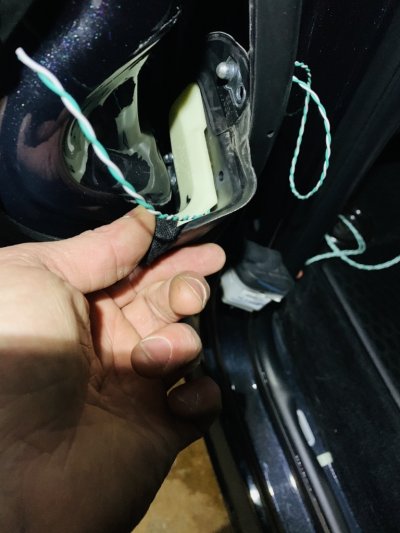

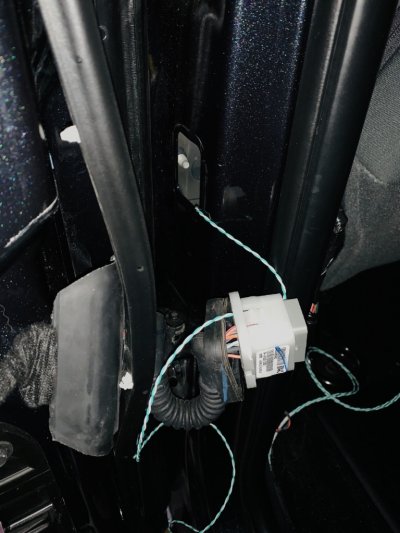

I actually started running my harness yesterday. I’ve got a four door, so I went with the door antennas in the rear doors like factory, but it would’ve been easier if I did it like you have planned, as I don’t think it makes a difference which doors they’re in. The only thing with your harness is, if you’re going straight from the cab through the rubber door boot, you’re gonna have to remove the connectors. It is TIGHT getting just one unshielded twisted pair through that thing!



[Jimmy07]

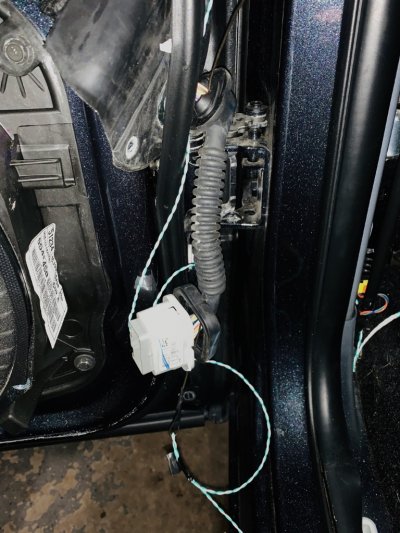

Here’s one with the hard wire running through the boot ready to pull the twisted pair through.



[Cillys]

What antennas are in the door?


Sent from my iPhone using Tapatalk



[Jimmy07]

What antennas are in the door?


Sent from my iPhone using Tapatalk

The proximity antennas that sense the fob as you are walking up to the door to unlock/lock it.



[skuppy069]

Here’s one with the hard wire running through the boot ready to pull the twisted pair through.

Looking good .
Yeah I’m going run my cables over the white door connector but beneath the rubber grommet .
Did that on my last truck and was okay .
Your way is defiantly more safe as far as protecting the wires etc .
I just wanted to have my hanress all prebuilt .
So i can just install and plug and play .



[Jimmy07]

Hey @skuppy069, do you have a link to the connectors you’re using for the handles? I’m doing the same as you and cutting the one off the handles and getting a mating set, but wanted to make sure they’ll fit through the square hole in the door. Those look like they’ll fit.



[skuppy069]

Hey @skuppy069, do you have a link to the connectors you’re using for the handles? I’m doing the same as you and cutting the one off the handles and getting a mating set, but wanted to make sure they’ll fit through the square hole in the door. Those look like they’ll fit.

I just went my local electronic store and grabbed a small package
It has 3 male connector and pins
And then the same for the female side .
I kinda destroyed the packaging
I will go online and see if I can find the package number
Super cheap as well



[Cillys]

The proximity antennas that sense the fob as you are walking up to the door to unlock/lock it.

You mean the ones that autotrchelecyronic days to mount one in rear the other in front or are these additional antennas

What's their part #


Sent from my iPhone using Tapatalk



[skuppy069]

Here is the molex plug kit i used 0.62
https://www.digikey.com/catalog/en/partgroup/standard-062-and-standard-093-series/7475



[skuppy069]

You mean the ones that autotrchelecyronic days to mount one in rear the other in front or are these additional antennas

What's their part #


Sent from my iPhone using Tapatalk

There are four antennas one in the cente front,one in the rear by the hub and one each rear door if doing it like the factory has is laid out
I will put my part numbers etc to tomorrow when i pick my stuff up from the dealer .



I got new hub
New power switch aka push button switch
Two new proximity fobs with remote start on it
Two antennas for the doors
Proximity
Two antennas for the front and rear of the cab keyless go I bilieve



[Jimmy07]

Here is the molex plug kit i used 0.62
https://www.digikey.com/catalog/en/partgroup/standard-062-and-standard-093-series/7475

Thanks. I’ll go with these also.



[skuppy069]

Thanks. I’ll go with these also.

Your welcome



[skuppy069]

I actually started running my harness yesterday. I’ve got a four door, so I went with the door antennas in the rear doors like , but it would’ve been easier if I did it like you have planned, as I don’t think it makes a difference which doors they’re in. The only thing with your harness is, if you’re going straight from the cab through the rubber door boot, you’re gonna have to remove the connectors. It is TIGHT getting just one unshielded twisted pair through that thing!

I know it is going to suck getting those connectors thru that boot .
My have to de-pin and then get cable thru and then assemble connector again .



[Jimmy07]

I know it is going to suck getting those connectors thru that boot .
My have to de-pin and then get cable thru and then assemble connector again .

Yeah, probably, but shouldn’t be a big deal. I thought about what you said about going over the white door connector and boot, but I don’t think it’s possible. There’s holes in the white connector to pass the harness through, but there’s no way of avoiding going through the boot. You’ll definitely see what I’m saying when you get your hands on it.



[Jimmy07]

You mean the ones that autotrchelecyronic days to mount one in rear the other in front or are these additional antennas

What's their part #


Sent from my iPhone using Tapatalk

Here’s the part numbers:
RF Hub- 68319680AD
Front and rear antennas- 56046958AA
Door antennas (2)- 56046957AA
Door handles- https://parts.allmoparparts.com/aut...m/6-4l-v8-gas-engine/body-cat/front-door-scat and search for your body color (with or without chrome) with keyless.
Key Fob- not sure for OEM, but I got this one

https://www.amazon.com/QualityKeyle...56046956AG&dpPl=1&dpID=41cdb+au5RL&ref=plSrch

The RF Hub I have listed is for 2017-2018 Rams. Skuppy069’s hub will be different because he has a 2016.



[skuppy069]

Yeah, probably, but shouldn’t be a big deal. I thought about what you said about going over the white door connector and boot, but I don’t think it’s possible. There’s holes in the white connector to pass the harness through, but there’s no way of avoiding going through the boot. You’ll definitely see what I’m saying when you get your hands on it.

Yeah I know exactly what you mean .My last 1500 I installed the auto tech kit in .
They use a fat cable and I got it thru the door .
On you tube they have a video showing the install .
I’m running my front cables the same way .
I would like to pin in new wires on both inline sides but too much work for me etc .
I will run the harness soon and get it done .



[skuppy069]

Here’s the part numbers:
RF Hub- 68319680AD
Front and rear antennas- 56046958AA
Door antennas (2)- 56046957AA
Door handles- https://parts.allmoparparts.com/aut...m/6-4l-v8-gas-engine/body-cat/front-door-scat and search for your body color (with or without chrome) with keyless.
Key Fob- not sure for OEM, but I got this one

https://www.amazon.com/QualityKeylessPlus-Replacement-2013-2018-56046956AC-56046956AG/dp/B07H425YRC/ref=mp_s_a_1_1?ie=UTF8&qid=1547435792&sr=8-1&pi=AC_SX236_SY340_QL65&keywords=QualityKeylessPlus+Replacement+Remote+for+select+2013-2018+Dodge+RAM+Keyless+Entry+Smart+Key+Remotes+FCC+ID+GQ4-54T+Part+Number+56046956AC+/+56046956AG&dpPl=1&dpID=41cdb+au5RL&ref=plSrch

The RF Hub I have listed is for 2017-2018 Rams. Skuppy069’s hub will be different because he has a 2016.

My truck is a 18.
I will compare my part numbers tomorrow .



[Jimmy07]

Yeah I know exactly what you mean .My last 1500 I installed the auto tech kit in .
They use a fat cable and I got it thru the door .
On you tube they have a video showing the install .
I’m running my front cables the same way .
I would like to pin in new wires on both inline sides but too much work for me etc .
I will run the harness soon and get it done .

LOL. I was gonna do that, and I even have the terminals for it, but once I started running the harness, I said SCREW THAT!



[Jimmy07]

My truck is a 18.
I will compare my part numbers tomorrow .

Gotcha. I was going off your signature and missed that you said 2018 in a previous post



[Cillys]

Ok this is all great info. Mines a my17 ... be interesting to see what the my18 part #'s are
