Okay thank you .
Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.
Yup. I probably came across that before, too, but my eyes were probably wobbling from looking for all the different connectors and matching terminals. The handles will be the last thing I do, since I dread taking the door apart again (already swapped handles once). I’ll probably just bite the bullet and get the 10 minimum.
I might be interested in some of the extras, or the actual harnesses if you wanted to make more.Yup. I probably came across that before, too, but my eyes were probably wobbling from looking for all the different connectors and matching terminals. The handles will be the last thing I do, since I dread taking the door apart again (already swapped handles once). I’ll probably just bite the bullet and get the 10 minimum.
Your last pic is the reason that hub is not keyless enter and go capable. No Provision for the C2 connector.Ha wait guys. I started the thread in hopes of combining all the knowledge gathered over the last few years into a single thread. Lol. I like some harnesses as well [emoji1744][emoji3603]

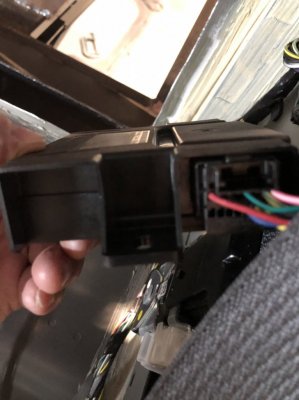

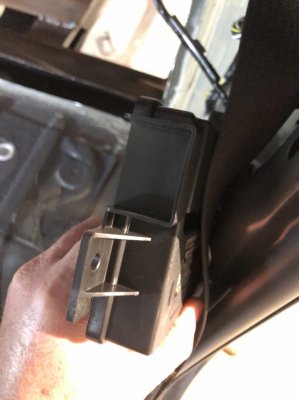

Btw took these pics of the rfhub today outta my18 5500
View attachment 151502
View attachment 151503
View attachment 151504
Sent from my iPhone using Tapatalk

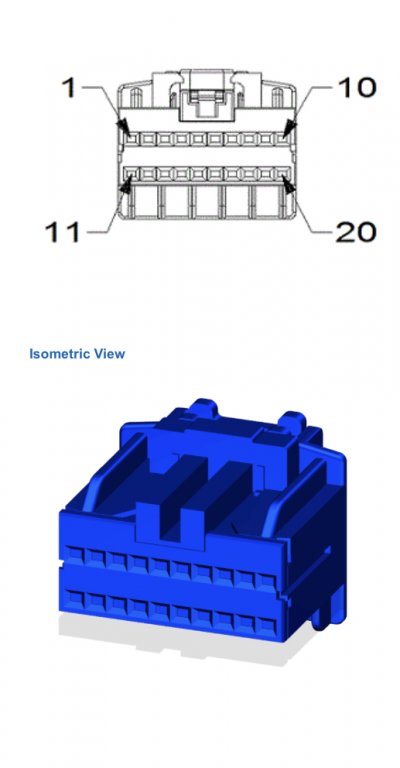

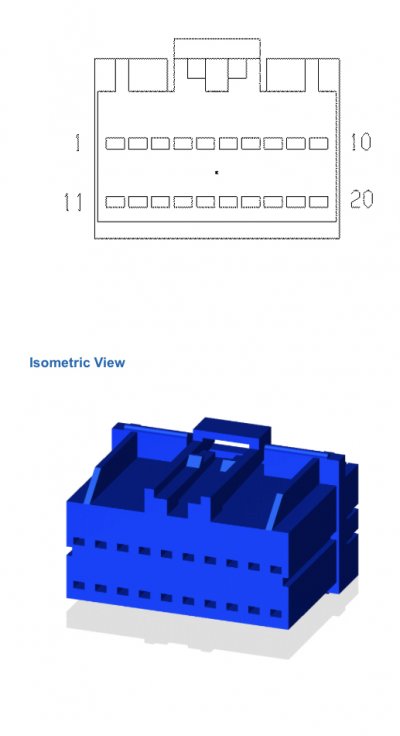

The connector changes from 2013-2015 and 2016-2018. Here is 13-15:

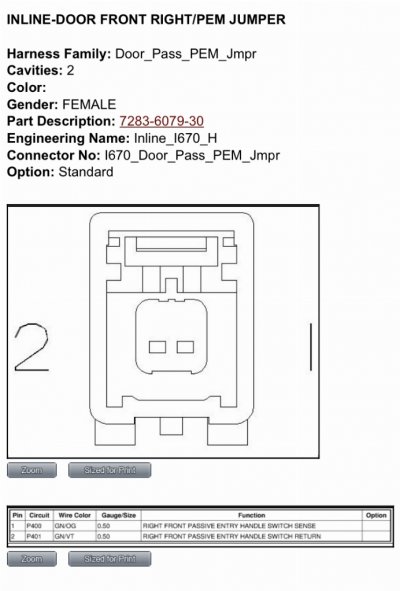

Here is 16-18:
I can only find the one for 2013-2015, but I THINK it will still work and lock for the 16-18s https://www.mouser.com/ProductDetail/TE-Connectivity-AMP/174910-2?qs=rraqY75DdlpSAFG/UhRalg==
This is the part number for 2016-2018: 2272006-1 (TE Connectivity?)
Were you able to find the terminals for the connector that plugs into the door handle?I’ve started building my harness .
I’m going to build it for the complete setup .
Have most parts on order except the door handles .
Want to make sure the system will work with alpha first before I purchase the door handles
Should have the harness built by the end of the weekend .
Will get hanress in place the following weekend i hope .

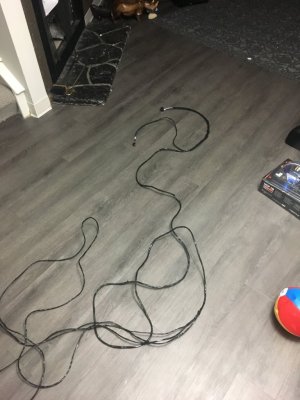

Some more pics

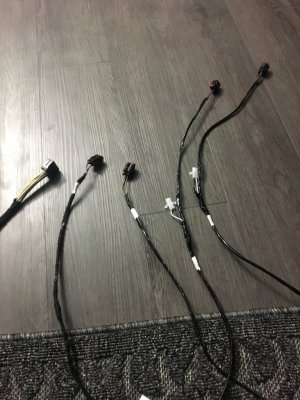

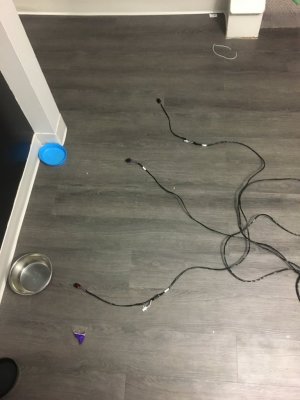

This the layout kinda Of the truck

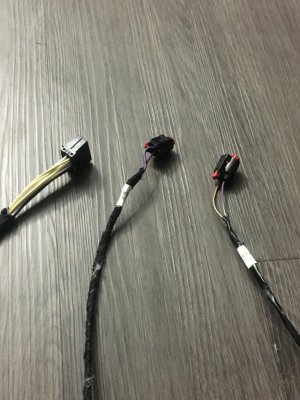

The three plugs go up front of the truck and the other stay at the hub
View attachment 152148
View attachment 152150
My truck Is a 2018 ram 1500Ok. To fully understand here what is it all you built again and what yr truck?
Sent from my iPhone using Tapatalk
My truck Is a 2018 ram 1500
It’s basically 4 wires to each front door which is two for the antenna and two for the door handle sense
Then two wires for the rear antenna which stays next to the RF Hub
Then two wires for the Centre console antenna
Total of 12 wires .
Basically one big hanress from the hub and then the once past the doors under the way the harness splits off into three sub harnesses for the three front components
