Using cargo camera inputs for front camera?

[Rdd383]

I already enabled the cargo cam on my 2014 Ram 2500, so if I use an aftermarket camera with the RCA type plug, I can just connect the wires on the radio in #24 and #25 on the back of the radio plug?

OR, I put an RCA type pigtail from #24&25 on the back of the radio. What triggers the camera to come on?

Thanks



[kad]

I already enabled the cargo cam on my 2014 Ram 2500, so if I use an aftermarket camera with the RCA type plug, I can just connect the wires on the radio in #24 and #25 on the back of the radio plug?

OR, I put an RCA type pigtail from #24&25 on the back of the radio. What triggers the camera to come on?

Thanks

An aftermarket camera won't have the bus connection to tell it to turn on or off so you just need to connect it's power input to a source that's only live when the truck is on.

-K



[Rdd383]

Thanks, does it matter which wire goes to 24 and 25 on the radio plug?

Am I oversimplifying this?



[kad]

Thanks, does it matter which wire goes to 24 and 25 on the radio plug?

Am I oversimplifying this?

Yes, 24 is the signal and 25 is the ground.

-K



[Tim7139]

Did a little testing today....
I have asked Benny if he can get me the part number and pinouts on the camera out of the 2019. If it's inexpensive enough and appears to be usable from an electrical standpoint I may pick one up for testing.

-K

I'm curious about the Jeep Gladiator camera with integrated washer.



[kad]

I'm curious about the Jeep Gladiator camera with integrated washer.

I hadn't heard about that but then again, I'm not really following the Gladiator. Looking just now, it looks pretty neat. I suspect it will be obscenely expensive but definitely something to have Benny at @AllMoparParts.com get us a price on when Gladiator parts become available.

-K



[Tim7139]

Indeed. The target market should lead them to showing up in junk yards sooner rather than later and swap might just be enough of a PITA to make is a low value resale part.



[Ramit355]

On the 2019 with all the cams I still do have a Camera that you can see in the bed of the truck which would be really nice maybe mounted in the 3rd break light.



[Trail Wagon]

Alright.... Having an issue. Have the pigtail, connected in the 24 & 25 pins as labeled.
All I get is a "camera system unavailable" message and a black screen. I've tried 3 different cameras and 3 different video cables. Any ideas what my issue might be? Reverse cam works as it should.


Edit: Figured it out, wasn't getting enough power, didn't have it on a good source apparently.



[UrWifesFavorite]

Yes, 24 is the signal and 25 is the ground.

-K

Only the Signal “In” and the cameras ground? No Signal return, in regards to using after market camera... My pigtail has the 2 wires that’s signal in and return and then 2 separate wires for the power and ground...



[Mike Swallow]

Thanks for the guide kad


Hi all,


I want to add a front camera to my 2019 1500 classic. From what I've read, I plan to skip the lockpick and connect a front- facing camera by enabling the cargo input on the 8.4 factory headunit using alfaobd and odblink.


I'll need a rca pigtail harness from Mpgrimm2 and a security bypass harness from DeereGuy?


I would like a camera that isn't mirrored and can turn guide lines on or off. I think I'd prefer the guidelines but dont know for sure. I'm open to opinions here. The ZSMJ reviewed by @kad looks promising but the thread indicated it wouldn't mount well on the ram. I'd be really happy for more camera suggestions. Wide field of view is important too so iam aware of where my front bumper is.



Questions:

1. Mainly. Is the above correct?

2. Is there anything I'm missing? Any other parts required?

3. What power source does the new camera get connected to?

4. Does this all actually work with the 2019 1500 classic?


I'd really love to hear about front cameras that people are really happy with.



[Mike Swallow]

After adding up all the costs and factoring in shipping and USD-> CAD, I ended up going the customtronix route with Coolint camera . Will take some pics when everything arrives.



[MarineBSP]

Hi Mike -

Did you finish this installation ? Happy, so-so, or disappointed ? I would like to do the same thing, and wondering how you find the camera quality / view angle / night-day performance.



[MarineBSP]

. . . and what was your all-in cost ?? Thanks !



[Kwhump]

I’m going to add a front cam to my 2016 Ram. What type of pins do I need and where do I get them, for the 24 & 25 pin location..
thanks..

edit: I found the pin part number.. its:
TE Connectivity 638551-3



[Scottieone12]

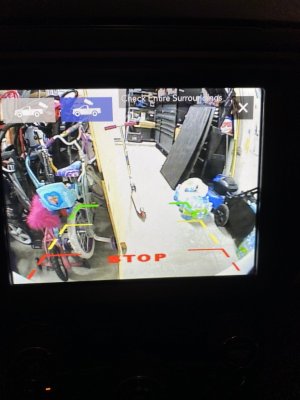

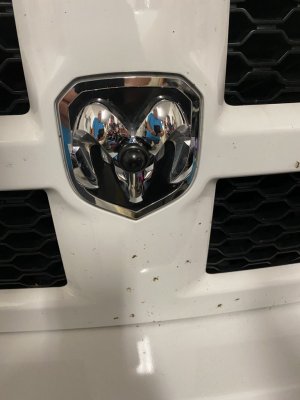

Thanks for all the advice from you guys, I have my front cam installed and working.
I used the coolint camera and the rca harness from @Mpgrimm2 and you can see from the photos it works very good



[Mike Swallow]

Hi Mike -

Did you finish this installation ? Happy, so-so, or disappointed ? I would like to do the same thing, and wondering how you find the camera quality / view angle / night-day performance.

I was very happy with the result. Check my threads



[DAVID MCLENDON]

GhostRam,
I am about to add the 8.4 Nav to my 17 2500. I assume that there is already a cargo cam option in the radio. I see that the camera that you had a link to has the RCA connectors. How do I connect that RCA to the radio so I can toggle to the (new) front camera?



[Mike Swallow]

GhostRam,
I am about to add the 8.4 Nav to my 17 2500. I assume that there is already a cargo cam option in the radio. I see that the camera that you had a link to has the RCA connectors. How do I connect that RCA to the radio so I can toggle to the (new) front camera?

The cargo cam option should be supported. You may need a custom pigtail to connect the camera to the stereo. If the truck doesnt already have a cargo cam, it may not be programmed to support it. I'm not super handy but Customtronix would make this all very simple for you.



[Scottieone12]

@DAVID MCLENDON reach out to @Mpgrimm2, he makes the jumper/harness with the RCA plug to hook up your camera and then use AlphaODB to change the settings for the Cargo Cam to activate your front camera and your in business.
