How To: Full Mopar Skid Plate Install

[IRSmart]

Haha! Yes that would've been easier... I should've looked under the truck before I bought it and told the wife... "It doesn't have any skid plates, so the only solution is to get a power wagon!"

Sent from my Pixel 2 XL using Tapatalk

See, now you’re using your noodle!



[Tracy in IL]

Nice, but I just bought my truck with them installed



[jjjefferson]

My 2015 Big Horn came with the transfer case + front axle skids installed.

Protection Group
$150
Tow Hooks
Transfer Case Skid Plate
Front Suspension Skid Plate



[wobly]

Great writeup!
I have a 2015 Outdoorsman that comes with all the skid plates already installed, for those that were asking.



[Tankerpilot01]

My 2015 Big Horn came with the transfer case + front axle skids installed.

Protection Group
$150
Tow Hooks
Transfer Case Skid Plate
Front Suspension Skid Plate

I need to get under my truck...just too cold lately. I made reference about to my build sheet and description above...but mine doesn’t say anything about front suspension skid plate.

I went to a mopar site and looked up parts for my 2018 3500 4wd and it only lists one skid plate....so I wonder if the 3500 can only have the transfer skid plate and the others don’t fit due to difference in the 3500 suspension?

It is also very likely I just wasn’t looking in the correct place....I would just like to add any underbody protection I can...if it’s available.


Sent from my iPhone using Tapatalk



[bryce88]

Great writeup!
I have a 2015 Outdoorsman that comes with all the skid plates already installed, for those that were asking.

Yeah I'm pretty sure the outdoorsman is the only one that the skid plates come standard unless the protection group is added. At least for 4th gen 1500s


Sent from my Pixel 2 XL using Tapatalk



[Kukailimoku]

wow, this write-up could be in a Chiltons or Haynes book!
Thanks!



[Steam Hogger]

Important information for Ecodiesel owners. Our trucks use a different transfer case skid plate then the OP list. The Eco's do not need the add on cross member. As there is already a extra one to hold the DEF tank.

EcoDiesels owners use skid plate #82210014AC.

Sent from my SM-G950U using Tapatalk



[bryce88]

Important information for Ecodiesel owners. Our trucks use a different transfer case skid plate then the OP list. The Eco's do not need the add on cross member. As there is already a extra one to hold the DEF tank.

EcoDiesels owners use skid plate #82210014AC.

Sent from my SM-G950U using Tapatalk

Hey thanks for mentioning this. I'll edit the original post for those in the future that have the Ecodiesel.

Sent from my Pixel 2 XL using Tapatalk



[Ken226]

I just ordered a set of skid plates for my 2013 sport.

I gotta protect that 44-45 transfer case i just swapped it.

Thanks for the writeup and part numbers.

I could have just bought a new power wagon as was previously suggested, but after checking under the cushions of my couch for loose change, all i could afford was the skid plates.



[Ken226]

I crawled under 2013 to check the mounting points.

It doesn't have any of the hex holes for the 4 power steering skidplate rivnuts. It looks like ill have to drill the holes and maybe dremel the hex shapes to install the rivnuts.

Also, the 4 holes near the body mounts, for the crossmember aren't threaded. Ill have to tap them. Everything else seems to match the pics in the writeup.

Anyone done this install in a 2013 yet?



[bryce88]

I crawled under 2013 to check the mounting points.

It doesn't have any of the hex holes for the 4 power steering skidplate rivnuts. It looks like ill have to drill the holes and maybe dremel the hex shapes to install the rivnuts.

Also, the 4 holes near the body mounts, for the crossmember aren't threaded. Ill have to tap them. Everything else seems to match the pics in the writeup.

Anyone done this install in a 2013 yet?

So if you don't have the hex holes, I'd drill holes and use standard round M8 rivnuts. And the other holes aren't threaded, the screws are self tapping, you just torque them down and they cut their own threads.

Sent from my Pixel 2 XL using Tapatalk



[Ken226]

So if you don't have the hex holes, I'd drill holes and use standard round M8 rivnuts. And the other holes aren't threaded, the screws are self tapping, you just torque them down and they cut their own threads.

Sent from my Pixel 2 XL using Tapatalk

Ok, thanks for the advice. Thatll make it much easier.



[Ken226]

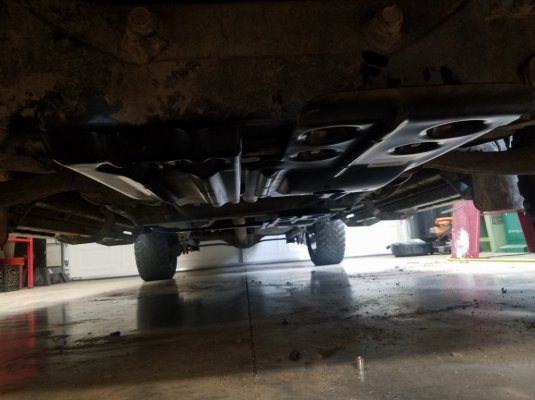

I got the skidplates installed.

Everything was super easy except the power steering skidplate. My 2013 didnt have the hex holes for rivnuts, so i had to drill and install aftermarket rivnuts.

The aftermarket rivnuts didnt want to rivet in with enough strength, and kept rotating when i tried to torque the screws to 13 ft lbs. I ended up spot welding around the outside of the rivnuts to prevent them from rotating.

It worked! Its all done!

The underside of my truck is muddy as hell from some off-road driving a few days sgo.

So much for the extra 5$ i paid at the car wash for the "underbody wash".



[bryce88]

I got the skidplates installed.

Everything was super easy except the power steering skidplate. My 2013 didnt have the hex holes for rivnuts, so i had to drill and install aftermarket rivnuts.

The aftermarket rivnuts didnt want to rivet in with enough strength, and kept rotating when i tried to torque the screws to 13 ft lbs. I ended up spot welding around the outside of the rivnuts to prevent them from rotating.

It worked! Its all done!

The underside of my truck is muddy as hell from some off-road driving a few days sgo.

So much for the extra 5$ i paid at the car wash for the "underbody wash".

Nice! Yeah rivnuts can be a little finicky. Glad you got it all worked out though!

Sent from my Pixel 2 XL using Tapatalk



[Truck Fun]

Always wondered why the two front plates don't extend the same distance forward past the cross-member.



[bryce88]

Always wondered why the two front plates don't extend the same distance forward past the cross-member.

I think it's because they use the same plate on a lot of different vehicles. It's not really designed for just our trucks, that's why there are multiple holes etc.

Sent from my Pixel 2 XL using Tapatalk



[Ken226]

I think it's because they use the same plate on a lot of different vehicles. It's not really designed for just our trucks, that's why there are multiple holes etc.

Sent from my Pixel 2 XL using Tapatalk

Yea, its silly

Even more silly, using 2 plates when 1 could have been made to cover both spots.

Im sure it was done for manufacturing economics. The front diff plate is the same part as the transfer case plate.

The steering plate is probably the same part# as the main skidplate on a Fiat 500 or the hood on one of Guidos other car models.



[Badger 13]

Is there any issues with changing the oil, or getting access to the already difficult to reach filter with the "front axle" skid plate installed ? I have installed the transfer case skid plate, and that was very easy.

Thanks



[bryce88]

Is there any issues with changing the oil, or getting access to the already difficult to reach filter with the "front axle" skid plate installed ? I have installed the transfer case skid plate, and that was very easy.

Thanks

No, it doesn't impede access at all, the skid plates stop short of being in the way whether you access the oil filter from the front or from the back.

Sent from my Pixel 2 XL using Tapatalk
