Ram 1500 Front and Rear Limiting Straps

[Wild one]

Its all 3/16 plate, But yeah Ill throw gussets there as well! It didnt even cross my mind for some reason ( Well im full retard ) ..lol..

I'd make the gussets so they go almost out to your strap mounting hole.The longer the gusset,the better the load carrying ability it'll have



[pacofortacos]

The top mounting point will be the first point to take the load,and will be the weak point if there is any weak points

I agree the top mounting is the weak point, since the force is downward you could support it from below as well as above.
I was thinking it was the same on the bottom as it is on the top.
I agree on extending the support almost to the bolt hole.



[DILLIGAF]

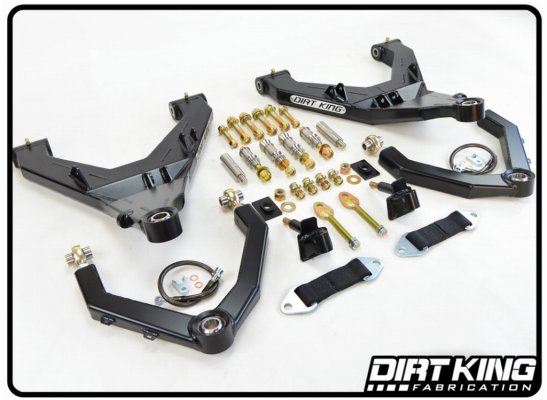

Look how small Dirt Kings limit straps bracket are. Pretty sure mine should hold up now.

No Gussets and 1 bolt. So the downforce cant be as bad as I thought.

I will cut the top tab off and add my bolt to the inside instead.



[crazykid1994]

I like how they use the existing hole in the frame for the dirt king setup



[DILLIGAF]

I like how they use the existing hole in the frame for the dirt king setup

My frame dosent have those 2 holes. Not sure when they started, is it for Air suspension ?



[crazykid1994]

My frame dosent have those 2 holes. Not sure when they started, is it for Air suspension ?

I think it’s actually to the rear of the coilover not the front for theirs. I have an oval hole behind the coilover on my truck. In the front I have 2 hex shaped holes in the frame for the rivnuts that look like it’s for the air suspension.



[DILLIGAF]

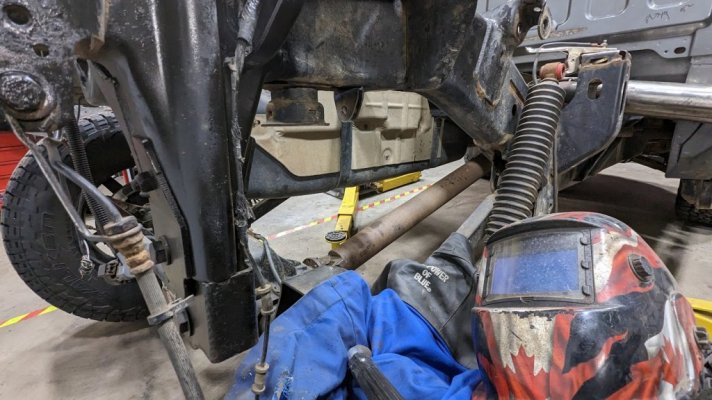

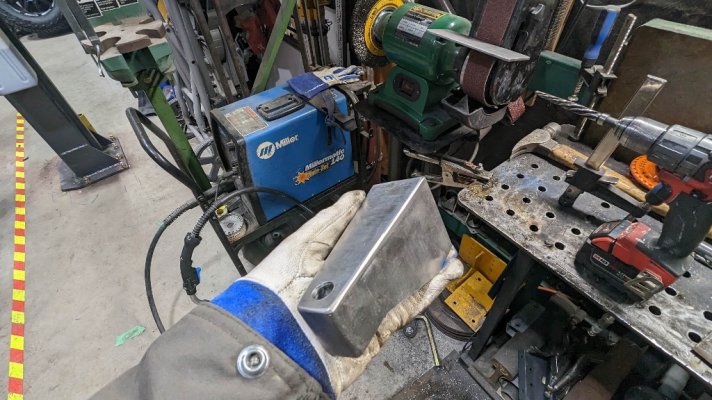

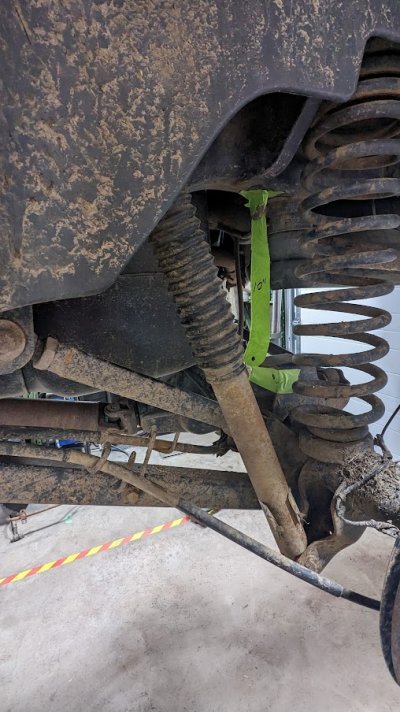

Welded the bracing in frame today and finalized my bracket design. Not bad for basic home tools.

limit strap bracket

youtube.com



[Jwithing]

Thats some fine craftsmanship. But the real questions is... Do you see a big bad cowboy when you look in the mirror?



[DILLIGAF]

Do you see a big bad cowboy when you look in the mirror?

Nah I just look like every other retired service member... lol...



[DILLIGAF]

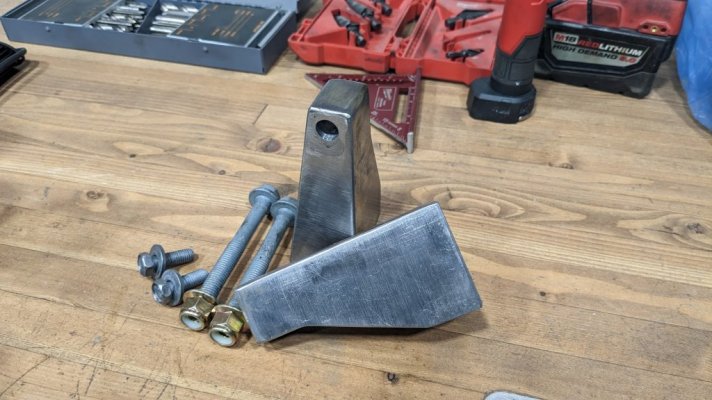

Got my brackets done today. Found some 10.9 Factory bolts in my parts bin, And figured out what I need for the rear limit straps.

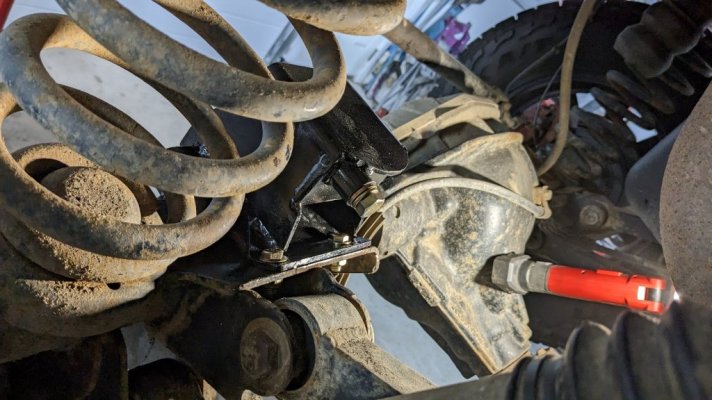

Rear will be way easier. Just shear tabs, Weld a plate on the bump stop plate and 10" straps. Also limiting 1 " of down travel.

limit straps

youtube.com



[DILLIGAF]

Rear Brackets done. https://youtu.be/vf7vLFH4CMg



[DILLIGAF]

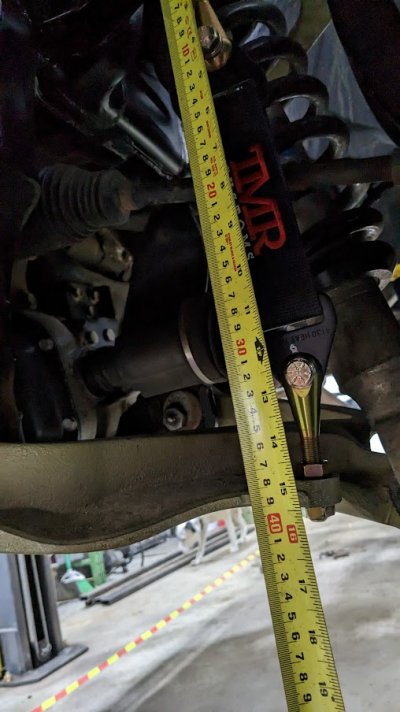

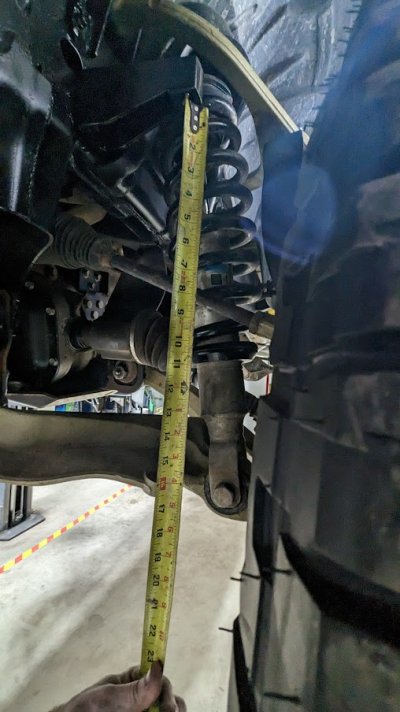

Front done. took 8 deg out of the axle with 1" less drop

TMR limit Straps Ram 1500

Enjoy the videos and music you love, upload original content, and share it all with friends, family, and the world on YouTube.

youtu.be



[crazykid1994]

Front done. took 8 deg out of the axle with 1" less drop

TMR limit Straps Ram 1500

Enjoy the videos and music you love, upload original content, and share it all with friends, family, and the world on YouTube.

youtu.be

View attachment 512147
View attachment 512148
View attachment 512149
View attachment 512150
View attachment 512151
View attachment 512152

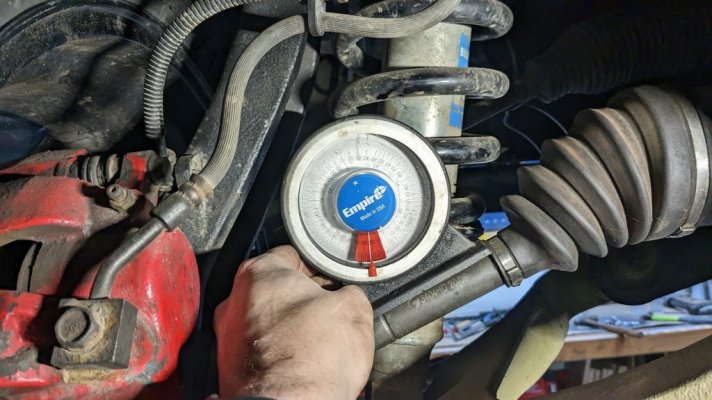

I need to measure my CV angles but that looks like it may still be more than mine at full drop



[DILLIGAF]

I need to measure my CV angles but that looks like it may still be more than mine at full drop

New Gen 4 Cvs this time instead of Gen 3 witch are shorter.

These one seem to bind just a bit still, but they are also destroyed... lol...

Ill raise it until I get no binding when I get my new ones.



[DILLIGAF]

Good news. replacement Cardone HDs just shipped.

This is the last time I buy CVs online. Shipping them back for warrenty ended up costing me more then buying them local.

I will praise Parts Avatar for not making me buy the same ones. They could of easily done that.



[DILLIGAF]

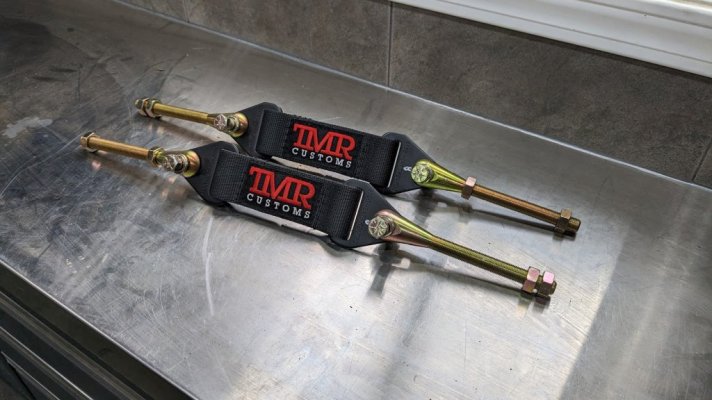

Got some goodies in the mail today.



[DILLIGAF]

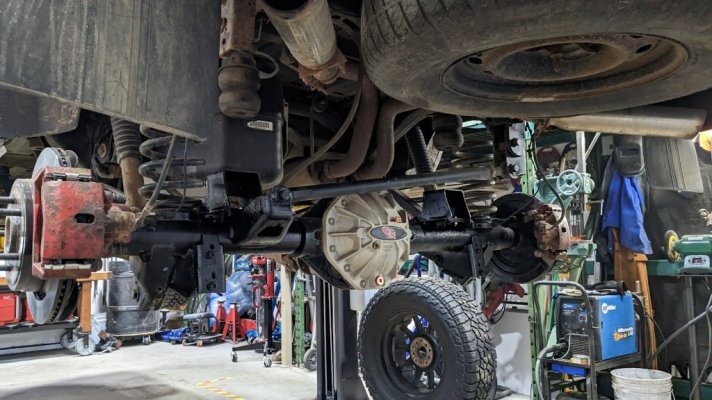

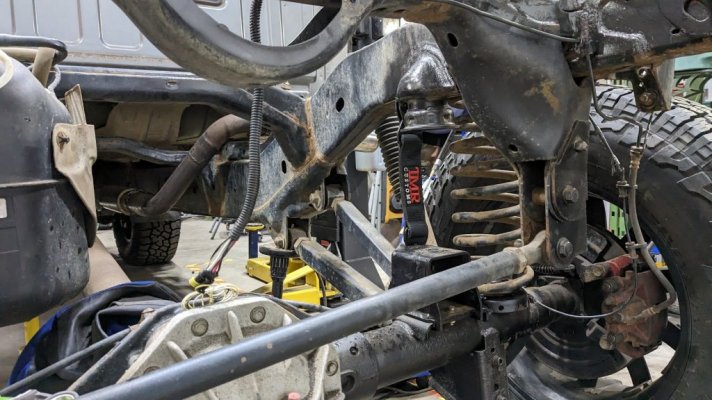

The rears are finally done. Pretty sad you wont see them because of the timbrens... lol...



[olyelr]

The rears are finally done. Pretty sad you wont see them because of the timbrens... lol...



View attachment 513061
View attachment 513063

Are those clayton brand control arms for jeeps? Ive never seen square ones from any other manufacturer.



[DILLIGAF]

Are those clayton brand control arms for jeeps? Ive never seen square ones from any other manufacturer.

Yes sir. All my rear end stuff is Clayton



[DILLIGAF]

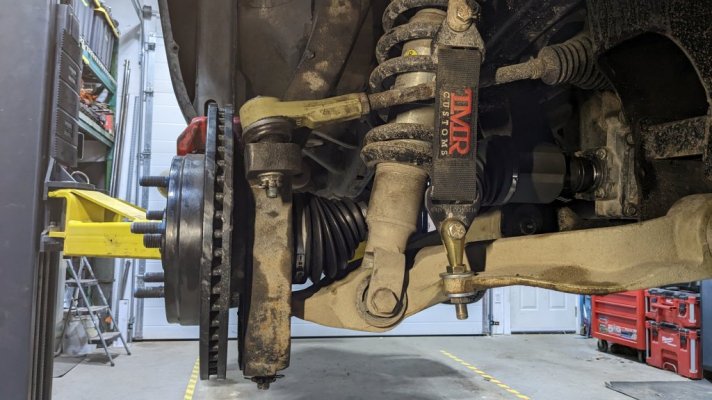

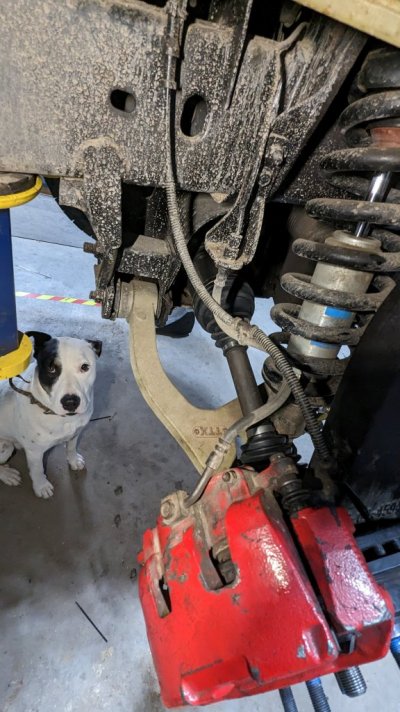

Finally had time to install the new Cardone 66-3740HD

Cranked the limit straps another 1/2"

Only 18 Deg at full drop now.

As a bonus, The DNA test of my rescue dog came in .
