Alarm Shock Sensor

[DJ Mark]

So it looks like the schematic posted all the doors are bused together for the courtesy lights and tap into the one on driver side kick panel.

*Where did you get the constant 12v from inside or outside the firewall and
*also the switched 12v with key. Did you go to the fuse box under the hood.

thanks

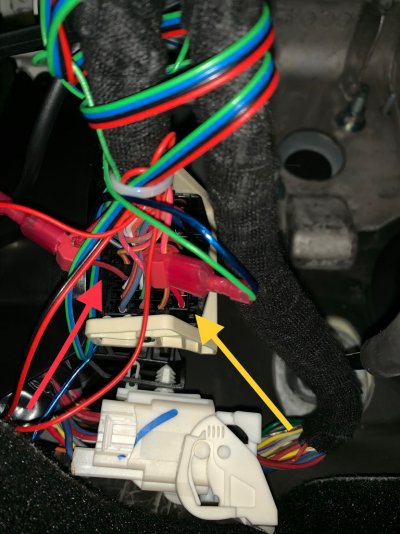

The red arrow is my constant power, the yellow is with the key..





Sent from my iPhone using Tapatalk



[dss56]

What plug is that you tapped in to



[DJ Mark]

What plug is that you tapped in to

Sent from my iPhone using Tapatalk



[dss56]

Ok thanks I just ordered the sensor of ebay.

and i will have to see if I have the same plug as mine is a 2013 and yours is a 2018.

thanks alot for all the info and help.

Bob in Boston



[cuda81]

i figured out where to hook up trigger wire on my truck ...i put it on pin 9 of connector 6 on the

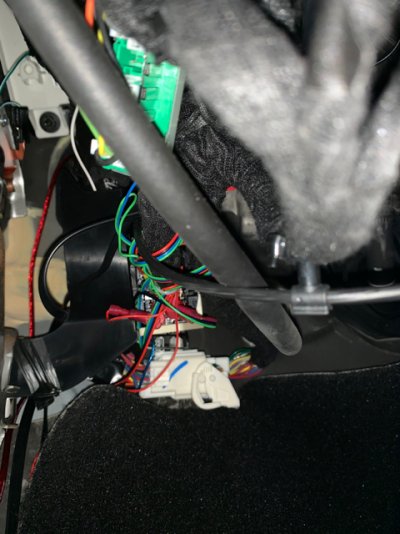

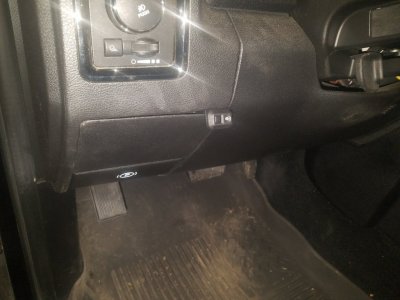

bcm (violet wire) which is a neg drivers door ajar signal i just put a back probe since it way up in dash for now...i put the units behind a panel above the p brake lever... theres 2 holes in dash metal frame there already ,,that way if i want to adjust the sensetivity its easier,,,i didnt want to drill a hole so i just put the light on that panel..for now



[DJ Mark]

i figured out where to hook up trigger wire on my truck ...i put it on pin 9 of connector 6 on the
bcm (violet wire) which is a neg drivers door ajar signal i just put a back probe since it way up in View attachment 160433 View attachment 160434 View attachment 160435 dash for now...i put the units behind a panel above the p brake lever... theres 2 holes in dash metal frame there already ,,that way if i want to adjust the sensetivity its easier,,,i didnt want to drill a hole so i just put the light on that panel..for now

Nicely Done! I highly recommend attaching the shock sensor itself to your steering column (use zip-ties).. It needs to be fastened down to something to work well and prevent false alarms. If it's not- temperature fluctuations will cause the wires to soften up and the unit to slip causing an alarm..

I had a so called "professional" installer tie one to a wiring harness many years ago and it false alarmed so bad it made me want to bash the f-n windshield out! Naturally it would happen at about 3 am when it was in the garage and I was dead asleep!



[dss56]

i figured out where to hook up trigger wire on my truck ...i put it on pin 9 of connector 6 on the
bcm (violet wire) which is a neg drivers door ajar signal i just put a back probe since it way up in View attachment 160433 View attachment 160434 View attachment 160435 dash for now...i put the units behind a panel above the p brake lever... theres 2 holes in dash metal frame there already ,,that way if i want to adjust the sensetivity its easier,,,i didnt want to drill a hole so i just put the light on that panel..for now

Where did u get the wire splices?



[DJ Mark]

Where did u get the wire splices?

Nilight 120 Pcs/60 Pairs Quick Splice Wire Terminals T-Tap Self-stripping with Nylon Fully Insulated Male Quick Disconnects Kit, 2 Years Warranty https://www.amazon.com/dp/B07CP987BN/ref=cm_sw_r_cp_apip_lECXQTdChuYnR


Sent from my iPhone using Tapatalk



[dss56]

Truck is a 2013 ram bighorn


my connector in 2013 ram

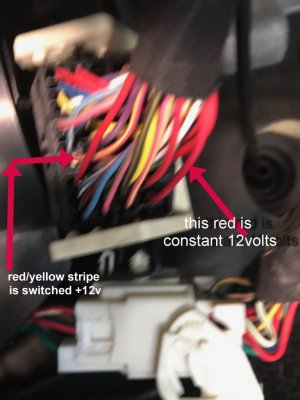

DJ Mark and Cuda1 I was going to install the alarm sensor today but seems to be a problem with the pictures posted the picture that has the red and yellow arrow seem to be wrong. I put volt meter on and the yellow is constant and the red is switched 12 volts.

The violet wire which you say is a negative trigger I could not find a violet wire. I tried some of the wires as you say its a negative trigger.

I sat in truck with alarm on and touched the wire that looks like what you have attached to and did not trigger the lights or alarm.

So I stopped trying to install until I find the correct trigger door light wire.

Any help appreciated



[19 Limited Steve]

Hey Everyone!

Are you aware that your factory ram alarm will only sound when the door is opened after it's been appropriately locked? You can literally smash out every window in it and the alarm will never sound unless the door is opened!

The factory alarm on my 2018 is integrated with SiriusXM Guardian so I get a notification on my phone if the alarm is triggered plus I really didn't want to go the full aftermarket route!

SOLUTION:

I purchased this little shock sensor add on from amazon (below), it comes with pretty easy instructions and essentially you wire it to 12v power, ground, a circuit that goes on/off with the key and then the door light activator circuit.

I strapped it onto the steering column under the dash and adjusted it so that I wouldn't get false alarms but if the truck took a decent hit it would trigger. Essentially the way it works is that when it's triggered it opens the interior light circuit making the factory alarm think the door has been opened- which triggers the horn & SiriusXM Guardian notification!

Super easy & CHEAP mod that works well!

https://www.amazon.com/gp/product/B007VHG3BA/ref=oh_aui_search_asin_title?ie=UTF8&psc=1

Let me know if you have questions- happy to help!

2019 1500 Limited. Do you know of something that will work with the factory running boards? When I try and tie into the drivers door light switch it causes my running board to continue to cycle trying to retract. And no go on the hood pin switch either.



[DRam4x4]

Did this method actually work ?

I have a 2019 ram limited 4x4 (what color wire do I use) ?

Scamatics anyone, the link don't work please.

Thanks
