Finally took some pictures of the equipment for you guys.. I don't feel like my front stage is quite loud enough so I have ordered replacement speaker amps and going to go with a different midrange if I can find one that can fit in stock location without modification.

Current equipment list:

  • Focal ES 165 K2 Front Stage (Woofer + Tweeter)
  • DD EX2.75 Midrange (replacing)
  • DD M1d Sub Amplifier
  • DD d4.90 speaker amplifiers. Replacing these; have two DD SS4b's on order.
  • Mosconi 6to8v8 Processor
  • Maestro DSR1 (Factory amplifier replacement)
  • 4 x DD 506 6.5" Subwoofers
  • XSPower XP750 Supplemental AGM Battery

Amp Layout:



Battery + Wiring Distribution/Fusing:

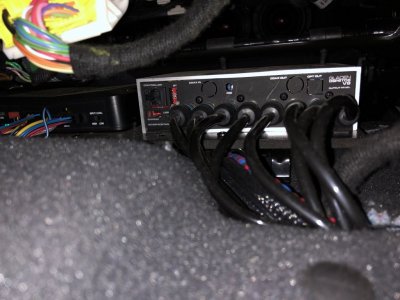

Underneath the driver's seat where I have the Maestro DSR1 and Mosconi DSP.

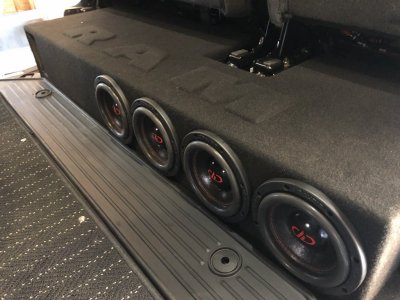

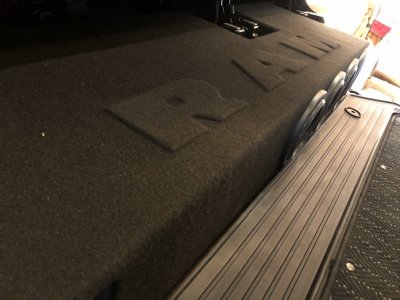

Sub Box from both drivers and passengers side perspectives:

I didn't take a picture with the seat down but even with the seats in their back positions the subs are about ~2" inside of the seat, nothing sticks out.

(Still have a grill being built and designed as once piece to cover the subs)





I don't have any speakers pictured because they are in factory locations and look factory; no modifications there at all.


Ziezee

Junior Member
Joined
Jul 11, 2018
Posts
24
Reaction score
10
Location
Washington
Ram Year
2019
Engine
5.7
Looks great! Do you have the Maestro running in Universal mode? I went to flash my second unit today (they decided the first was bad) and they've yanked the 2019 custom options it looks like. I know I was having tons of problems with it.

OP
OP
Doxmia

Doxmia

Senior Member
Joined
Jul 1, 2018
Posts
122
Reaction score
93
Location
Canada
Ram Year
2019
Engine
Hemi 5.7
No it is not running in Universal. There's issues for sure that need to be worked out but they'll likely get it resolved asap; they've sold quite a few units for this truck already and there is pretty high demand.


Ziezee

Junior Member
Joined
Jul 11, 2018
Posts
24
Reaction score
10
Location
Washington
Ram Year
2019
Engine
5.7
I sure hope they fix the bugs soon...

Where did you route the 12 volt line through the firewall? Care to share a pic?


Bcovish

Senior Member
Joined
May 14, 2018
Posts
112
Reaction score
74
Location
Bastrop tx
Ram Year
2019
Engine
5.7
Looks great. Did you have to fiberglass the sub box with the humps under the back seat?? How do the subs sound?


Kfield

Senior Member
Joined
Jul 10, 2018
Posts
203
Reaction score
91
Location
Johnson City
Ram Year
2019
Engine
Hemi 5.7
No it is not running in Universal. There's issues for sure that need to be worked out but they'll likely get it resolved asap; they've sold quite a few units for this truck already and there is pretty high demand.

Any update to the DSR1? Have any issues been resolved?


Sent from my iPhone using Tapatalk

OP
OP
Doxmia

Doxmia

Senior Member
Joined
Jul 1, 2018
Posts
122
Reaction score
93
Location
Canada
Ram Year
2019
Engine
Hemi 5.7
Any update to the DSR1? Have any issues been resolved?


Sent from my iPhone using Tapatalk

Nope, nothing has been resolved. If your an iPhone user, I'd 100% stay away for now. It apparently works okay with Android Auto.

BLIS, FWC, Front/Rear sensors are still basically useless if you have any music playing at all.

OP
OP
Doxmia

Doxmia

Senior Member
Joined
Jul 1, 2018
Posts
122
Reaction score
93
Location
Canada
Ram Year
2019
Engine
Hemi 5.7
Looks great. Did you have to fiberglass the sub box with the humps under the back seat?? How do the subs sound?

Nope wood was able to cut it, just a lot of measurements and tight cuts to make it work. Subs sound great.


Ziezee

Junior Member
Joined
Jul 11, 2018
Posts
24
Reaction score
10
Location
Washington
Ram Year
2019
Engine
5.7
No progress on my DSR1 either. I get sound for 3 seconds, then nothing. At least engineers from both Maestro and Rockford are working together on the issue now. My truck is all wired up with new speaker wire and wire for the amps. As soon as I finish making the speaker mounts, it's all gonna be held up by the DSR1... I'm keeping the factory gear intact until I know it's working. Or until I decide to bail on the DSR1.


Kfield

Senior Member
Joined
Jul 10, 2018
Posts
203
Reaction score
91
Location
Johnson City
Ram Year
2019
Engine
Hemi 5.7
Nope, nothing has been resolved. If your an iPhone user, I'd 100% stay away for now. It apparently works okay with Android Auto.

BLIS, FWC, Front/Rear sensors are still basically useless if you have any music playing at all.


Well then that puts me in a predicament, I am an IPhone user.

I have the “lowly” Bighorn, all those sensors annoy me, and did not want leather. So hope something gets straight. That DSR1 is species great for the price, if it works lol


Sent from my iPhone using Tapatalk


Kfield

Senior Member
Joined
Jul 10, 2018
Posts
203
Reaction score
91
Location
Johnson City
Ram Year
2019
Engine
Hemi 5.7
No progress on my DSR1 either. I get sound for 3 seconds, then nothing. At least engineers from both Maestro and Rockford are working together on the issue now. My truck is all wired up with new speaker wire and wire for the amps. As soon as I finish making the speaker mounts, it's all gonna be held up by the DSR1... I'm keeping the factory gear intact until I know it's working. Or until I decide to bail on the DSR1.

I have seen yours on 12voltdata, I’m lurking on that thread as well.


Sent from my iPhone using Tapatalk

OP
OP
Doxmia

Doxmia

Senior Member
Joined
Jul 1, 2018
Posts
122
Reaction score
93
Location
Canada
Ram Year
2019
Engine
Hemi 5.7
I have seen yours on 12voltdata, I’m lurking on that thread as well.


Sent from my iPhone using Tapatalk

Yeah, not sure why they're ignoring that thread. They seemed to respond to everyone other than me, heh.


Kfield

Senior Member
Joined
Jul 10, 2018
Posts
203
Reaction score
91
Location
Johnson City
Ram Year
2019
Engine
Hemi 5.7
Yeah, not sure why they're ignoring that thread. They seemed to respond to everyone other than me, heh.

Do we have any other alternative? I was really hoping the Rockford unit would be the ticket. I am all Mac now and the only PC I have is for tuning my Harleys, and struggles. Don’t want to add a PC expense just for my DSP.


Sent from my iPhone using Tapatalk

OP
OP
Doxmia

Doxmia

Senior Member
Joined
Jul 1, 2018
Posts
122
Reaction score
93
Location
Canada
Ram Year
2019
Engine
Hemi 5.7
You can easilyt
Do we have any other alternative? I was really hoping the Rockford unit would be the ticket. I am all Mac now and the only PC I have is for tuning my Harleys, and struggles. Don’t want to add a PC expense just for my DSP.


Sent from my iPhone using Tapatalk

You can easily boot Windows on your Mac or even run it in a free Virtual Machine (like virtualbox). But no, there's no other direct integration option at this time.


Kfield

Senior Member
Joined
Jul 10, 2018
Posts
203
Reaction score
91
Location
Johnson City
Ram Year
2019
Engine
Hemi 5.7
You can easilyt


You can easily boot Windows on your Mac or even run it in a free Virtual Machine (like virtualbox). But no, there's no other direct integration option at this time.

Yeah I know I can boot camp, it looked like a simple approach.

A couple ???

How do you like the tweets in the headliner?

How do the 4 6.5s sound compared to the SL7s? I was planning on two SL7 10 or 12, which ever I could fit. If the 6.5 are adequate I will look at that route.



Sent from my iPhone using Tapatalk


adrianp89

Senior Member
Joined
Sep 3, 2015
Posts
3,175
Reaction score
1,273
Location
Tampa Bay, FL
Ram Year
2019
Engine
Hemi 5.7
Why don't you guys run an independent source for the time being? It could be months before something comes out. DSR1 and AP4 will be the only (realistic) options. If the DSR1 isn't working, I doubt the AP4 is yet - and I have confirmed the BCI does not work either... so really doubtful on AP4.


AngryRams

Senior Member
Military
Joined
Apr 25, 2018
Posts
627
Reaction score
206
Location
Phoenix
Ram Year
2015
Engine
Hemi 5.7
I bet this thing beats the doors off that truck

Sent from my SM-N950U using Tapatalk


Ziezee

Junior Member
Joined
Jul 11, 2018
Posts
24
Reaction score
10
Location
Washington
Ram Year
2019
Engine
5.7
My rig is sitting with new speaker wire hanging free in the door, waiting for replacement speakers. An amp in the back ready to go to work. But I'm keeping my factory amp in place until it's working with either the PAC or the DSR1. Will be an easy final step when it is ready... swap factory amp, replace factory speakers, and plug in the RCAs. I hope that day isn't too far off....

I'd replace the factory speakers now but I'm guessing ohm difference and crossover points just wouldn't be matched well enough for this little amp. Those of you with the Alpine systems prob would have better luck. I'm rock bottom on the stereo build...

I don't want to run an independent or run the DSR1 in Universal. Navigation, Satellite radio, System messages, Car Play, etc... all too important to me. Sucks though I have so much money sitting in there doing nothing.
